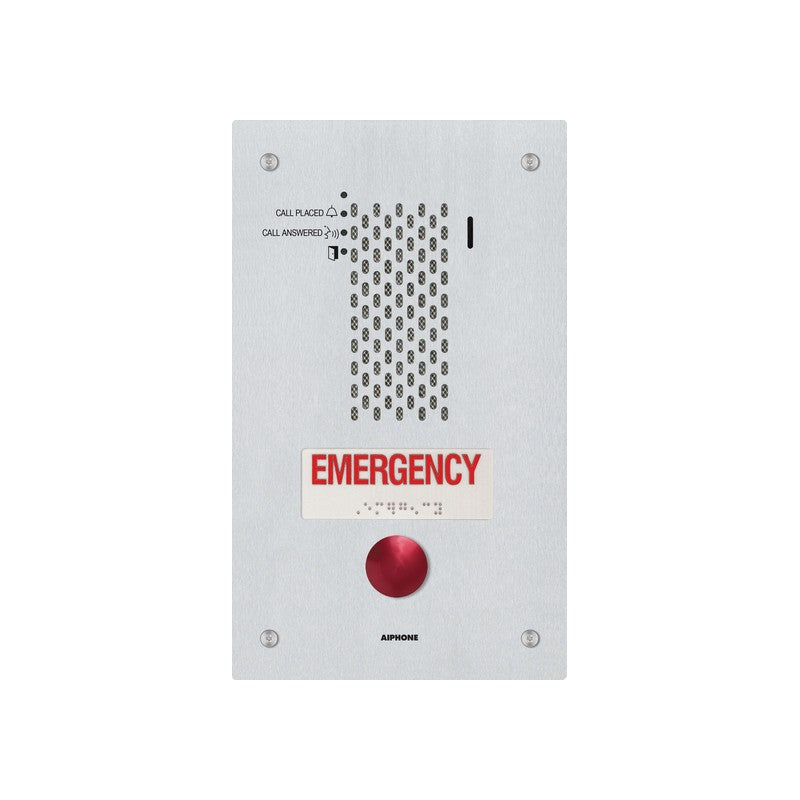

Ix Series IP Intercom 1 Button Audio Door Station Silver Commercial Mechanical Button Stainless Steel Ip65 Ik07 Lock & Auxiliary Output Alarm Input Sub Door Station Up To 32gb Micro SD Card 24vdc/48v POE Switch
SKU: APHIXSSARA
$1,083.21
The Ix Series IP Intercom 1 Button Audio Door Station Silver Commercial Mechanical Button Stainless Steel Ip65 Ik07 Lock & Auxiliary Output Alarm Input Sub Door Station Up To 32gb Micro SD Card 24vdc/48v POE Switch is a rugged audio entry point engineered for commercial security environments. This unit features a stainless steel construction with IP65 and IK07 ratings, ensuring durability against dust, water, and physical impact in outdoor or high-traffic areas.
Key Features
- Constructed from stainless steel with a silver finish and a single commercial mechanical button
- Rated IP65 for dust and water resistance and IK07 for impact protection
- Supports surface or recessed mounting configurations, supplied with a flush mount box
- Includes auxiliary output and alarm input connections for integration with access control systems
- Powered via 24VDC or 48V PoE switch compatibility
- Features up to 32GB Micro SD card storage capacity
- Dimensions: 297H x 78W x 63D (mm)
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Series | IX SERIES |
| Technology | IP |
| Device Type | AUDIO ONLY DOOR STATION |
| Colour | SILVER |
| Solution | COMMERCIAL |
| Display Size | None |
| Display/Button Type | MECHANICAL BUTTON |
| Material | STAINLESS STEEL |
| Mounting | RECESSED MOUNT , SURFACE MOUNT |
| Ip Rating | IP65 |
| Ik Rating | IK07 |
| Output | LOCK & AUXILIARY OUTPUT |
| Input | ALARM INPUT |
| Features 1 | SUB DOOR STATION |
| Mounting Box | COMES WITH FLUSH MOUNT BOX |
| Max Sd Card Supported | UP TO 32GB MICRO SD CARD |
| Power | POE(48V) , 24VDC |
