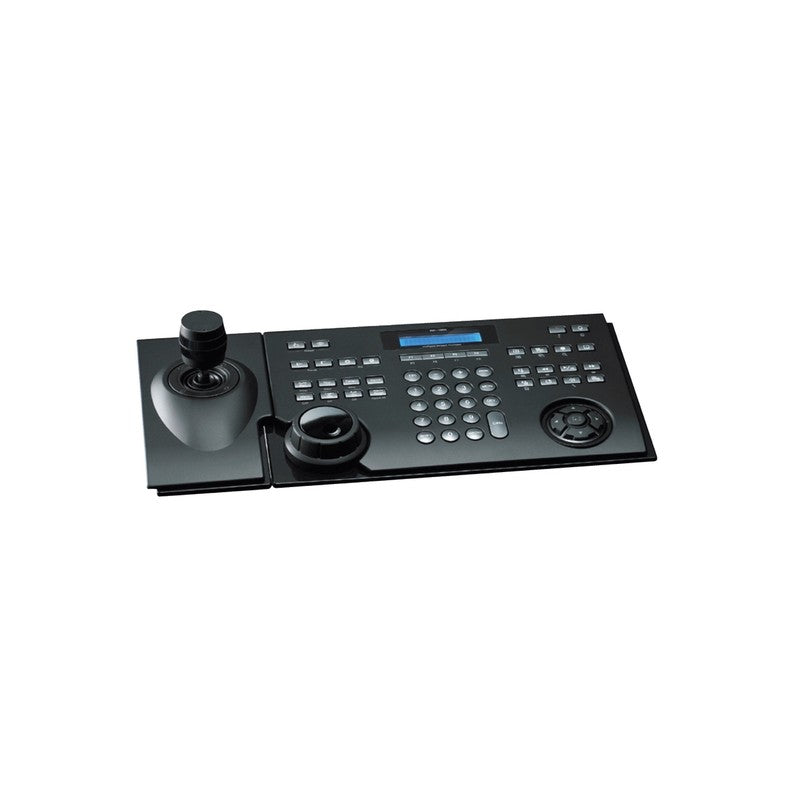

Hikvision Idis Nk-1200 CCTV Network Keyboard
SKU: NK1200
$1,167.45
The Hikvision Idis Nk-1200 CCTV Network Keyboard is a control interface designed for the management of IP cameras and network video recorders. It features a 3-axis joystick for precise pan, tilt, and zoom operations and supports direct communication with IDIS DirectIP™ devices without additional hardware.
Key Features
- 3-axis joystick for seamless pan, tilt, and zoom camera control
- 10/100/1000 Ethernet (RJ45) interface with PoE IEEE802.3AF support
- 2 x RS485 (Terminal Block) communication interfaces
- Supports over 70 PTZ protocols including IDIS, PANASONIC, PELCO, and SAMSUNG
- 2-line LCD display for system status and navigation
- 1 x USB 2.0 and 1 x USB 3.0 ports for configuration and software upgrades
- 3.5mm audio input and output connectors
- Compact dimensions of 376.9mm x 95mm x 177.6mm with a unit weight of 1.1kg
Technical Specifications
| Communication | |
| Interface | 2 x RS485(Terminal Block), 10/100/1000 Ethernet(RJ45, PoE IEEE802.3AF) |
| Baud Rate | 300 bps ~ 115,200bps |
| Supports protocols | Over 70 sorts of PTZ protocol(IDIS, PANASONIC, PELCO, SAMSUNG, etc.) |
| Supports Devices | IP Camera, NVR, IDIS solution Suite |
| Display | LCD(2 Line) |
| USB | 1 x USB2.0, 1 x USB3.0 |
| Audio in/out | 1(3.5mm) / 1( 3.5mm) |
| configuration | Joystick + Main Control Board |
| S/W Upgrade | USB, Network |
| SETUP Program | IDIS Discovery |
| General | |
| Dimension(W x H x D) | 376.9mm x 95mm x 177.6mm (15.0″ x 3.7″ x 7.0″) |
| Unit Weight(Kg) | 1.1kg (2.43lb) |
| Operating Temperature | 0°C ~ 40°C (’32℉ ~ 104℉) |
| Power Input | DC 48V, 1A, PoE(IEEE 802.3af class 0) |
| Approvals | FCC, CE, KC |
