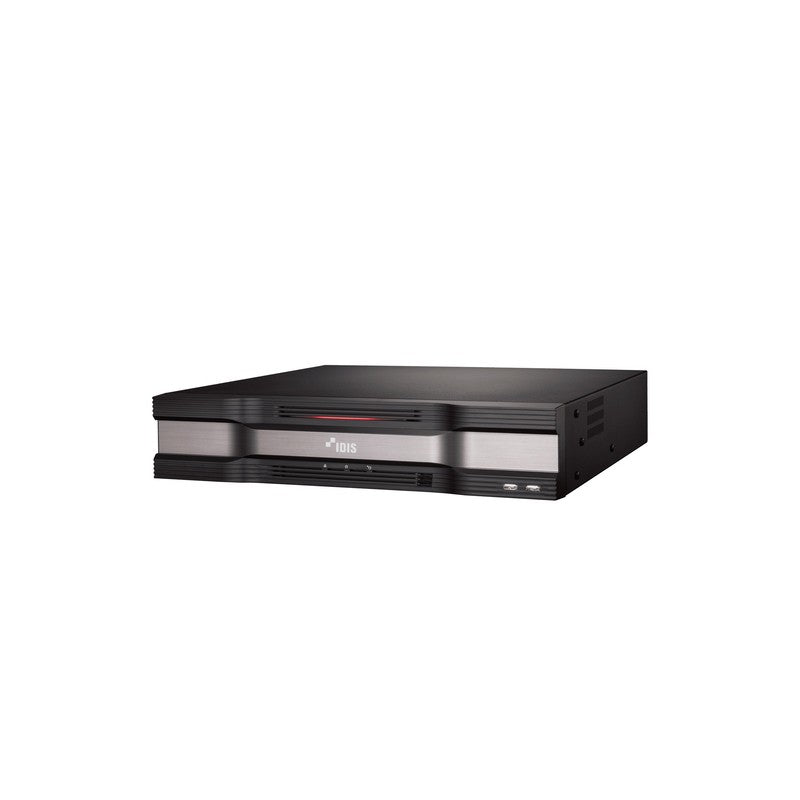

Idis Dr-6516p Directip 6500 Series H.265 4K Recorder, Ndaa Compliant
SKU: DR6516P2TB
$3,874.83
The IDIS DR-6516P DirectIP 6500 Series H.265 4K Recorder is a 16-channel network video recorder engineered for high-density surveillance environments. It supports up to 320Mbps of incoming network throughput and utilizes H.265 compression to optimize storage efficiency while maintaining ultra-high-definition 4K video quality.
Key Features
- Supports 16 IP camera channels with a maximum incoming throughput of 320Mbps
- Utilizes H.265 and H.264 video compression to reduce bandwidth and storage requirements
- Features dual HDMI outputs supporting display resolutions up to 3840×2160 (4K)
- Offers a maximum recording throughput of 180Mbps at 480ips for UHD resolution
- Compatible with DirectIP, AXIS, PANASONIC, and ONVIF-compliant IP cameras
- Includes NDAA compliance and advanced data protection features such as RAID 1 and failover recording
- Enables remote monitoring and management via IDIS Solution Suite and DirectIP mobile applications
Technical Specifications
| Video | |
| Video Inputs | 16 IP Channels |
| Max. Incoming Throughput | 320Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 2 HDMI |
| Display Resolution | HDMI : 3840×2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | Yes |
| Recording | |
| Max. Throughput | 180Mbps, 480ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 16ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 6, eSATA x 4, RAID 1 Supported |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available.For the most recent information, please check here |
| Network | |
| Client Connection | Gigabit Ethernet (Client) x1 |
| Video In Connection | Gigabit Ethernet(IP Camera) x16 + Gigabit Ethernet(Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
| PSE Power | PoE (IEEE 802.3at Class 4) Supported 16 Ports, 120W |
| Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local (NVR) : 1 RCA / 1RCA + 2HDMI IP Camera :16 / 16 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm Reset In | Yes |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | 100-240V~, 50/60Hz, 3.0-1.5A, 250W |
| Approval | FCC, UL, CE, CB |
| Mechanical | |
| Unit Dimensions (W x H x D) | 430mm x 88mm x 420mm (16.9″ x 3.5″ x 16.5″) |
| Unit Weight | 6.75kg (14.88lb) (with 1HDD) |
