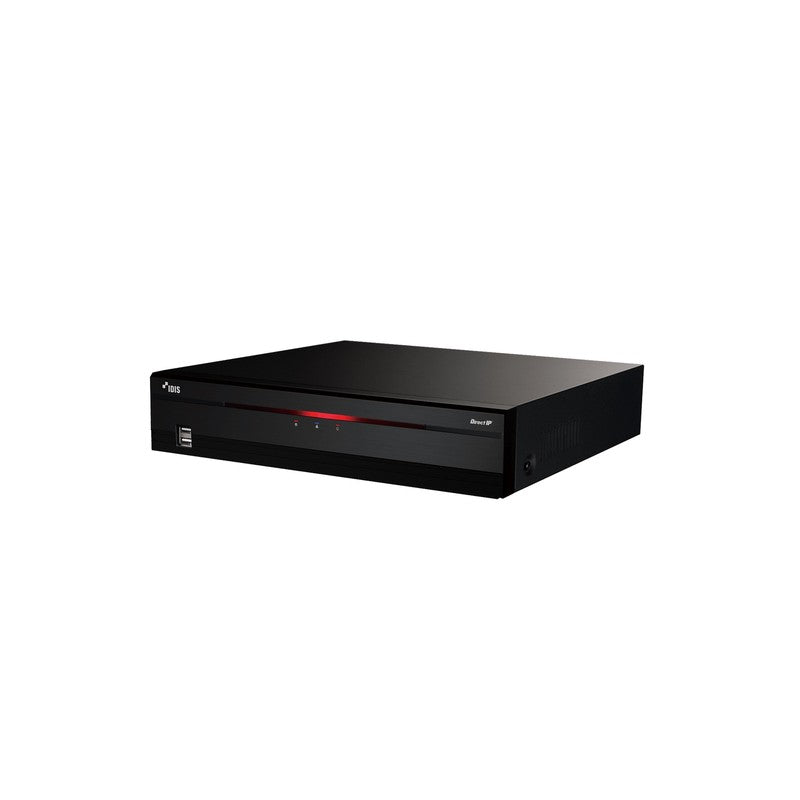

Idis Dr-2516p-a Directip™ 2500 Series H.265 4K Recorder, Ndaa Compliant
SKU: DR2516PA
$1,612.05
The IDIS DR-2516P-A DirectIP™ 2500 Series H.265 4K Recorder is a 16-channel network video recorder engineered for high-resolution surveillance with NDAA compliance. It integrates a built-in 16-port PoE switch to streamline network infrastructure while supporting H.265 compression for efficient bandwidth and storage management.
Key Features
- 16 IP channels with a maximum incoming throughput of 320Mbps and recording throughput of 180Mbps
- Supports H.265 and H.264 video compression with recording resolutions up to 12MP
- Includes a built-in 16-port PoE switch to reduce the need for additional networking equipment
- Internal storage capacity up to 12TB with eSATA support for external expansion
- Video outputs via 1 HDMI and 1 VGA, supporting display resolutions up to 3840×2160
- Compatible with DirectIP™, AXIS, PANASONIC, and ONVIF™ cameras
- NDAA compliant with advanced security functions including tamper and motion detection
- Centralized management via IDIS Center VMS and remote access through the IDIS Mobile app
Technical Specifications
| Video | |
| Video Inputs | 16 IP channels |
| Max. Incoming Throughput | 320Mbps |
| Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840×2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | – |
| Recording | |
| Max. Throughput | 180Mbps, 480ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 16ch synchronous playback 8ch 4K playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 2, eSATA x 1 |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. |
| Network | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video In Connection | Fast Ethernet(IP Camera) x8 + Gigabit Ethernet (Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| PSE Power | PoE(IEEE 802.3at class 4) supported 8 ports, 100W |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local(NVR) : – / 1RCA + 1HDMI IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm Reset In | – |
| Serial Interface | RS232 (Terminal Block) |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | NVR: 12V=, 2.2A, 26.4W PSE: 54V=, 1.85A, 100W MAX |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 300mm x 62mm x 231 mm (11.8″ x 2.4″ x 9.1″) |
| Unit Weight | 2.3kg (5.1lb) (with 1 HDD) |
