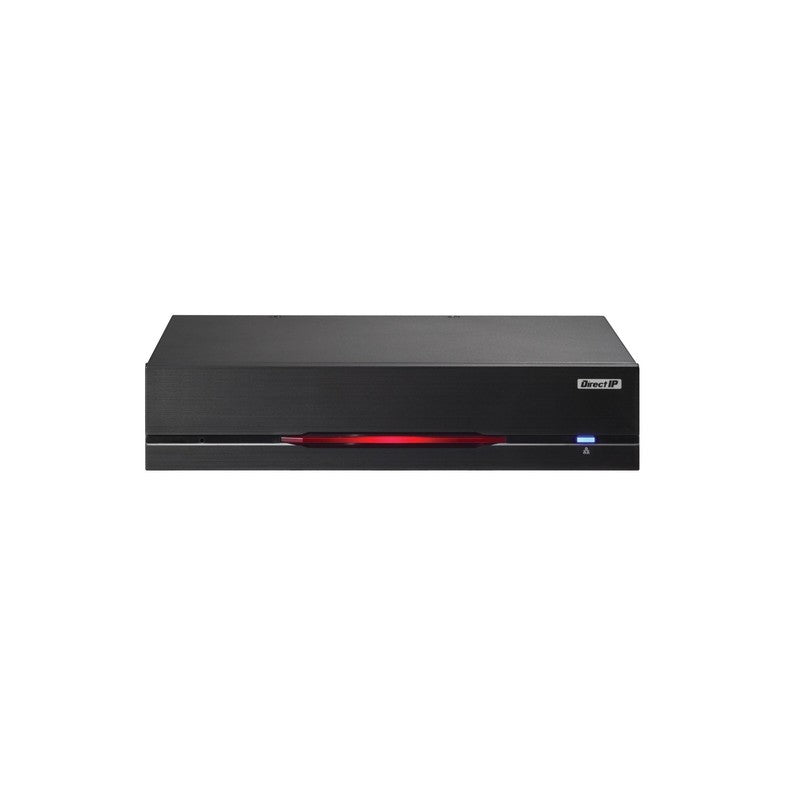

Idis Dp-he1201 Hdmi/vga Video Encoder, Ndaa Compliant
SKU: DPHE1201
$901.86
The IDIS DP-HE1201 HDMI/VGA Video Encoder is a networked device designed to convert analog and digital video signals into IP streams for surveillance applications. It supports high-resolution inputs up to 4K and utilizes NDAA-compliant hardware to ensure secure and reliable video transmission.
Key Features
- Accepts 1 HDMI and 1 VGA input, supporting resolutions up to 3840 x 2160 at 30fps.
- Utilizes H.265, H.264 (MP), and M-JPEG compression standards for efficient video storage and streaming.
- Features an RJ45 10/100BASE-T Ethernet port for network connectivity and includes 1 USB Type B port for remote mouse and keyboard control.
- Provides 1 audio input and 1 audio output for synchronized audio transmission.
- Supports quadruple streaming and advanced event triggers including motion detection, audio detection, tampering, and trip zones.
- NDAA compliant, ensuring adherence to strict security standards for government and enterprise environments.
Technical Specifications
| Video | |
| Video Inputs | 1 HDMI, 1 VGA |
| Max. Resolution | 3840 x 2160 |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Max. Frame Rate | 30ips : 3840 x 2160 |
| Supported Resolution | 3840×2160, 1920×1080, 1280×720, 704×480, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Ethernet | RJ45 (10/100BASE-T) |
| Edge Storage | – |
| Alarm and Event | |
| Trigger Event | Motion Detection, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Interface | |
| Audio In / Out | 1 / 1 |
| USB | 1 USB type B (Remote mouse and keyboard control) |
| Environmental | |
| Operating Temperature | 0°C ~ +40°C (32°F ~ +104°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE (IEEE 802.3af Class 3) |
| Power Consumption | 12V= 0.95A, 11.4W PoE, IEEE 802.3af(Class 3) |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 200mm x 44mm x 152.3mm (7.9″ x 1.7″ x 6.0″) |
| Weight | 0.8kg (1.76lb) |
