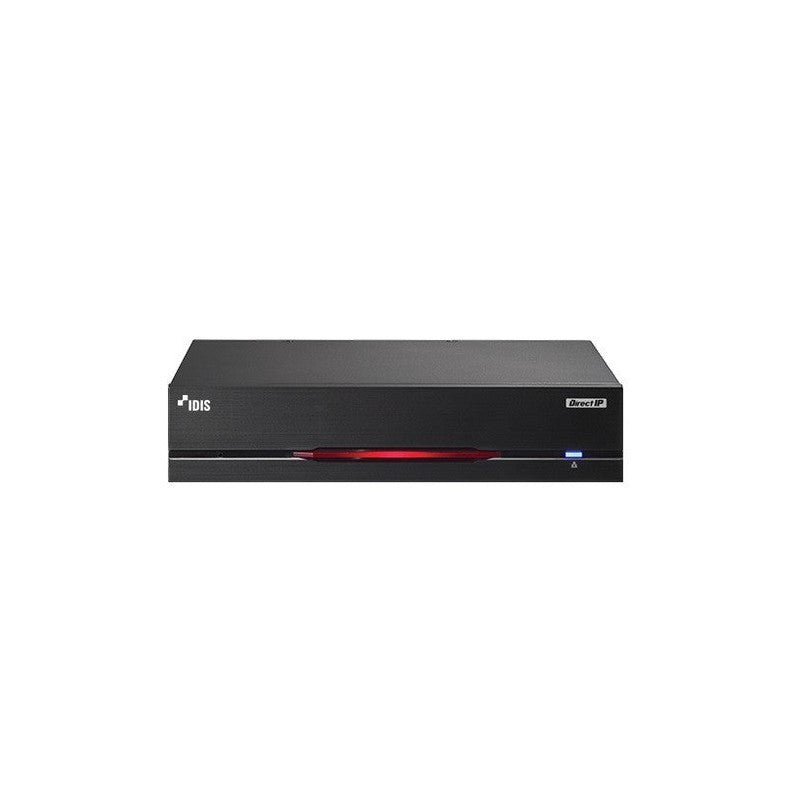

Idis Dp-de2108 8ch Hd Encoder, Ndaa Compliant
SKU: DPDE2108
$440.88
The IDIS DP-DE2108 is an 8-channel HD encoder designed to convert analog video signals into high-definition digital formats for seamless integration with modern IP-based surveillance systems. This device supports up to eight analog cameras, facilitating cost-effective upgrades from legacy analog infrastructure to HD monitoring while preserving existing hardware investments.
Key Features
- Supports 8 BNC analog video inputs with a maximum resolution of 2560 x 1920
- Utilizes H.264 and H.265 video compression to optimize storage and bandwidth usage
- Delivers a maximum frame rate of 240ips at 1080P, 144ips at 3MP, and 120ips at 4MP
- Features a Gigabit Ethernet RJ45 port (10/100/1000 BASE-T) for high-speed network connectivity
- Includes a 4-channel audio input for synchronized audio recording
- Offers event triggers for motion detection, tampering, trip zones, and video loss
- Supports remote software and email notifications with embedded images for event alerts
- NDAA compliant, ensuring adherence to specific security hardware standards
Technical Specifications
| Video | |
| Video Inputs | 8 BNC |
| Max. Resolution | 2560 x 1920 |
| Network | |
| Video Compression | H.265, H.264 |
| Max. Frame Rate | 240ips@1080P, 144ips@3MP, 120ips@4MP, 80ips@5MP |
| Multi-video Streaming | Quadruple Streaming |
| Ethernet | RJ45 (10/100/1000 BASE-T) |
| Edge Storage | – |
| Alarm and Event | |
| Trigger Event | Motion Detection, Tampering, Trip Zone, Video Loss |
| Event Notification | Remote S/W, Email (with Image) |
| Interface | |
| Audio In / Out | 4 / – |
| Serial Interface. | – |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C (+32℉ ~ +104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 0.8A, 10W PoE, IEEE 802.3af(Class 3), 10W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 200mm x 44mm x 165.2mm (7.9″ x 1.7″ x 6.5″) |
| Weight | 0.81kg (1.79lb) |
