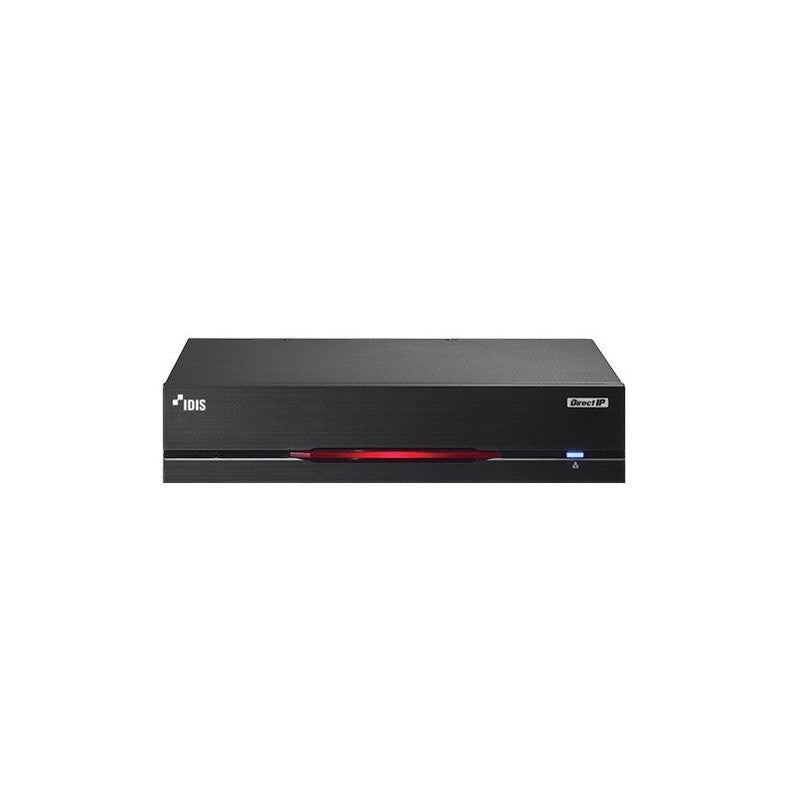

IDIS DP-DD1316 DirectIP™ 16-channel Decoder, NDAA Compliant
SKU: DPDD1316
$938.42
The IDIS DP-DD1316 DirectIP™ 16-channel Decoder is a networked video decoding solution designed for high-density surveillance environments. Supplied by SW, this NDAA-compliant unit supports DirectIP™ technology and Power over Ethernet (PoE) connectivity for streamlined deployment.
Key Features
- 16-channel video decoding capacity
- NDAA compliant for secure procurement
- DirectIP™ architecture for direct camera connectivity
- Power over Ethernet (PoE) support
- Ethernet network interface
- Manufactured by IDIS
Technical Specifications
| Video | |
| Video Inputs | 16 IP Channels |
| Max. Resolution | Up to 12MP (Depending on IP Camera) |
| Supported Device | IDIS IP Camera |
| Video Outputs | 1 HDMI, 1 VGA, 1 CVBS |
| Display Resolution | HDMI : 3840×2160, 1920×1200, 1920×1080, 1680×1050, 1600×1200 VGA : 1920×1200, 1920×1080, 1680×1050, 1600×1200 CVBS : 720×480(NTSC) , 720×576(PAL) |
| Display Speed | Up to 480ips |
| Network | |
| Video Compression | H.265, H.264 |
| Max. Incoming Throughput | 90Mbps |
| Ethernet | Gigabit Ethernet x1 |
| Environmental | |
| Operating Temperature | 0°C ~ +40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE |
| Power Consumption | 12V=, 1.4A, 16.8W PoE, IEEE 802.3at(Class 4) |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 200mm x 44mm x 153mm (7.9″ x 1.7″ x 6.0″) |
| Weight | 0.78kg (1.72lb) |
