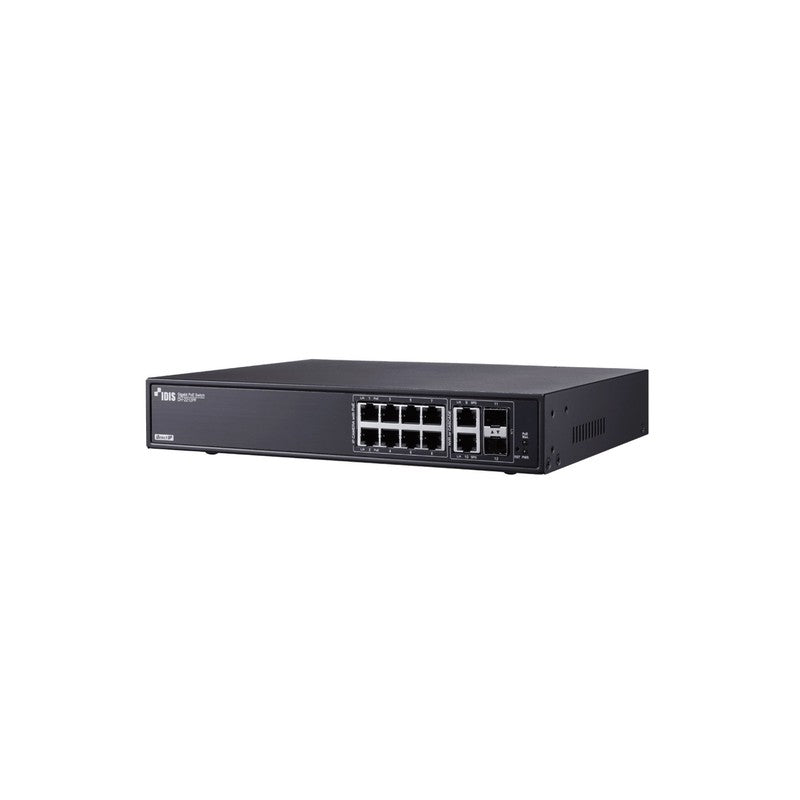

IDIS DH-2212PF DirectIP® Gigabit 12Port Unmanaged PoE Switch
SKU: DH2212PF
$866.76
The IDIS DH-2212PF DirectIP® Gigabit 12Port Unmanaged PoE Switch is a network device from IDIS designed for direct IP camera integration. This unmanaged switch provides a straightforward solution for connecting multiple devices in a surveillance system without requiring complex configuration.
Key Features
- 12-port Gigabit Ethernet connectivity
- Unmanaged design for plug-and-play operation
- Power over Ethernet (PoE) support
- DirectIP® technology for direct camera connection
- Gigabit speed for high-bandwidth video transmission
Technical Specifications
| System | |
| CPU | Embedded MIPS |
| System Memory | 256MB SDRAM, 32MB Flash |
| Switching Capacity | 24Gbps |
| Connectivity | |
| Copper Service Port | 8 RJ45 Connectors (10/100/1000BASE-T) |
| Copper Uplink Port | 2 RJ45 Connectors (10/100/1000BASE-T) |
| Optical Uplink Port | 2 SFP Slot (1000BASE-X) |
| PoE Power | |
| supported Standards | IEEE 802.3af-2003 / IEEE 802.3at-2009 |
| PD Connection | Up to 8 IEEE 802.3af PDs or up to 4 IEEE 802.3at PDs |
| PSE Power Budget | 140W |
| General | |
| Diemensions(W x H x D) | 280mm x 44mm x 180mm (11.0″ x 1.7″ x 7.1″) |
| Weight | 1.55Kg (3.42lb) |
| Operation Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Power Input | AC100-240V, 2.0~1.0A, 50/60Hz |
| Power Consumption | 160W |
| Approvals | FCC,CE,KC,UL,CB |
