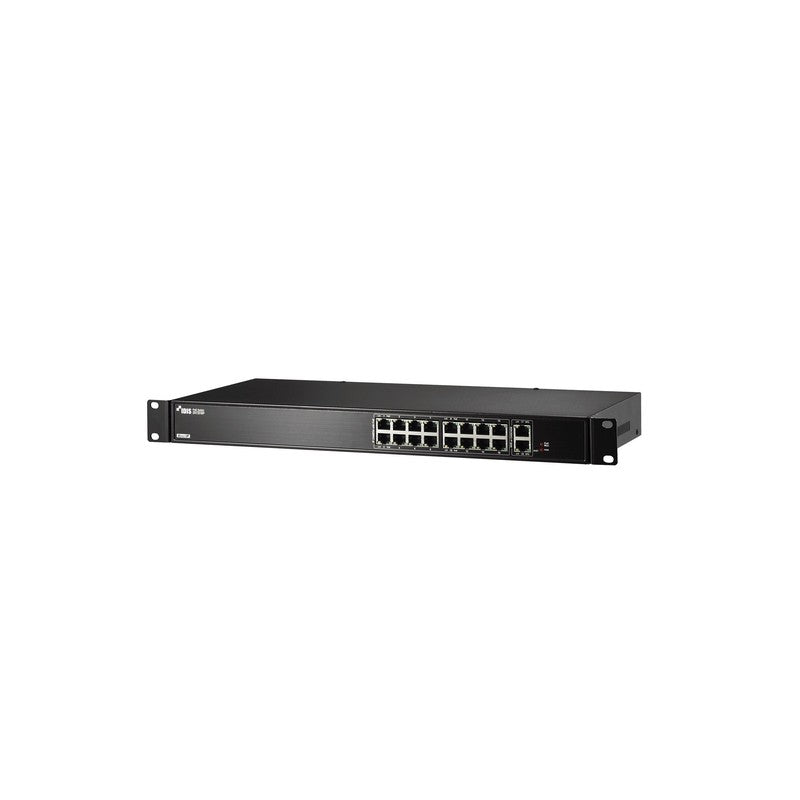

Idis Dh-2018p Directip® 16port Unmanaged POE Switch
SKU: DH2018P
$1,043.43
The IDIS DH-2018P DirectIP® 16-port Unmanaged PoE Switch is engineered to provide seamless connectivity for IP cameras and other network devices. This unit serves as a central distribution point, delivering both data and power over a single cable to simplify installation for security infrastructure.
Key Features
- 16-port unmanaged PoE switch architecture
- Compatible with IP cameras and standard network devices
- DirectIP® technology for streamlined network integration
- Manufactured by IDIS
- Unmanaged design for plug-and-play deployment
Technical Specifications
| Network | |
| Service Port | 16 RJ45 Connectors (10/100BASE-T) |
| Uplink Port | 2 RJ45 Connectors (10/100/1000BASE-T) |
| Supported Standards | IEEE 802.3af-2003 / IEEE 802.3at-2009 |
| PD Connection | Up to 16 IEEE 802.3af PDs or up to 4 IEEE 802.3at PDs |
| PSE Power | 140W |
| General | |
| Switching Capacity | 7.2Gbps |
| Memory | 256MB SDRAM, 32MB Flash |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Electrical | |
| Power Input | 100-240V~, 50/60Hz, 2.0-1.0A, 160W |
| Power Consumption | 160W |
| Approval | FCC, CE, KC, UL, CB |
| Mechanical | |
| Dimensions (W x H x D) | 430mm x 44mm x 180mm (17.0″ x 1.7″ x 7.1″) |
| Weight | 2.05Kg (4.52lb) |
