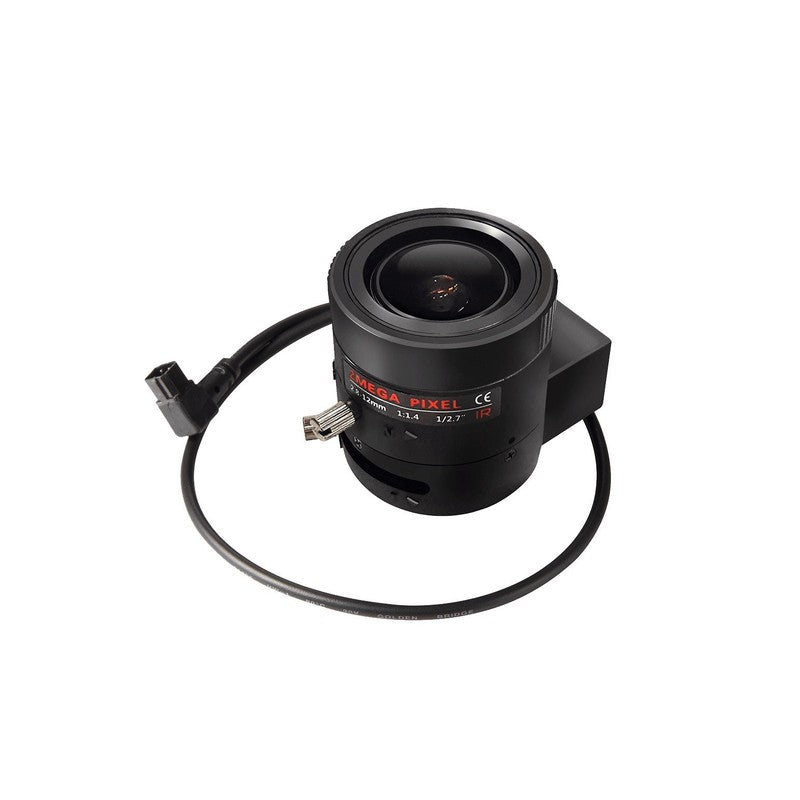

Idis Dcl-m2812d Vari-focal 2MP 2.8-12mm Lens
SKU: DCLM2812D
$93.39
The IDIS DCL-M2812D is a 2MP vari-focal lens designed for high-resolution surveillance applications, featuring an adjustable focal length range of 2.8mm to 12mm. This CS-mount lens supports Full HD imaging with a DC IRIS control system, ensuring precise exposure management across varying lighting conditions.
Key Features
- Adjustable focal length range of 2.8mm to 12mm for flexible field of view
- Wide angle field of view of 106° (H) at 2.8mm and 32° (H) at 12mm
- Aperture range of F/1.4 with DC IRIS control for automatic exposure
- Compatible with 1/2.7" imager size and CS mount type
- Minimum object distance (M.O.D.) of 0.3m
- Compact dimensions of Φ33 x 40.45mm with a weight of 40g
- Operating temperature range of -20°C to 60°C
Technical Specifications
| Imager Size | 1/2.7 |
| Mount Type | CS |
| Focal Length | 2.8 ~ 12mm |
| Aperture Range | F/1.4 ~ Close |
| Field of View | Wide 106°(H) Tele 32°(H) |
| M.O.D. | 0.3m |
| IRIS Control | DC IRIS |
| Dimension | Φ33 x 40.45 |
| Flange Back Length | 12.5mm |
| Weight | 40g |
| Operating Temerature | -20°C ~ 60°C |
