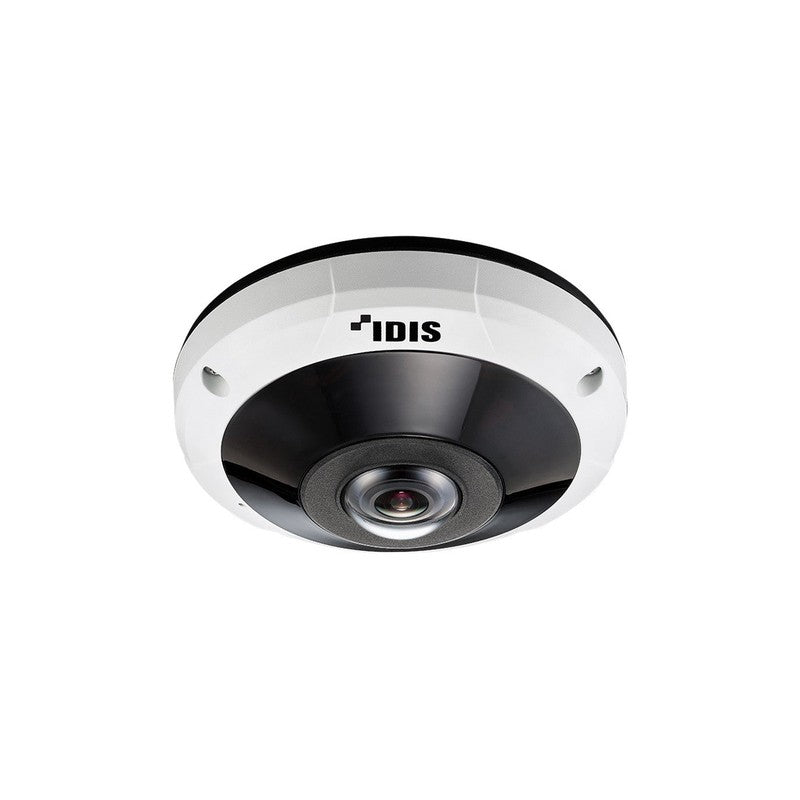

Idis Dc-y6516wrx 5MP Vandal-resistant IR Fisheye Camera, Ndaa Compliant
SKU: DCY6516WRX
$1,093.74
The IDIS DC-Y6516WRX is a 5MP vandal-resistant IR fisheye camera engineered to provide a 180° field of view for comprehensive surveillance without blind spots. Designed for both indoor and outdoor environments, this NDAA-compliant device combines high-resolution imaging with robust physical protection to ensure reliable, round-the-clock monitoring.
Key Features
- 5MP 1/1.8” CMOS sensor with 2560 x 2048 resolution and a 1.5mm fixed-focal lens.
- 180° fisheye field of view with dewarping function for detailed, distortion-free navigation.
- IK10 vandal-resistant and IP66 weatherproof housing for durability in harsh conditions.
- Built-in IR LEDs providing effective night vision up to 20 meters in low-light environments.
- H.265 video compression to reduce bandwidth and storage requirements while maintaining quality.
- Advanced analytics including motion detection, tampering alarms, and heat mapping.
- PoE (Power over Ethernet) support for simplified installation and reduced cabling.
- NDAA compliant and ONVIF compatible for seamless integration into existing security ecosystems.
Technical Specifications
| Video | |
| Image Sensor | 1/1.8” CMOS |
| Max. Resolution | 2560 x 2048 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 1.5mm |
| Aperture | F1.8 |
| Iris Control | Fixed Iris |
| Angular Field of View | 180º(H), 180º(V), 180º(D) |
| Min. Illumination | Color : 0.15 lux @ F1.8 B/W : 0 lux @ (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 20m / 65.6ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control), 3DNR Level, WDR Level |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap |
| Viewing Composition | 1O, 1P, 1P2R, 2P, 4R, 1O7R |
| Video Out | – |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 2560 x 2048 (WDR) |
| Supported Resolution | 2560×2048, 1920×1536, 2560×1024, 1280×1024, 640×512, 640×256 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone, Heatmap |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE (IEEE 802.3af Class 3) |
| Power Consumption | 12V=, 0.92A, 11W PoE (IEEE 802.3af Class 3), 10.3W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø135 x 56.9mm(Ø5.31″ x 2.24″) |
| Weight | 0.670kg (1.47 lb) |
