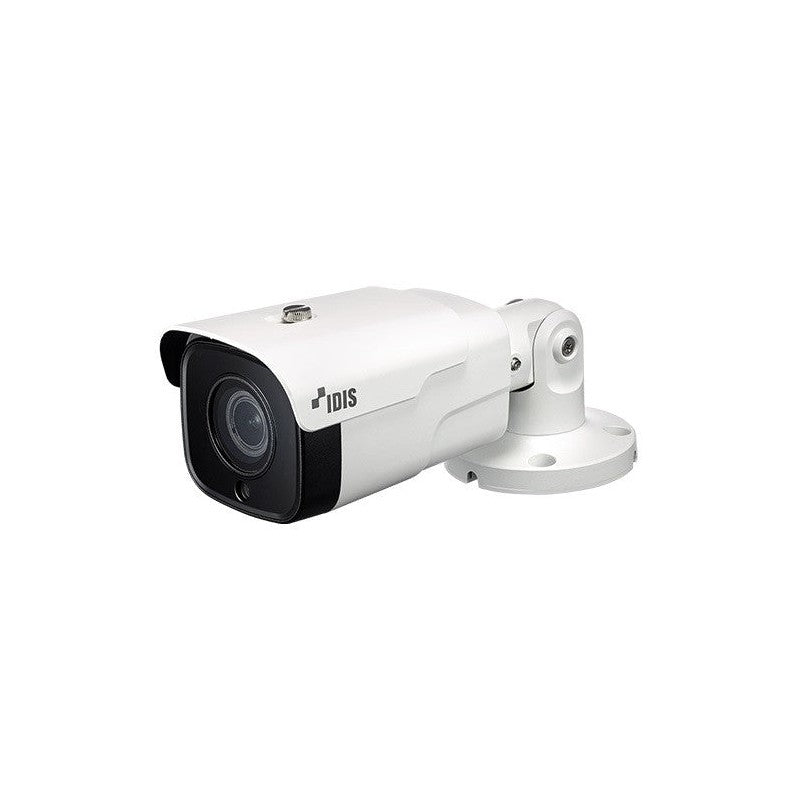

Idis Dc-t4831hrx 8MP IR Bullet Camera With Heater, Ndaa Compliant
SKU: DCT4831HRX
$1,125.33
The IDIS DC-T4831HRX 8MP IR Bullet Camera with Heater is a high-resolution surveillance unit engineered for demanding outdoor environments. Featuring a motorized vari-focal lens and integrated heating elements, this NDAA-compliant device ensures consistent performance and clear imaging across extreme temperature ranges.
Key Features
- 8MP (3840 x 2160) resolution with a 1/2.8″ CMOS sensor and 120dB True WDR for detailed image capture in high-contrast lighting.
- Motorized vari-focal lens with a focal length range of 2.7 to 13.5mm and DC iris control for flexible field of view adjustment.
- Integrated heater and IP67 weatherproof rating ensure reliable operation in harsh weather conditions and extreme temperatures.
- IR LED illumination provides up to 40 meters of visibility in complete darkness, supported by smart IR technology to prevent overexposure.
- IK10 vandal-resistant housing and removable IR cut filter provide physical protection and automatic day/night transition.
- Supports H.265 video compression to optimize bandwidth and storage efficiency while maintaining high video quality.
- NDAA compliant and ONVIF compatible, with PoE connectivity and two-way audio for seamless integration into existing security networks.
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.8 ~ F3.32 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 110.6º(H) 57.3º(V) 134.1º(D) Tele : 32.6º(H) 18.3º(V) 37.4(D) |
| Min. Illumination | COLOR : 0.2 lux @ F1.8 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40 m / 131.2 ft (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 3840×2160 15ips : 3840×2160(WDR) |
| Supported Resolution | 3840×2160, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 11.7W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 80mm X 75mm X 237mm(3.15″ x 2.95″ x 9.33″) |
| Weight | 1.01kg (2.22lb) |
