Idis Dc-t2531wr Lite 5MP 2.7-13.5mm Mfz Lens H.265 Twdr, IR 20m, Ip67, Ik10 Bullet Camera
SKU: DCT2531WR
$370.68

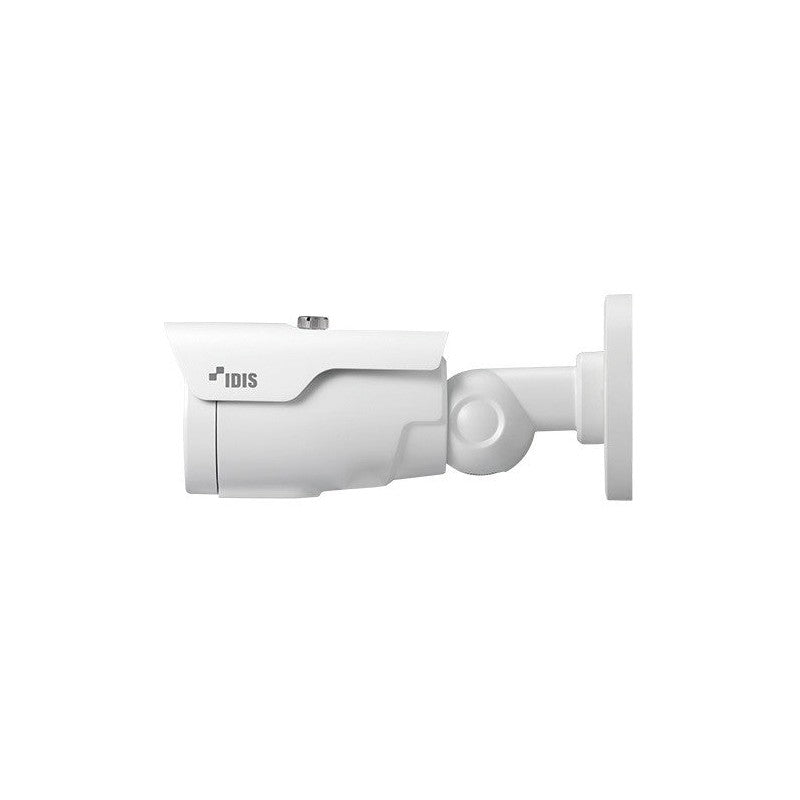

The IDIS DC-T2531WR Lite is a 5MP bullet camera engineered for outdoor surveillance, featuring a 1/2.8″ SONY IMX 335 Starvis CMOS sensor and a 2.7-13.5mm motorized focus lens. This unit delivers high-resolution video with 120dB WDR and 30-meter infrared illumination, housed in an IP67 and IK10-rated weatherproof enclosure.
Key Features
- 5MP resolution (2704 x 2104) with 1/2.8″ SONY IMX 335 Starvis CMOS sensor
- 2.7-13.5mm motorized focus (MFZ) lens with a field of view ranging from 130.9° diagonal to 56.3° vertical
- 30-meter infrared range powered by 4 high-power IR LEDs for low-light visibility
- 120dB Wide Dynamic Range (WDR) and 2DNR/3DNR noise reduction for clear imaging in challenging lighting
- IP67 weatherproof rating and IK10 vandal resistance for durable outdoor deployment
- Supports H.265 and MJPEG compression with triple streaming capability for bandwidth efficiency
- ONVIF compliant with PoE support and NDAA compliance for secure, integrated system deployment
- Local storage via micro SDHC/SDXC card for smart failover protection during network disruptions
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ SONY IMX 335 Starvis CMOS Sensor |
| Total Number of Pixels | 2704 x 2104 |
| Scanning Mode | Progressive Scan |
| Lens Type | MFZ Lens |
| Focal Length | f=2.7-13.5mm |
| F No. | F=1.6-3.3±10% |
| Iris Control | Fixed |
| Field of View | 130.9º(D), 108.1º(H), 56.3º(V) |
| Shutter Speed Control | Min. 1/100,000 sec ~ Max. 1/2 sec |
| Day and Night Mode | Auto / Day(Color) / Night(BW) / External |
| Infrared Distance | 30 m |
| Auto White Balance Mode | Automatic, Manual |
| Noise Reduction | 2DNR/3DNR |
| Backlight Correction | 120dB (WDR) |
| Network | |
| Video Compression | H.265 Main profile, H.264(High, Main, Base line profile), MJPEG |
| SDK Support | API, ONVIF Profile S/T Compliant |
| Video Frame Rate | Up to 30fps@2592x1944p |
| Video Resolution | 2592×1944, 2560×1920, 2048×1536, 1920×1440,1600×1200, 1280×960, 640×480, 480×360 |
| Video Streaming (3 Streaming) | Simultaneously H.265 and MJPEG (Multi Streaming) or Simultaneously H.264 and MJPEG (Multi Streaming) Independent Frame Rate and Bandwidth Control, VBR/CBR Mode |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf |
| Security | Multi User Authority, IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Edge Storage | micro SDHC/SDXC |
| Alarm and Event | |
| Event In | Onboot/Trigger/Network Loss/Tampering/Motion |
| Event Out Notification | E-mail, FTP |
| Audio | Line-In/Line-Out |
| Alarm Control | Alarm-In 1/Alarm-Out 1 |
| General | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operation Temperature | -10°C ~ +50°C |
| Operation Humidity | 0% ~ 95% |
| Electrical | |
| Power Source | DC 12V, PoE (IEEE 802.3af Class 2) |
| Power Consumption | 6.3W |
| Approval | KC, CE, FCC |
| Mechanical | |
| Dimension | 79.3mm x 77.5mm x 212mm |
