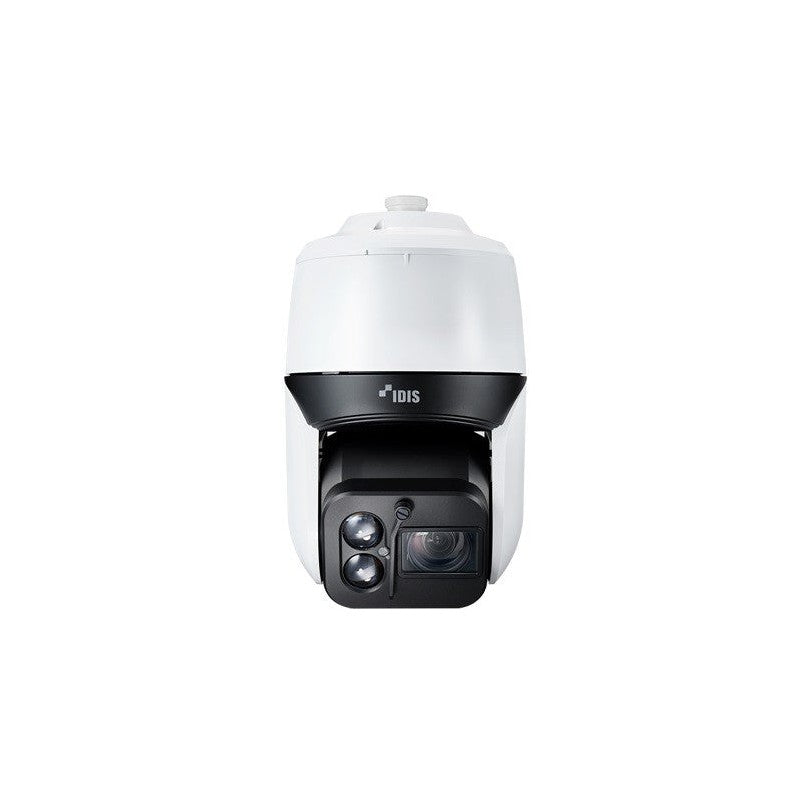

Idis Dc-s6881hrx 8MP 31x IR PTZ Camera, Ndaa Compliant
SKU: DCS6881HRX
$1,417.83
The IDIS DC-S6881HRX 8MP 31x IR PTZ Camera is an NDAA-compliant network surveillance unit engineered for high-resolution wide-area monitoring. It combines 8MP imaging with a 31x optical zoom lens to deliver detailed footage of distant subjects while maintaining clarity across varying lighting conditions.
Key Features
- 1/1.8" CMOS sensor with 3840 x 2160 (8MP) maximum resolution and progressive scan
- 31x optical zoom with 6.5 ~ 202mm focal length and F1.55 ~ F4.8 aperture
- 120dB True WDR for balanced exposure in high-contrast lighting scenarios
- IR LED illumination providing visibility up to 300 meters in low-light conditions
- IP66 and IK10 rated housing for protection against weather and physical impact
- H.265 video compression to reduce bandwidth and storage requirements
- NDAA compliant with ONVIF support and PoE power delivery
Technical Specifications
| Video | |
| Image Sensor | 1/1.8″ CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6.5 ~ 202mm |
| Aperture | F1.55 ~ F4.8 |
| Iris Control | DC Iris (Hall Sensor) |
| Angular Field of View | Wide : 63º(H), 37.6º(V), 70.3º(D) Tele : 2.4º(H), 1.3º(V), 2.7º(D) |
| Min. Illumination | Color : 0.1 lux @ F1.55 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 300 m/984.3ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~240°/sec (preset 240°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | 0.02~240°/sec (preset 240°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 3840 x 2160(WDR) |
| Supported Resolution | 3840 x 2160, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 8 / 2 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 24VAC, High-PoE (75W) |
| Power Consumption | HEATER, IR LED OFF 24V~, 1.2A, 21.1W, 50/60Hz High-PoE, 50-57V, 20.3WHEATER, IR LED ON 24V~, 3.4A, 65.8W, 50/60Hz High-PoE, 50-57V, 60.0W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø242mm x 401.8mm (Ø9.52″ x 15.82″) |
| Weight | 7.4kg (16.31lb) |
