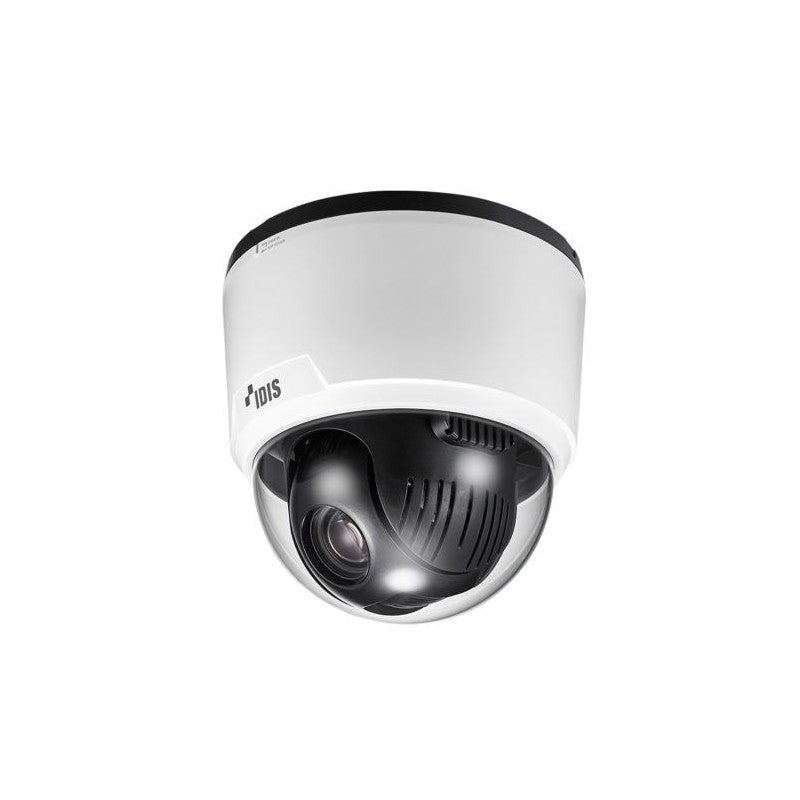

Idis Dc-s6261x-a Full Hd 12x Compact PTZ Camera, Ndaa Compliant
SKU: DCS6261XA
$995.46
The IDIS DC-S6261X-A Full HD 12x Compact PTZ Camera is a 2MP network surveillance device engineered for professional-grade monitoring in both indoor and outdoor environments. This NDAA-compliant unit features a 12x optical zoom lens and True WDR technology to maintain image clarity across varying lighting conditions.
Key Features
- 1/2.8" image sensor with 1920 x 1080 Full HD resolution and progressive scan
- 12x optical zoom lens with focal length of 5.3 – 64mm and DC Auto Iris control
- 120dB True WDR dynamic range for high-contrast scene visibility
- IP66 weatherproof and IK10 vandal-resistant housing for harsh environmental durability
- Supports H.265, H.264, and MJPEG compression for optimized bandwidth and storage
- ONVIF compliant with PoE (Power over Ethernet) connectivity for simplified installation
- Integrated IR LEDs for reliable night vision in complete darkness
- NDAA compliant for secure government and enterprise applications
Technical Specifications
| Video | |
| Image Sensor | 1/2.8 |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | f=5.3 – 64mm (12X) |
| Aperture | F1.6 – 2.8 |
| Iris Control | DC Auto Iris (with hall sensor) |
| Angular Field of View | Wide : 58.2°(H), 34°(V), 65.3°(D) Tele : 4.83°(H), 2.8°(V), 5.7°(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.6 B/W : 0.01 lux @ F1.6 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | – |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Auto Tracking | No |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~150°/sec (preset 150°/sec) |
| Tilt Range | 180° (0~180°) |
| Tilt Speed | 0.02~150°/sec (preset 150°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | – |
| Two-way Audio | – |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | – |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | – |
| Outdoor Ready | – |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12VDC, 9.2W / PoE (IEEE 802.3af Class 3), 10W |
| Approval | FCC, CE(50130-4), KC, UL |
| Mechanical – Brand | |
| Dimensions (Ø x H) | Ø155mm x 158.1mm (Ø6.1″ x 6.22″) |
| Weight | 1.0 kg |
