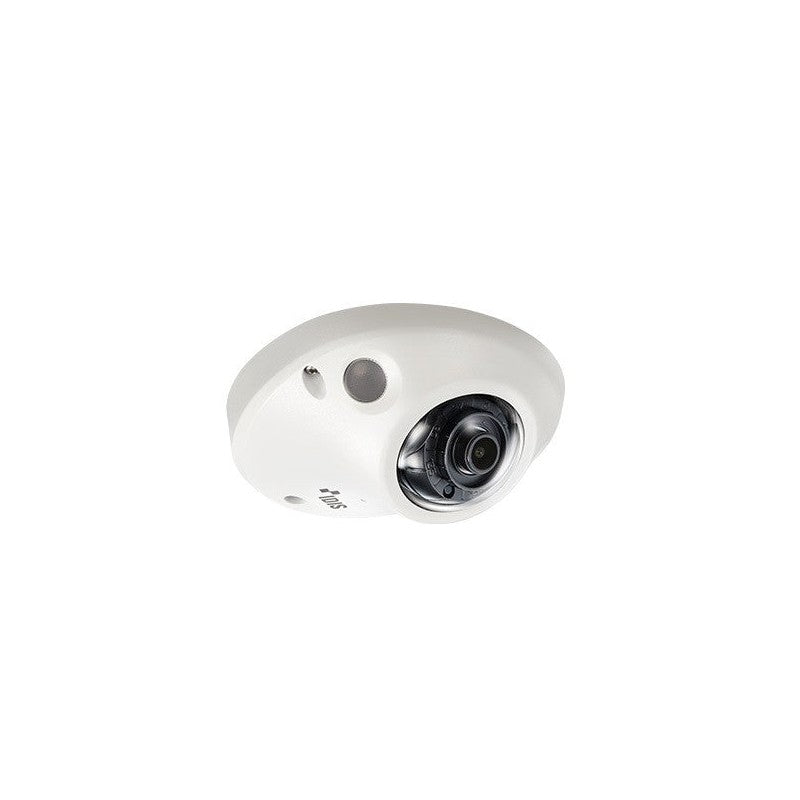

Idis Dc-m4211wrx 2.8mm Full Hd IR Mobile Dome Camera – Vandal, Shock And Vibration Resistant, Ndaa Compliant
SKU: DCM4211WRX28MM
$529.80
The IDIS DC-M4211WRX 2.8mm Full HD IR Mobile Dome Camera is a rugged surveillance unit engineered for mobile and high-vibration environments. It combines a 2MP sensor with IP67 weather resistance and IK10 impact protection to ensure reliable operation in challenging outdoor conditions.
Key Features
- 2MP 1/2.8″ CMOS sensor delivering 1920 x 1080 Full HD resolution with a 2.8mm fixed lens and 111.6° horizontal field of view
- IP67-rated weatherproof housing and IK10 vandal resistance for durability in harsh, high-impact, and mobile applications
- True WDR with 120dB dynamic range to maintain image clarity in high-contrast lighting scenarios
- IR LED illumination with a range of up to 10 meters for clear imaging in total darkness
- Supports H.265 and H.264 compression standards to optimize bandwidth and storage efficiency
- ONVIF compliant and NDAA compliant, ensuring interoperability with existing security systems and regulatory adherence
- Power over Ethernet (PoE) support and IDIS DirectIP® technology for simplified network installation and management
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 111.6º(H), 61.45º(V), 127.3º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 10 m |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | – |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 CVBS |
| Pan/Tilt/Rotate | |
| Pan Range | -5º ~ +5º |
| Tilt Range | +20º ~ +75º |
| Rotate Range | -90º ~ +90º |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 16:9 – 1920×1080, 1280×720, 640×360, 352×240 4:3 – 1440×1080, 960×720, 480×360, 272×240 |
| Multi-video Streaming | Triple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | – |
| Audio In / Out | 1(Internal MIC) / 0 |
| Alarm In / Out | – |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | 8.9W |
| Approval | FCC, CE, MIL-STD-810G EN50155(M12 model only) |
| Mechanical | |
| Weight | 0.36Kg (0.79lbs) |
