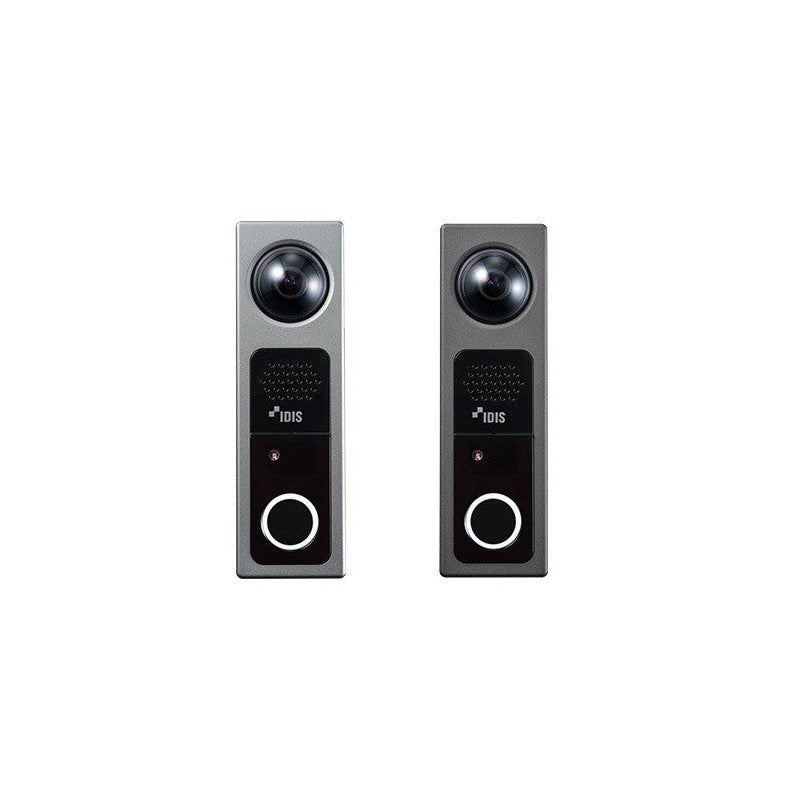

Idis Dc-i6212wrx 2MP Intercom, Ndaa Compliant – Silver
SKU: DCI6212WRXSILVER
$318.03
The IDIS DC-I6212WRX 2MP Intercom is an NDAA-compliant video door station engineered for high-definition surveillance and seamless two-way communication. It features a 2MP sensor delivering 1080p video quality, protected by an IP66-rated weatherproof housing and IK10 vandal-resistant construction for reliable outdoor performance.
Key Features
- 2MP 1/2.8″ CMOS sensor with 1920 x 1080 resolution and 180º horizontal field of view
- IP66 weatherproof rating and IK10-rated housing for dust, rain, and vandalism protection
- True WDR with 120dB dynamic range to manage high-contrast lighting conditions
- Built-in IR LEDs providing 5 meters of illumination for clear visibility in low-light environments
- Power over Ethernet (PoE) support for streamlined installation without separate power cables
- NDAA compliant and ONVIF profile support for secure, interoperable system integration
- Fixed 1.85mm lens with F2.3 aperture and auto/manual electronic shutter speeds
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 1.85mm |
| Aperture | F2.3 |
| Iris Control | Fixed Iris |
| Angular Field of View | 180º(H) |
| Min. Illumination | COLOR : 0.1 lux @ F2.3 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 5m / 16ft (1ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | G.726, G.711 u-Law, G.711 a-Law, G.722 |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2, SIP |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 (Built In MIC with Echo Cancellation) / 1 (Built In SPK) |
| Alarm In / Out | 1 / 2 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66, NEMA4X |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 1.87A, 22.4W PoE, (IEEE 802.3af Class 3), 9.5W (DC Output : 12V=, 1A MAX with Adaptor) |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 52mm x 165mm x 46mm (2.05″ x 6.50″ x 1.81″) |
| Weight | 0.52 kg (1.15lb) |
