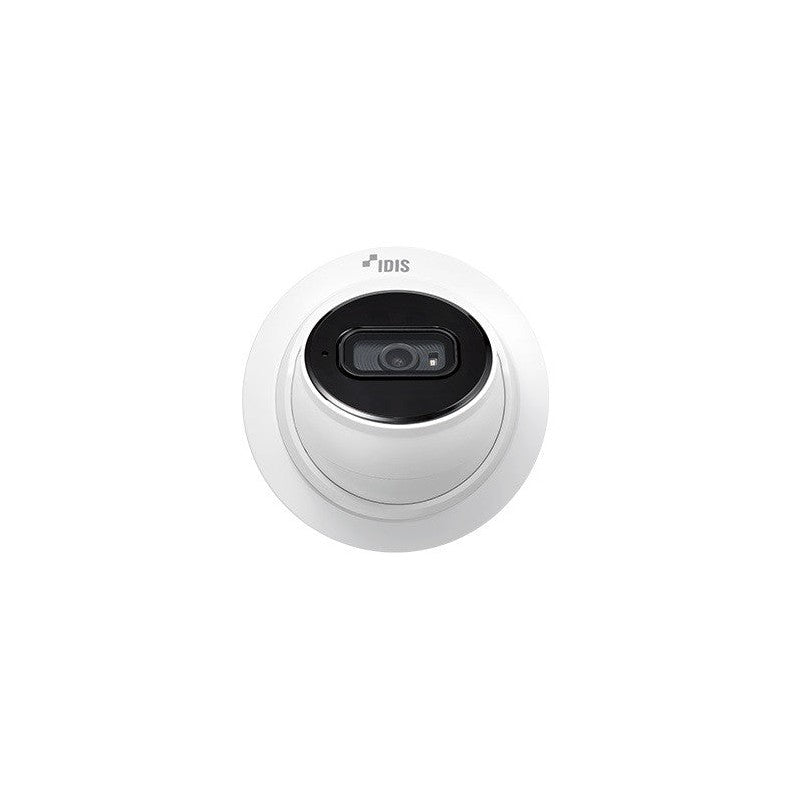

Idis Dc-d4512wera 2.8mm H.265 5MP AI IR Turret Camera (lightmaster Nir), Ndaa Compliant
SKU: DCD4512WERA
$571.92
The IDIS DC-D4512WERA 2.8mm H.265 5MP AI IR Turret Camera (LightMaster NIR) is a 5MP network turret camera engineered for high-performance surveillance with embedded artificial intelligence. This NDAA-compliant device utilizes LightMaster NIR technology and H.265 compression to deliver superior low-light visibility and efficient bandwidth management for outdoor security applications.
Key Features
- 5MP resolution (2592 x 1944) with a 1/2.8″ CMOS sensor and 2.8mm fixed-focal lens (F2.0) providing a 104.8° horizontal field of view.
- LightMaster NIR technology with IR LEDs for clear night vision up to 30 meters, supporting 0 lux minimum illumination in B/W mode.
- Embedded AI capabilities for object detection, classification, and behavior analytics to identify potential threats.
- 120dB True WDR (Wide Dynamic Range) to capture clear images in scenes with high contrast between bright and dark areas.
- IP67 weatherproof rating and IK10 vandal-resistant housing for reliable operation in harsh outdoor environments.
- H.265 video compression to significantly reduce bandwidth and storage requirements while maintaining image quality.
- NDAA compliant design with ONVIF support and PoE (Power over Ethernet) for easy installation and seamless integration.
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 4:3 mode : 104.8º(H) 76.9º(V) 130º(D) 16:9 mode : 104.8º(H) 57.2º(V) 123º(D) |
| Min. Illumination | COLOR : 0.13 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -180° ~ 180° |
| Tilt Range | -5° ~ 65° |
| Rotate Range | -180° ~ 180° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592×1944, 1920×1440, 1280x960x 640×480 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | PoE, IEEE 802.3af(Class 3), 7.6W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø121 x 78.7mm (Ø4.76” x 3.1”) |
| Weight | 605g (1.3lb) |
