Idis Dc-d4218wra 2.8mm H.265 2MP AI Dome Camera (lightmaster Nir), Ndaa Compliant
SKU: DCD4218WRA28MM
$503.12

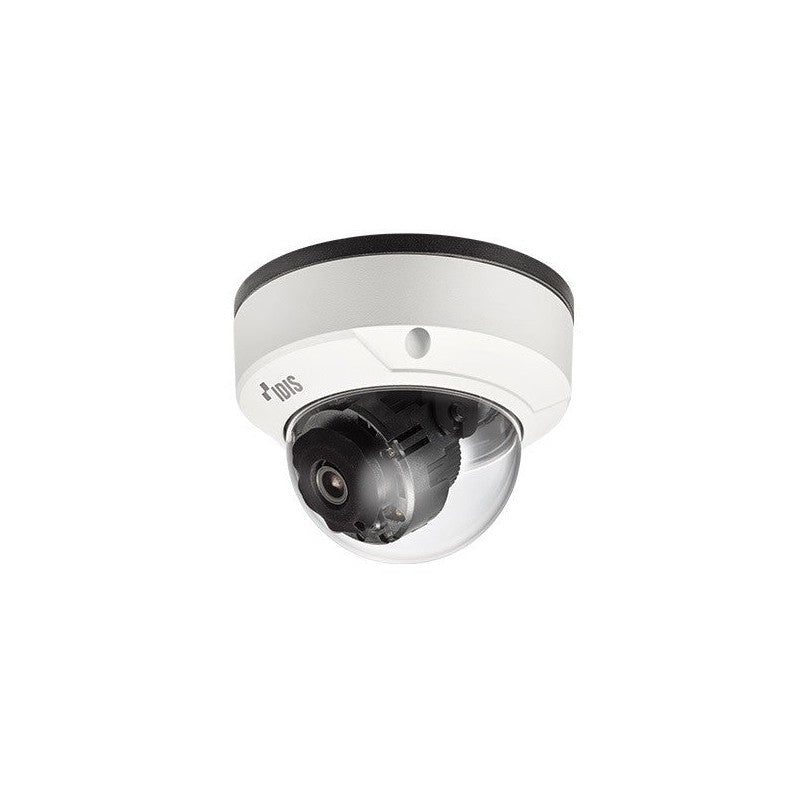

The IDIS DC-D4218WRA 2.8mm H.265 2MP AI Dome Camera (LightMaster NIR) is a 2MP fixed-lens network camera designed for high-performance surveillance in both indoor and outdoor environments. This NDAA-compliant unit integrates LightMaster NIR technology and embedded AI analytics to deliver clear, detailed footage with intelligent monitoring capabilities.
Key Features
- 2MP resolution (1920 x 1080) with a 1/2.8″ CMOS sensor and H.265 compression for efficient bandwidth and storage usage.
- LightMaster NIR technology enables high-quality image capture in low-light and near-darkness conditions using near-infrared illumination.
- Embedded AI capabilities support intelligent video analytics, including intrusion detection, object classification, and line crossing detection.
- Fixed 2.8mm lens with an F1.6 aperture provides a wide angular field of view of 105.8º (H), 56.4º (V), and 121.2º (D).
- Robust construction features an IP67 weatherproof rating and IK10 vandal-resistant rating for reliable performance in harsh outdoor environments.
- Supports Power over Ethernet (PoE) for easy installation and two-way audio for real-time remote communication.
- Includes edge-based recording functionality to ensure continuous monitoring during network disruptions and is ONVIF compliant.
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F1.6 |
| Iris Control | Fixed Iris |
| Angular Field of View | 105.8º(H), 56.4º(V), 121.2º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -170° ~ 170° |
| Tilt Range | -5° ~ 67.5° |
| Rotate Range | -109° ~ 109° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 60ips : 1920 x 1080 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ +60°C (-22°F ~ +140°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 3) |
| Power Consumption | PoE, IEEE 802.3af (Class 3), 8W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø120.6 x 92.9mm(Ø4.75” x 3.65”) |
| Weight | 0.490kg(1.08lb) |
