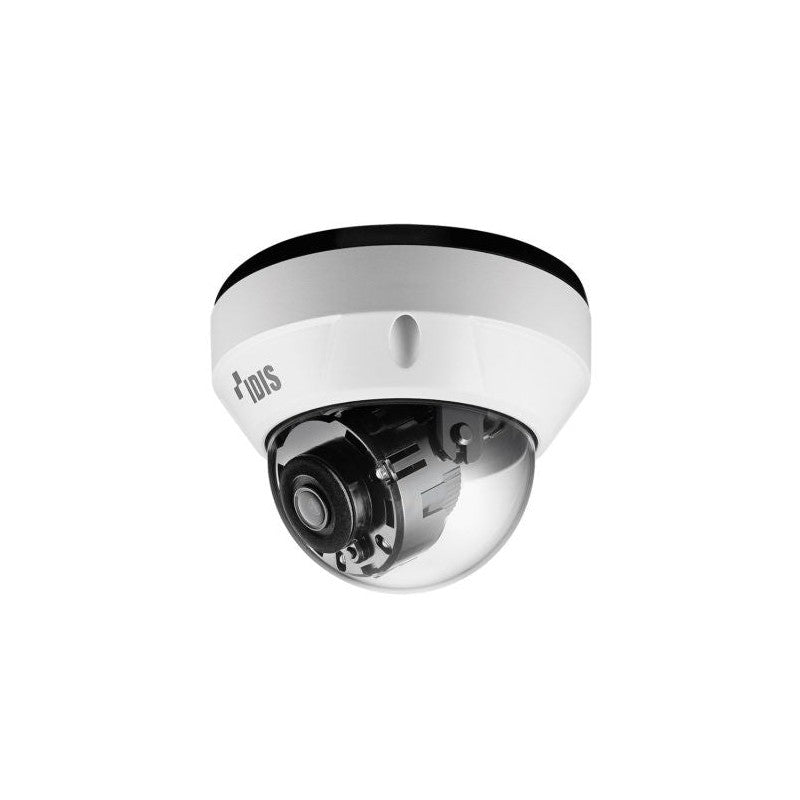

Idis Dc-d4216wrx 2.8mm Full Hd Vandal-resistant IR Dome Camera, Ndaa Compliant
SKU: DCD4216WRX28MM
$413.97
The IDIS DC-D4216WRX 2.8mm Full HD Vandal-Resistant IR Dome Camera is a 2MP network surveillance solution engineered for high-risk outdoor environments. It combines 1080p Full HD resolution with an IK10-rated vandal-resistant housing and IP67 weatherproofing to ensure reliable, continuous monitoring in harsh conditions.
Key Features
- 1/2.8″ CMOS sensor with 1920 x 1080 progressive scan resolution and a 2.8mm fixed-focal lens providing a 111.6º horizontal field of view
- IK10-rated vandal-resistant casing and IP67 ingress protection for complete dust and water resistance in outdoor installations
- Built-in IR LEDs with a 30-meter range and removable IR cut filter for clear night vision in complete darkness
- True Wide Dynamic Range (WDR) technology to maintain image clarity in high-contrast lighting and glare
- IDIS Smart Failover technology that stores data locally during network outages to prevent recording loss
- NDAA compliant and ONVIF compatible, supporting H.265 codec for efficient bandwidth and storage utilization
- Power over Ethernet (PoE) connectivity and two-way audio for simplified installation and remote communication
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 111.6º(H), 61.45º(V), 127.3º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -170° ~ 170° |
| Tilt Range | -5° ~ 67.5° |
| Rotate Range | -109° ~ 109° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 2) |
| Power Consumption | PoE, IEEE 802.3af (Class 2), 4.6W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø120.6 x 92.9mm(Ø4.75” x 3.65”) |
| Weight | 0.465kg(1.02lb) |
