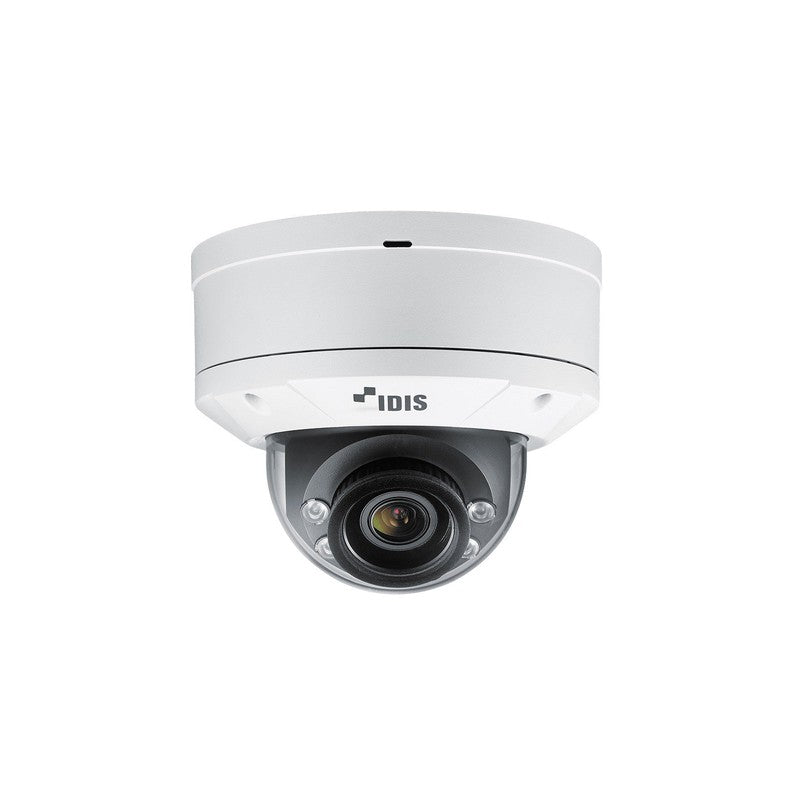

Idis Dc-d3c33hrx 12MP Vandal-resistant IR Dome Camera With Heater
SKU: DCD3C33HRX
$1,423.68
The IDIS DC-D3C33HRX is a 12MP vandal-resistant IR dome camera designed for high-definition surveillance in both indoor and outdoor environments. It integrates a built-in heater and IP67 weatherproofing to ensure reliable operation in harsh climates and freezing conditions down to -40°C.
Key Features
- 12MP resolution with a 1/1.7” CMOS sensor and 4000 x 3000 maximum image size
- IK10 vandal-resistant housing and IP67 rating for dust and water protection
- Integrated heater enabling operational stability in temperatures as low as -40°C
- Motorized vari-focal lens with a focal length range of 4.5–10mm and P-Iris control
- Infrared LED illumination providing night vision capabilities up to 30 meters
- True Wide Dynamic Range (WDR) with a 120dB dynamic range for balanced exposure
- Support for H.265 and H.264 video compression formats for efficient bandwidth management
- Two-way audio and intelligent video analytics including motion detection and tamper alarms
Technical Specifications
| Video | |
| Image Sensor | 1/1.7” CMOS |
| Max. Resolution | 4000 x 3000 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=4.5 -10mm |
| Aperture | F1.6 – 2.6 |
| Iris Control | P-Iris |
| Angular Field of View | [8MP mode] Wide : 90.2°(H), 48.5°(V), 106.2°(D), Tele : 41.6°(H), 23.3°(V), 47.8°(D) [12MP mode] Wide : 94.6°(H), 68.5°(V), 125.2°(D), Tele : 43.4°(H), 32.4°(V), 54°(D) |
| Pan/Tilt/Rotate Range | Pan: -176° ~ 176°, Tilt: 0° ~ 65°, Rotate: -90° ~ 90° |
| Min. Illumination | COLOR : 0.3 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30m / 98.4 ft (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off / HSBLC |
| Image Stabilizer | – |
| De-fog | On / Off |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 BNC(Accessory) |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 15ips : 4000 x 3000(WDR) 30ips : 3840×2160(WDR) |
| Supports Resolution | 12MP mode : 4000×3000, 2592×1944, 1280×960, 640×480, 320×240 8MP mode : 3840 x 2160 , 1920×1080, 1280×720, 640×360, 320×180 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100/1000BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Pre-recorderd Voice Alert-IDIS protocol | Off / On |
| Audio In/ Out | 1/1 |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 1.0A, 12W PoE, IEEE 802.3af(Class 3) |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø160mm x 128.5mm (Ø6.30” x 5.06”) |
| Weight | 1.21 kg |
