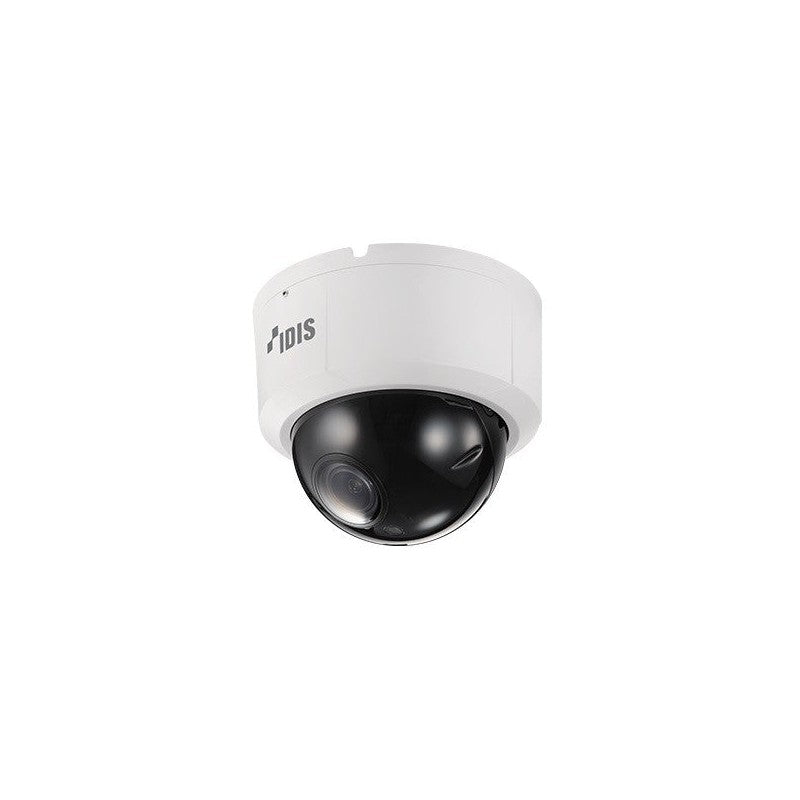

Idis Dc-d2531wr Lite 5MP 2.7-13.5mm Mfz Lens H.265 Twdr, IR 20m, Ip67, Ik10 Dome Camera
SKU: DCD2531WR
$321.31
The IDIS DC-D2531WR is a 5MP IR dome camera engineered for high-quality surveillance with a robust feature set. It utilizes a 1/2.8″ SONY IMX 335 Starvis CMOS sensor to deliver excellent image resolution in various lighting conditions, including low light, supported by integrated infrared technology with a 25-meter range.
Key Features
- 5MP resolution with a 1/2.8″ SONY IMX 335 Starvis CMOS sensor and progressive scan mode
- Motorized focus (MFZ) lens with a focal length of 2.7-13.5mm and a maximum field of view of 130.9° (Diagonal)
- Supports H.265, H.264, and MJPEG compression formats for flexible bandwidth and storage management
- Weatherproof IP67 rating and IK10 impact resistance for durable outdoor installation
- 120dB WDR (Wide Dynamic Range) and 2DNR/3DNR noise reduction for clear imaging in challenging lighting
- ONVIF Profile S/T compliant with PoE support for simplified installation and third-party system compatibility
- Includes onboard microSDHC/SDXC storage, alarm in/out, and audio in/out capabilities
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ SONY IMX 335 Starvis CMOS Sensor |
| Total Number of Pixels | 2704 x 2104 |
| Scanning Mode | Progressive Scan |
| Lens Type | MFZ Lens |
| Focal Length | f=2.7-13.5mm |
| F No. | F=1.6-3.3±10% |
| Iris Control | Fixed |
| Field of View | 130.9º(D), 108.1º(H), 56.3º(V) |
| Shutter Speed Control | Min. 1/100,000 sec ~ Max. 1/2 sec |
| Day and Night Mode | Auto / Day(Color) / Night(BW) / External |
| Infrared Distance | 25 m |
| Auto White Balance Mode | Automatic, Manual |
| Noise Reduction | 2DNR/3DNR |
| Backlight Correction | 120dB (WDR) |
| Network | |
| Video Compression | H.265 Main profile, H.264(High, Main, Base line profile), MJPEG |
| SDK Support | API, ONVIF Profile S/T Compliant |
| Video Frame Rate | Up to 30fps@2592x1944p |
| Video Resolution | 2592×1944, 2560×1920, 2048×1536, 1920×1440,1600×1200, 1280×960, 640×480, 480×360 |
| Video Streaming (3 Streaming) | Simultaneously H.265 and MJPEG (Multi Streaming) or Simultaneously H.264 and MJPEG (Multi Streaming) Independent Frame Rate and Bandwidth Control, VBR/CBR Mode |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf |
| Security | Multi User Authority, IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Edge Storage | micro SDHC/SDXC |
| Alarm and Event | |
| Event In | Onboot/Trigger/Network Loss/Tampering/Motion |
| Event Out Notification | E-mail, FTP |
| Audio | Line-In/Line-Out |
| Alarm Control | Alarm-In 1/Alarm-Out 1 |
| General | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operation Temperature | -10°C ~ +60°C |
| Operation Humidity | 0% ~ 95% |
| Electrical | |
| Power Source | DC 12V, PoE (IEEE 802.3af Class 2) |
| Power Consumption | 6.1W |
| Approval | KC, CE, FCC |
| Mechanical | |
| Dimension | Ø130 x 110(H)mm |
