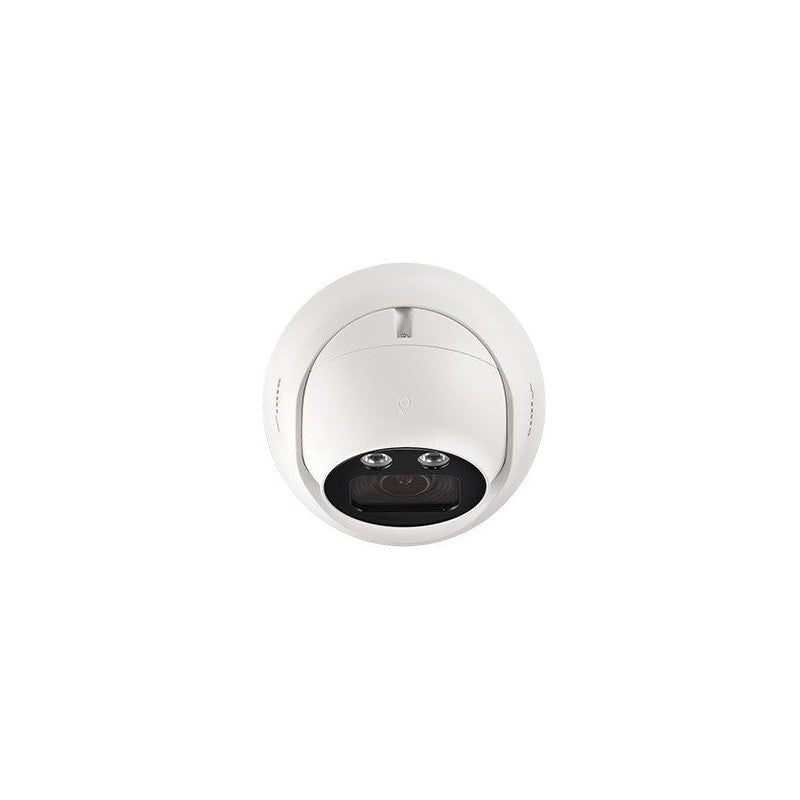

Idis Dc-d2531wer Lite 5MP 2.7-13.5mm Mfz Lens H.265 Twdr, IR 25m, Ip67,ik10 Turret Camera
SKU: DCD2531WER
$209.92
The IDIS DC-D2531WER Lite is a 5MP turret camera engineered for outdoor surveillance, featuring a 1/2.8" Sony Starvis CMOS sensor and a 2.7-13.5mm motorized varifocal lens. Designed for durability in harsh environments, the unit holds IP67 weatherproof and IK10 impact resistance ratings while delivering 120dB True WDR performance for challenging lighting conditions.
Key Features
- 5MP resolution (2592×1944) with 1/2.8" Sony IMX 335 Starvis CMOS sensor
- 2.7-13.5mm MFZ lens with 130.9° diagonal field of view
- 25m infrared illumination for clear night vision
- IP67 weatherproof and IK10 vandal-resistant housing
- 120dB True WDR and 2DNR/3DNR noise reduction
- H.265, H.264, and MJPEG video compression with ONVIF Profile S/T compliance
- NDAA compliant with support for edge recording via SD card slot
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ SONY IMX 335 Starvis CMOS Sensor |
| Total Number of Pixels | 2704 x 2104 |
| Scanning Mode | Progressive Scan |
| Lens Type | MFZ Lens |
| Focal Length | f=2.7-13.5mm |
| F No. | F=1.6-3.3±10% |
| Iris Control | Fixed |
| Field of View | 130.9º(D), 108.1º(H), 56.3º(V) |
| Shutter Speed Control | Min. 1/100,000 sec ~ Max. 1/2 sec |
| Day and Night Mode | Auto / Day(Color) / Night(BW) / External |
| Infrared Distance | 25 m |
| Auto White Balance Mode | Automatic, Manual |
| Noise Reduction | 2DNR/3DNR |
| Backlight Correction | 120dB (WDR) |
| Network | |
| Video Compression | H.265 Main profile, H.264(High, Main, Base line profile), MJPEG |
| SDK Support | API, ONVIF Profile S/T Compliant |
| Video Frame Rate | Up to 30fps@2592x1944p |
| Video Resolution | 2592×1944, 2560×1920, 2048×1536, 1920×1440,1600×1200, 1280×960, 640×480, 480×360 |
| Video Streaming (3 Streaming) | Simultaneously H.265 and MJPEG (Multi Streaming) or Simultaneously H.264 and MJPEG (Multi Streaming) Independent Frame Rate and Bandwidth Control, VBR/CBR Mode |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf |
| Security | Multi User Authority, IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Edge Storage | micro SDHC/SDXC |
| Alarm and Event | |
| Event In | Onboot/Trigger/Network Loss/Tampering/Motion |
| Event Out Notification | E-mail, FTP |
| Audio | Line-In/Line-Out |
| Alarm Control | Alarm-In 1/Alarm-Out 1 |
| General | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operation Temperature | -10°C ~ +60°C |
| Operation Humidity | 0% ~ 95% |
| Electrical | |
| Power Source | DC 12V, PoE (IEEE 802.3af Class 2) |
| Power Consumption | 6.1W |
| Approval | KC, CE, FCC |
| Mechanical | |
| Dimension | Ø128 x 108(H)mm |
