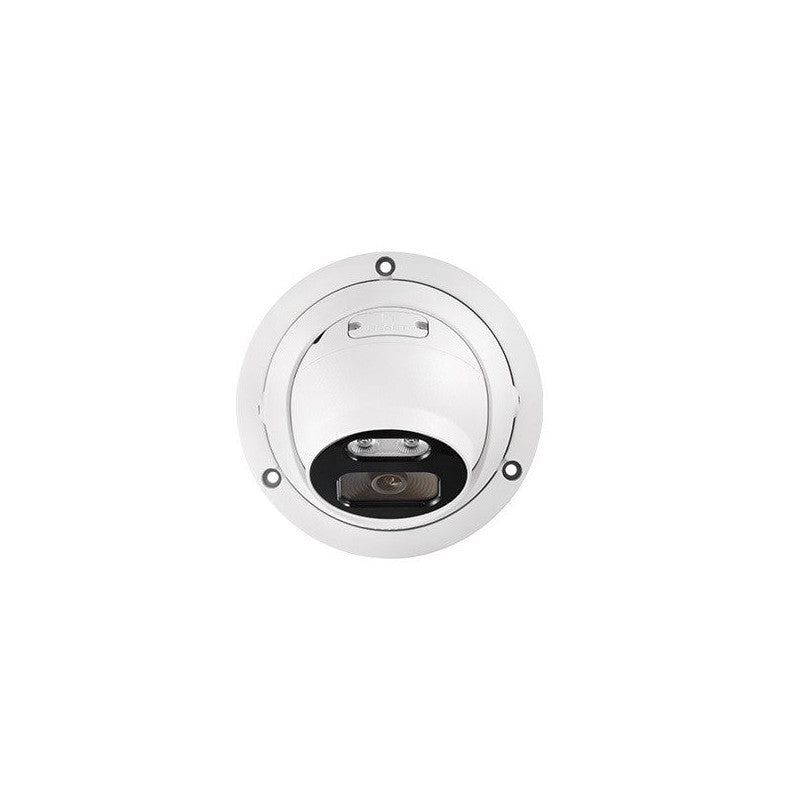

Idis Dc-d2511wer Lite 5MP 2.8mm Lens H.265 Twdr, IR 20m, Ip67, Ik10 Turret Camera
SKU: DCD2511WER
$144.40
The IDIS DC-D2511WER Lite is a 5MP turret camera engineered for robust outdoor surveillance, featuring a 1/2.8″ SONY IMX 335 Starvis CMOS sensor for high-quality imaging in low-light conditions. This IP67-rated and IK10 vandal-proof unit supports H.265 compression and ONVIF standards, ensuring efficient bandwidth usage and seamless integration with existing video management systems.
Key Features
- 5MP resolution with 1/2.8″ SONY IMX 335 Starvis CMOS sensor and fixed 2.8mm lens offering a 127.9° diagonal field of view
- 20-meter infrared night vision capability powered by two high-power IR LEDs
- Triple streaming support with H.265, H.264, and MJPEG compression for optimized network performance
- IP67 weatherproof rating and IK10 vandal-proof casing for durable outdoor installation
- 120dB True Wide Dynamic Range (WDR) and 2D/3D noise reduction for clear images in challenging lighting
- Power over Ethernet (PoE) support and local storage via microSDHC/SDXC card
- ONVIF Profile S/T compliant with API support for broad system compatibility
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ SONY IMX 335 Starvis CMOS Sensor |
| Total Number of Pixels | 2704 x 2104 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed Lens |
| Focal Length | f=2.8mm |
| F No. | F=1.6 |
| Iris Control | Fixed |
| Field of View | 127.9º(D), 106.9º(H), 56.9º(V) |
| Shutter Speed Control | Min. 1/100,000 sec ~ Max. 1/2 sec |
| Day and Night Mode | Auto / Day(Color) / Night(BW) / External |
| Infrared Distance | 20 m |
| Auto White Balance Mode | Automatic, Manual |
| Noise Reduction | 2DNR/3DNR |
| Backlight Correction | 120dB (WDR) |
| Network | |
| Video Compression | H.265 Main profile, H.264(High, Main, Base line profile), MJPEG |
| SDK Support | API, ONVIF Profile S/T Compliant |
| Video Frame Rate | Up to 30fps@2192x1944p |
| Video Resolution | 2592×1944, 2560×1920, 2048×1536, 1920×1440,1600×1200, 1280×960, 640×480, 480×360 |
| Video Streaming (3 Streaming) | Simultaneously H.265 and MJPEG (Multi Streaming) or Simultaneously H.264 and MJPEG (Multi Streaming) Independent Frame Rate and Bandwidth Control, VBR/CBR Mode |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf |
| Security | Multi User Authority, IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Edge Storage | micro SDHC/SDXC |
| Alarm and Event | |
| Event In | On boot/Trigger/Network Loss/Tampering/Motion |
| Event Out Notification | E-mail, FTP |
| Audio | – |
| Alarm Control | – |
| General | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operation Temperature | -10°C ~ +50°C |
| Operation Humidity | 0% ~ 95% |
| Electrical | |
| Power Source | DC 12V, PoE (IEEE 802.3af Class 2) |
| Power Consumption | 3.82W |
| Approval | KC, CE, FCC |
| Mechanical | |
| Dimension | Ø125.0 x 90.2(H)mm |
