Dahua Idis Da-pi2101 Single Port POE Injector
SKU: DAPI2101
$192.84

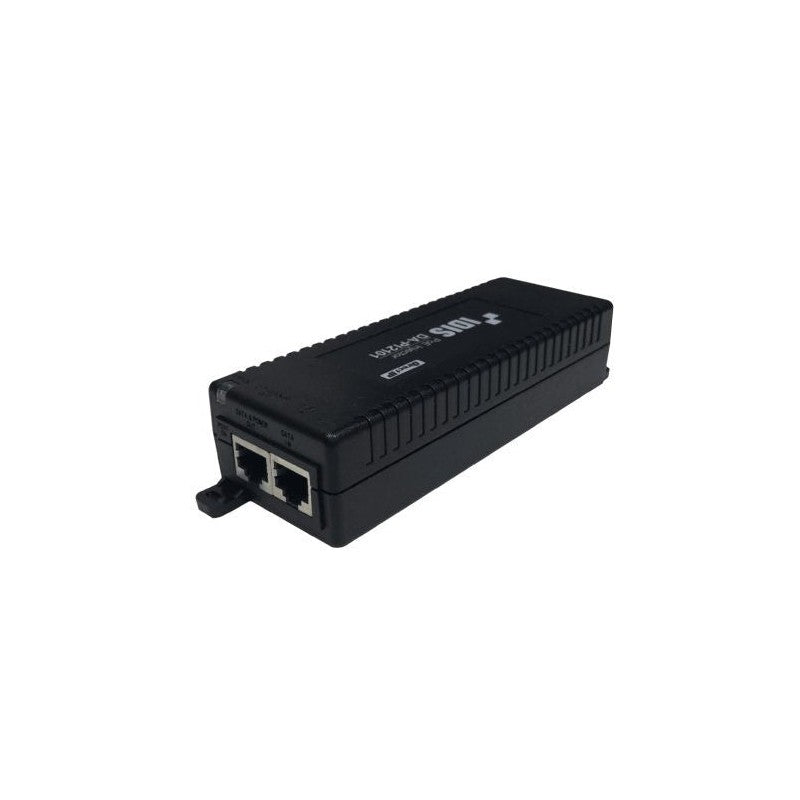

The Dahua Idis Da-pi2101 Single Port POE Injector is a compact power delivery unit designed to transmit both data and electrical power to network devices over a single Ethernet cable. Supporting IEEE 802.3af and 802.3at standards, this injector provides up to 30W of power to compatible IP cameras and VoIP phones, simplifying installation by eliminating the need for separate power sources.
Key Features
- Supports IEEE 802.3af and 802.3at PoE standards with a maximum power output of 30W
- Features a single RJ45 Ethernet data port with Auto-MDI/MDI-X sensing
- Supports 10/100/1000 BASE-T gigabit Ethernet speeds for high-bandwidth data transfer
- Compatible with CAT5 or better cabling, supporting distances of up to 100 meters
- Incorporates built-in overcurrent, overvoltage, and short circuit protection mechanisms
- Utilizes a compact form factor suitable for discreet placement in indoor environments
- Designed for plug-and-play installation without requiring advanced configuration
- Operates reliably within a temperature range of 0°C to 40°C
Technical Specifications
| RJ45 Ethernet Interface_DATA I | |
| port | 1 ch |
| Connectivity | RJ45, Auto-MDI/MDI-X sensing |
| Wire Title | CAT5 or better |
| Distance | Up to 100m |
| Speed | 10/100/1000 BASE T |
| RJ45 Ethernet Interface_PoE | |
| port | 1 ch |
| Pin Assignment and Polarity | 4/5( ), 7/8(-) |
| PSE Power | 55V DC, Max. 30W |
| Distance | Up to 100m |
| Speed | 10/100/1000 BASE T |
| Supported Standards | IEEE 802.3at |
| General | |
| Diemensions(W x H x D) | 53mm x 32.5mm x 140mm (2.1″ x 1.3″ x 5.5″) |
| Weight | 200g (0.44lb) |
| Operation Temperature | -15°C ~ 45°C (5℉ ~ 113℉) |
| Power Input | 100 ~240V AC, 0.8A |
| Approvals | FCC, CE, KC |
