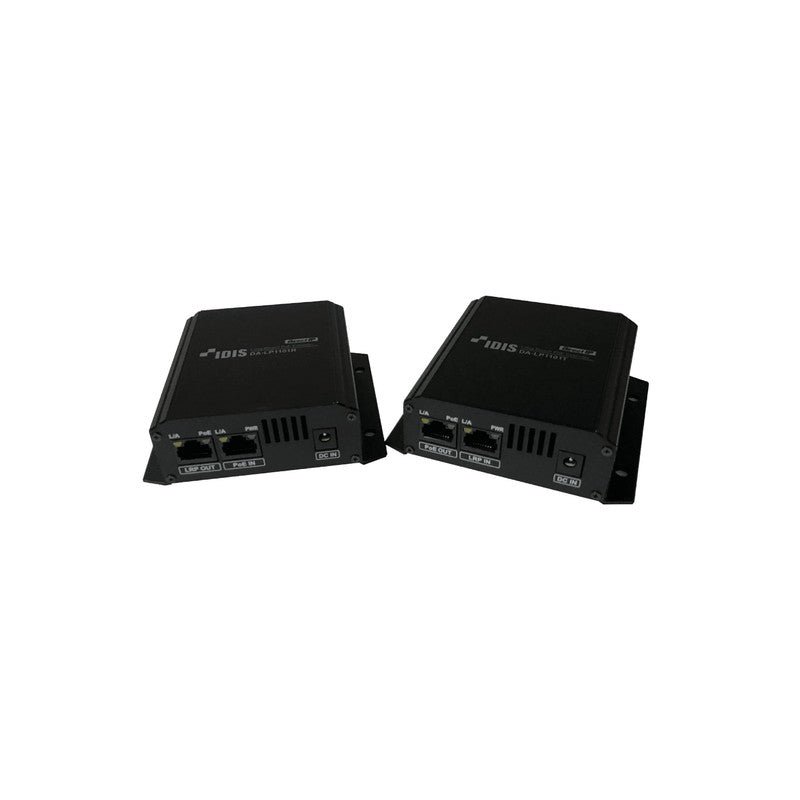

Dahua Idis Da-lp1101r Long Reach POE Receiver Recorder End
SKU: DALP1101R
$316.86
The Dahua Idis Da-lp1101r Long Reach POE Receiver Recorder End is a high-performance extender engineered to transmit data and power over Ethernet up to 500 meters, significantly exceeding the standard 100-meter limit. Designed for large-scale installations in campuses, warehouses, and industrial sites, this device supports Cat5e or higher cabling to ensure reliable connectivity for remote endpoints.
Key Features
- Extends data and power transmission up to 500 meters over Ethernet
- Compatible with Cat5e or higher cabling standards
- Supports both PoE (802.3af) and PoE+ (802.3at) standards
- Efficiently powers IP cameras and access control systems without additional power sources
- Plug-and-play design eliminates the need for complex setup or additional software
- Robust construction ensures reliable performance in harsh environmental conditions
Technical Specifications
| PoE INJECTOR / REPEATER FUNCTION | |
| port | RJ45 x1 with PD RJ45 x1 with PSE |
| connectivity | RJ45, Auto-MDI/MDI-X Sensing |
| Power Input | IEEE 802.3at, 48 ~ 56V DC |
| Power Output | Max. 720mA |
| PoE Standard | IEEE 802.3at PD IEEE 802.3at PSE |
| PSE Budget | up to 30W |
| Speed | 10/100/1000Mbps |
| LONG REACH PoE EXTENDER FUNCTION | |
| port | RJ45 x1 with PD RJ45 x1 with PSE |
| connectivity | RJ45, Auto-MDI/MDI-X Sensing |
| Power Intput | IEEE 802.3at, 48 ~ 56V DC |
| Power Output | Max. 720mA |
| PoE Budget | Up to 30W(Depending on Cable Distance and Power Input) |
| cable | UTP CAT5E or Above |
| Speed | 10/100Mbps |
| LEDs and BUTTON | |
| Link Status LED | 2 Yellow LED(Link/Activity LED per Ethernet port) |
| PoE Status | 1 Green LED(PSE LED) |
| Reset Button | None |
| Power LED | 1 Green LED |
| GENERAL | |
| Dimensions (W x H x D) | 104 x 34 x 96(mm) |
| Unit Weight | 226g |
| Operating Temperature | -10℃ ~ 50℃ |
| Operating Humidity | 0% ~ 90% |
| Power Input | 56VDC |
| Power Consumption | 56V=, 0.786A, 44W |
| Approvals | KC, CE, FCC |
