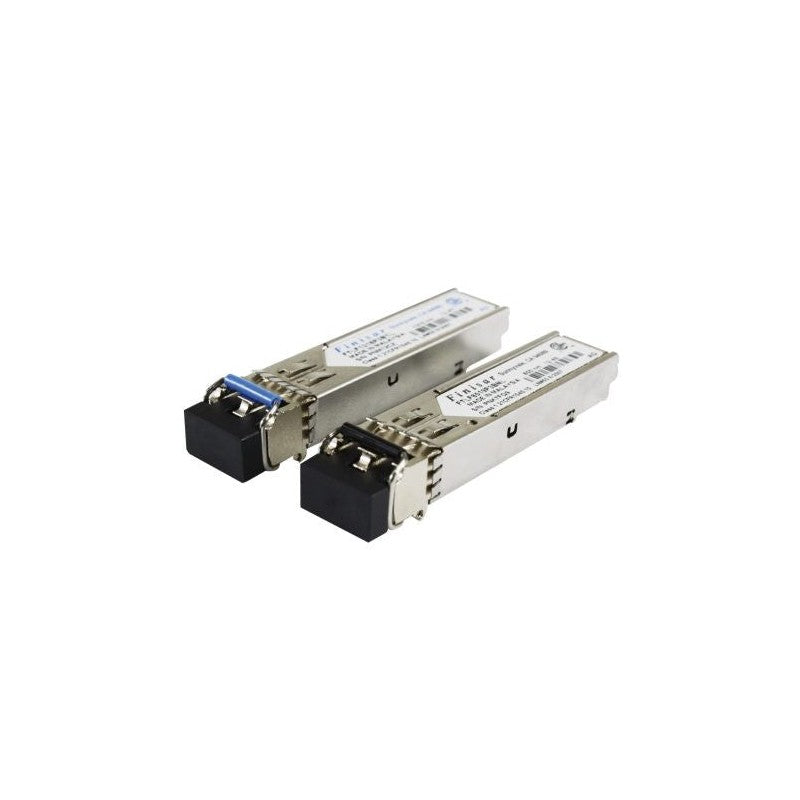

IDIS DA-FTLF8519P3BNL SFP Transceiver

The IDIS DA-FTLF8519P3BNL SFP Transceiver is a hot-pluggable optical module designed for high-speed data transmission over multimode fiber networks. Operating at an 850 nm wavelength, it supports data rates up to 2.125 Gbps for Gigabit Ethernet and Fiber Channel applications within a 500-meter range.

Key Features

• Supports data rates of 1.062 Gb/s, 1.25 Gb/s, and 2.125 Gb/s
• Optical center wavelength of 830 to 860 nm for multimode fiber (MMF) compatibility
• Range of up to 500 meters on 50/125 µm MMF
• Hot-pluggable design allows for installation and replacement without service interruptions
• Complies with IEEE 802.3z and SFF-8472 industry standards
• Features digital diagnostics for real-time monitoring of temperature, power levels, and optical signal strength
• Compact SFP form factor with dimensions of 13.7mm x 12.4mm x 56.6mm
• Operating temperature range of 0°C to 85°C
