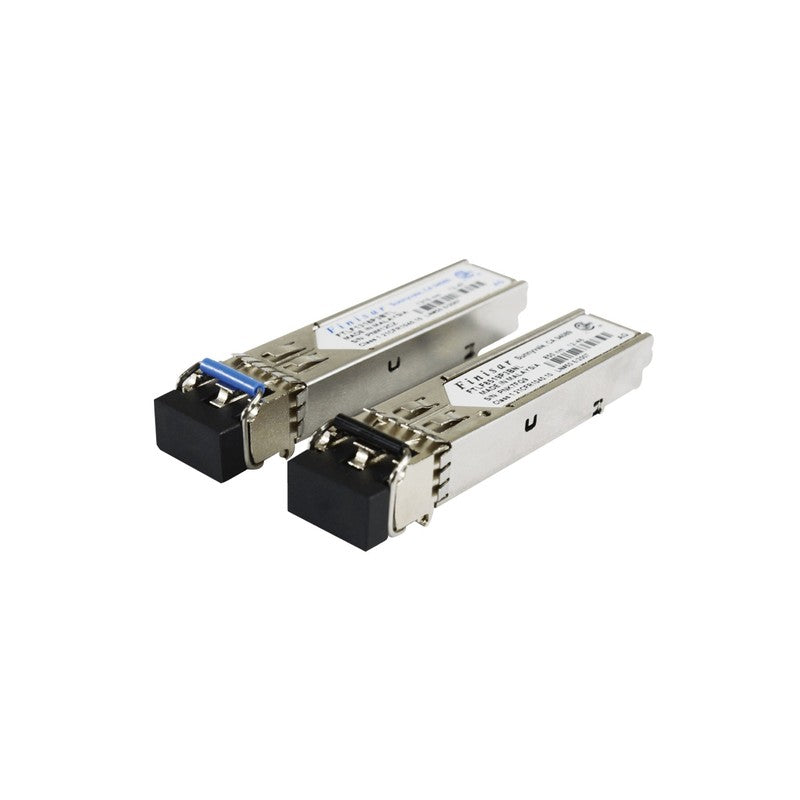

IDIS DA-FTLF1318P3BTL SFP Transceiver
SKU: DASPFTLF1318P3BTL
$192.84
The IDIS DA-FTLF1318P3BTL SFP Transceiver is a compact optical module engineered for long-distance data transmission over single-mode fiber. Designed for Gigabit Ethernet and fiber channel networks, this transceiver supports data rates of up to 1.25 Gbps with a maximum reach of 10 kilometers.
Key Features
- Supports data rates of 1.062 Gb/s to 1.25 Gb/s for Gigabit Ethernet applications
- Operates at a 1310nm wavelength with a maximum transmission distance of 10 km over single-mode fiber
- Features a duplex LC connector for straightforward integration into existing fiber infrastructure
- Compliant with the SFP MSA (Multi-Source Agreement) for broad interoperability with networking equipment
- Includes integrated Digital Diagnostics Monitoring (DDM) for real-time tracking of temperature, voltage, and optical power
- Consumes less than 1 watt of power, ensuring energy-efficient operation
- Meets RoHS, FCC, CE, and KC environmental and safety standards
- Measures 13.7mm x 12.4mm x 56.6mm and weighs 17.5g
Technical Specifications
| SFP TRANSCEIVER | |
| Optical Center Wavelength | 1265 to 1600nm |
| Output Pot.Power | -9.5 to -3 dBm |
| Average RX Sensitivity @ 1.25Gbs | -19 |
| Data Rate | 1.062Gb/s to 1.25Gb/s |
| General | |
| Diemensions(W x H x D) | 13.7mm x 12.4mm x 56.6mm (0.5″ x 0.5″ x 2.2″) |
| Weight | 17.5g (0.04lb) |
| Operation Temperature | 0°C to 85°C |
| Approvals | FCC, CE, KC |
