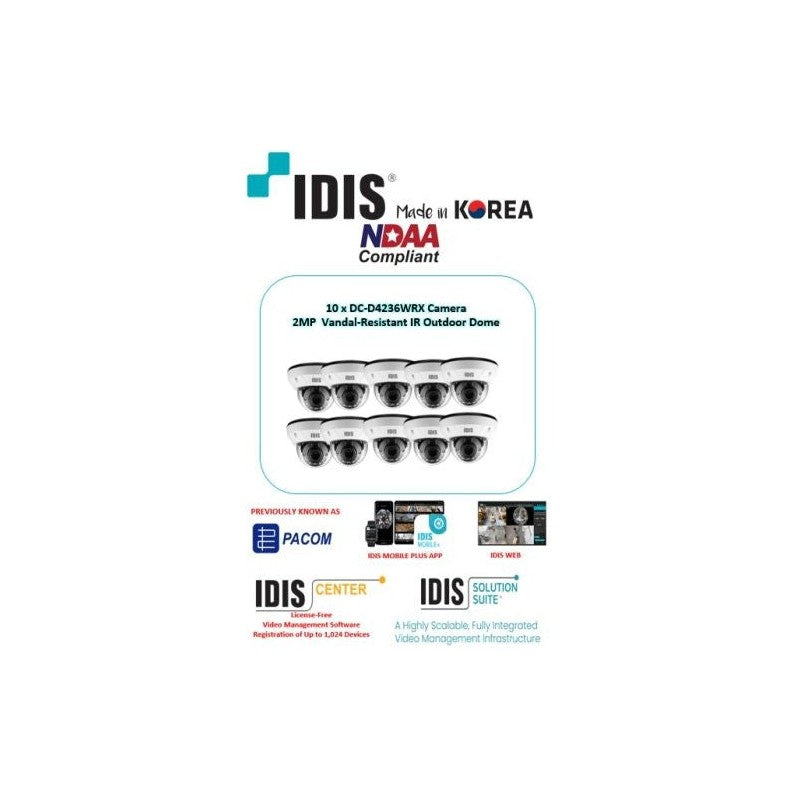

Idis 2MP 10x Full Hd Vandal-resistant IR Dome Camera Kit, Ndaa Compliant
SKU: IDISNDAACAMERAKIT
$4,979.60
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
2.5″ 1tb HDD – Surveillance HDD For Mobile Dvrs & Nvrs
$287.61
Axis 2.5″ 2tb HDD – Surveillance HDD For Mobile Dvrs & Nvrs
$293.46
Seagate Skyhawk SSD Surveillance 2tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$539.00
Seagate Skyhawk SSD Surveillance 4tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$759.00
Seagate St6000vx008 Skyhawk 6tb 3.5 Inch Sata Hard Drive
$1,279.00
Seagate Skyhawk SSD Surveillance 8tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$1,215.00
Seagate Skyhawk St10000vx0004 10tb 3.5 Inch Sata 6gb/s Surveillance Hard Drive
$1,485.00
Seagate Skyhawk Hasea16tb-shaisv2562 16tb 3.5 Inch Sata HDD 6gb/s 256mb Cache 7200rpm 26.11hx101.85wx146.99d (mm)
$1,695.00
Seagate Exos HDD 16tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,365.00
Western Digital Purple HDD Surveillance 2tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$495.00
Western Digital Wd33purz Wd Purple 3tb 3.5 Inch Sata Iii 6gb/s Surveillance HDD
$445.00
Western Digital Hawd-pp35-3tb1 Purple HDD Surveillance 3tb 3.5" Sata Iii (6gb/s) 5400 Rpm 256 Mb Cache
$495.00
Western Digital Purple HDD Surveillance 4tb 3.5" Sata Iii( 6gb/s) 5400 Rpm
$565.00
Western Digital Wd44purz Wd Purple Surveillance 4tb 3.5 Inch Sata HDD
$645.00
Western Digital Wd64purz Wd Purple HDD Surveillance 6tb 3.5 Inch Sata Iii 6gb/s 5400rpm
$895.00
Western Digital Wd85purz Purple HDD Surveillance 8tb 3.5 Inch Sata 6gb/s 5400 Rpm Cmr
$945.00
Western Digital Wd102purp Purple Pro SSD Surveillance 10tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,395.00
Western Digital Wd Purple Pro Wd141purp 14tb 3.5 Inch Sata Iii 6gb/s 7200rpm Surveillance HDD
$1,295.00
Western Digital Purple Pro SSD 18tb 3.5" Sata Iii( 6gb/s) 7200 Rpm
$1,495.00
Western Digital Wuh721816ale6l4 Ultrastar DC Hc550 HDD 16tb 3.5 Inch 7200rpm Sata 6gb/s HDD 512mb Buffer 26.1mm Z-height 0f38462
$1,695.00
Western Digital Ultrastar DC Hc550 16tb Sata 6gb/s 3.5 Inch 7200rpm Data Center HDD
$1,995.00
Hikvision Monitor Ds-d5022f2-1v2s 21.5 Inch FHD 100hz Va Monitor With Speaker, Hdmi, 6.5ms, Vesa 75×75
$190.50
Hikvision Ds-d5024f2-bv2s 23.8″ FHD Surveillance Monitor With Speaker
$225.60
Hikvision Ds-d5032f3-1v0s 32″ Full Hd Commercial Monitor Hdmi, VGA & Speakers
$463.11
Hikvision Ds-d5043f3-1v0s 43″ Commercial Monitor Full Hd Hdmi/vga/usb, Built-in Speaker
$687.75
Dahua 24"(23.8) 1920x1080 FHD LED Monitor 1 X HDMI Audio In Built-in Speaker
$271.55
Dahua 32"(31.5) 1920x1080 FHD LED Monitor 24/7 1 X HDMI 1 X VGA Built-in Speaker
$465.05
Dahua 43" 3840x2160 4K UHD LED Monitor 24/7 2 X Hdmi,1 X Vga,1 X USB Audio In Built-in Speaker
$879.36
Dahua 55" 3840x2160 4K UHD LED Monitor 24/07 2 X HDMI 1 X VGA 1 X Display Port Audio In Built-in Speaker
$2,459.70
Uniview 22" 1920x1080 FHD LED Monitor 1 X HDMI 1 X VGA Audio In
$298.12
Uniview Mw3232-v-k2 32 Inch FHD CCTV Monitor HDMI VGA Audio In Built-in Speaker
$559.24
Uniview 43" 3840x2160 4K UHD LED Monitor 24/7 2 X HDMI 2 X Display Port Audio Out Built-in Speaker
$1,189.44
Uniview 55" 3840x2160 4K UHD LED Monitor 2 X HDMI 2 X Display Port Audio Out Built-in Speaker
$1,513.98
Uniview 75" 3840x2160 4K UHD Monitor 1 X SD 2 X USB 1 X Display Port Audio In & Out Built-in Speaker
$5,324.82
Upgrades Subtotal:
$0.00
The IDIS 2MP 10x Full Hd Vandal-resistant IR Dome Camera Kit, Ndaa Compliant is a networked surveillance solution designed for high-security environments requiring robust durability and high-definition imaging. This IDIS camera captures 1080p video with a motorized varifocal lens and includes NDAA compliance to meet strict security procurement standards.
Key Features
- 1/2.8″ CMOS sensor with 1920 x 1080 resolution and progressive scan for detailed monitoring
- IK10-rated vandal-resistant casing and IP66 weatherproof housing for outdoor durability
- Motorized varifocal lens with a focal length range of 2.8mm to 12mm for flexible field of view
- Infrared LEDs providing effective night vision up to 30 meters in complete darkness
- True Wide Dynamic Range (WDR) and Digital Noise Reduction (DNR) for clear images in high-contrast and low-light conditions
- Power over Ethernet (PoE) support for simplified single-cable installation
- NDAA compliant and ONVIF compatible for seamless integration with network video management systems
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.8 ~ 12mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 98º(H), 51º(V), 116º(D) Tele : 33º(H), 19º(V), 38º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 67° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 0.64A, 7.7W PoE, IEEE 802.3af (Class 3), 7.8W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø155 x 105mm (Ø6.1″ x 4.13″) |
| Weight | 0.985kg (2.17lb) |
