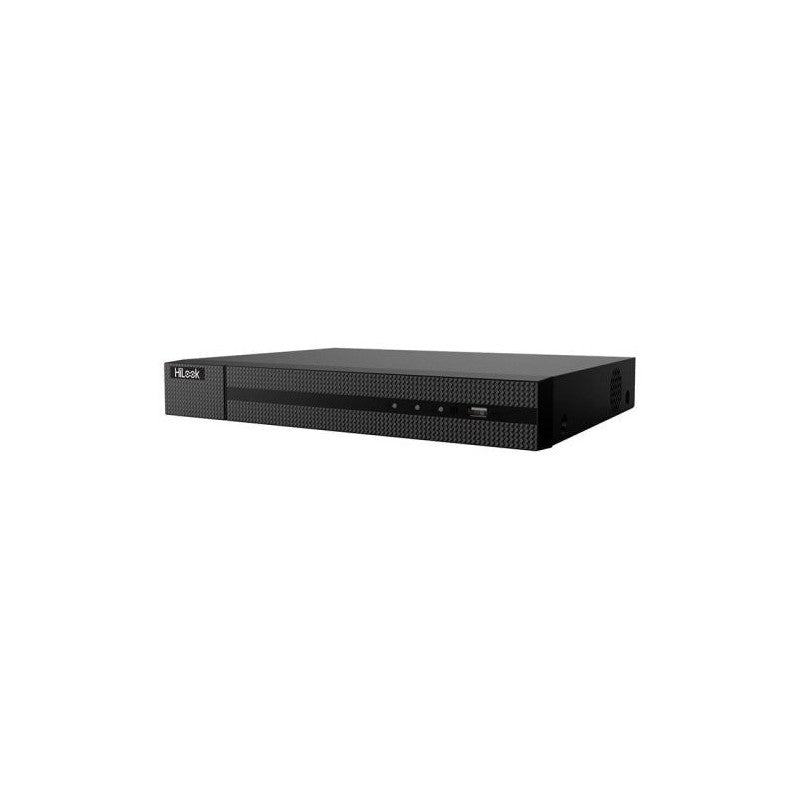

Hikvision HiLook NVR-216MH-K/16P Pro 16-Channel 16CH PoE 4K NVR 16 PoE Ports, AI Analytics, Dual HDD Bays
SKU: NVR216MHC16P2
$588.30
The Uniview HiLook NVR-216MH-K/16P Pro is a 1U rack-mount network video recorder engineered for 16-channel commercial IP surveillance deployments. This unit integrates 16 built-in PoE ports to support plug-and-play camera commissioning while delivering 4K recording capabilities and AI analytics for enhanced monitoring efficiency.
Key Features
- 16-channel capacity with 16 built-in PoE ports for direct camera power and data transmission
- Supports 4K (3840 x 2160) video resolution for high-definition surveillance footage
- Includes AI analytics features for advanced video processing and event detection
- 1U rack-mount form factor suitable for standard commercial server racks
- Designed for plug-and-play IP surveillance system installation
- Dual HDD bays for expanded local storage and recording retention
Technical Specifications
| Model | HiLook NVR-216MH-K |
| Camera Channels | 16 IP cameras |
| PoE Ports | 16 built-in PoE ports |
| AI Analytics Support | Facial recognition, perimeter protection, Motion Detection 2.0, ANPR, VCA (requires compatible AI cameras) |
| Face Library Capacity | 16 libraries, 20,000 face images total (1 GB max) |
| Decoding Capability | 2-ch at 12MP, 4-ch at 8MP, 8-ch at 4MP, 16-ch at 1080p |
| Storage Bays | 2 x SATA (up to 16TB per drive, 32TB total) |
| Video Output | 1 x HDMI (4K), 1 x VGA (independent) |
| Network Interface | 1 x Gigabit Ethernet |
| Incoming Bandwidth | 160 Mbps |
| USB Ports | 2 x USB 2.0 |
| Alarm I/O | 4 alarm inputs / 1 alarm output |
| Audio I/O | Audio input / audio output |
| Power Consumption | 15 W maximum (excluding HDD and PoE load) |
| Operating Temperature | -10 degrees C to 55 degrees C |
| Humidity | 10% to 90% non-condensing |
| Dimensions | 385 x 315 x 52 mm |
| Weight | Under 3 kg (without HDD) |
| Certifications | CE, FCC, IC, CB, UL, RoHS, RCM, UKCA, WEEE, BIS |
