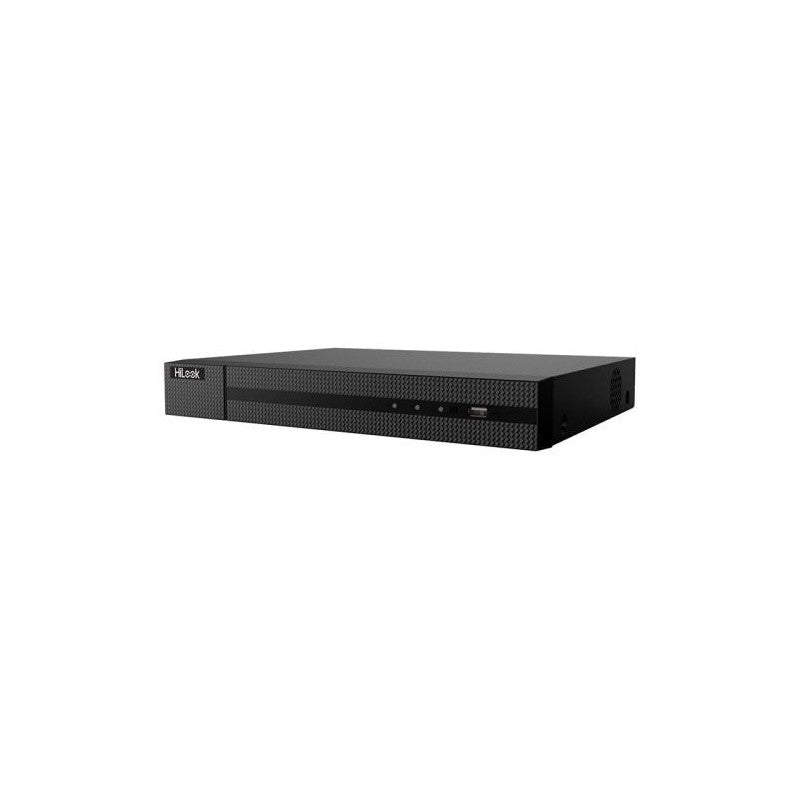

Uniview Hilook Nvr-108mh-c-8p-d 8x POE 8 Channel 4K Hdmi, 1x Sata Network Video Recorder
SKU: NVR108MHC8P
$295.80
The Uniview NVR-108MH-C-8P-D is an 8-channel PoE network video recorder designed for small to medium IP camera installations. This compact unit integrates camera power delivery with 4K HDMI display output, providing a streamlined solution for managing networked video systems.
Key Features
- 8-channel PoE network video recorder
- Supports 4K HDMI output
- Includes 1x SATA interface for storage
- Compact and lightweight form factor
- Integrated PoE power delivery for IP cameras
Technical Specifications
| IP Video Inputs | 8 channels, up to 8MP resolution |
| Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Recording Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 8 channels |
| Decoding Capability | 1-ch at 8MP / 4-ch at 1080p |
| Incoming / Outgoing Bandwidth | 80 Mbps / 80 Mbps |
| HDMI Output | 1-ch, up to 4K (3840 x 2160) at 30Hz; simultaneous HDMI/VGA output |
| VGA Output | 1-ch, up to 1920 x 1080p at 60Hz; simultaneous HDMI/VGA output |
| Audio Output | 1-ch, RCA (Linear, 1 kilohm) |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 kilohm) |
| PoE Ports | 8 x RJ-45, IEEE 802.3af/at, up to 75W total PoE power |
| Network Interface | 1 x RJ-45 10/100 Mbps self-adaptive Ethernet |
| Remote Connections | Up to 64 |
| SATA Interfaces | 1 x SATA, up to 6TB per disk |
| USB Interfaces | 2 x USB 2.0 |
| Power Supply | 48 VDC, up to 90W total, up to 10W without PoE (no HDD) |
| Working Temperature | -10°C to 45°C |
| Dimensions (W x D x H) | 265 x 225 x 48 mm |
| Weight (without HDD) | Under 1 kg |
UD10852B Baseline HiLook Quick Start Guide of Digital Network Video Recorder V3.5.20 20180703.pdf
