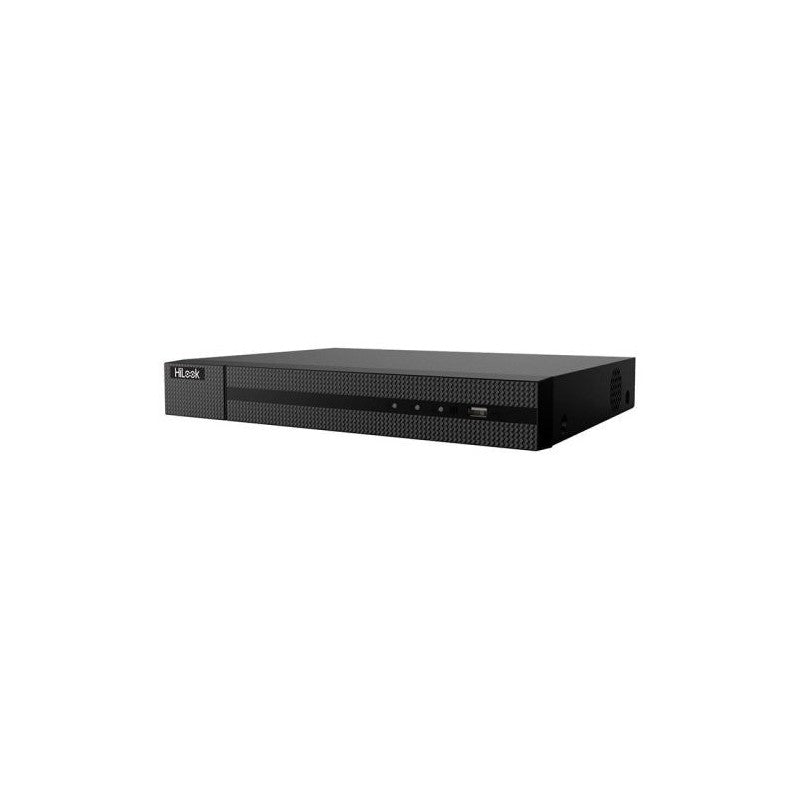

Uniview Hilook Nvr-104mh-c-4p 4xpoe 4 Channel 4K Hdmi, 1x Sata Network Video Recorder
SKU: NVR104MHC4P
$215.07
The Uniview Hilook NVR-104MH-C-4P is a compact 4-channel network video recorder engineered for small IP camera installations that require a clean, cabled setup. This device integrates four built-in PoE ports, eliminating the need for a separate PoE switch while supporting 4K HDMI output for high-resolution monitoring.
Key Features
- 4-channel network video recorder
- 4 built-in PoE ports
- 4K HDMI output
- 1x SATA interface for storage
- Uniview Hilook platform
- Compact form factor for small installations
Technical Specifications
| IP Video Input | 4 channels, up to 8MP resolution |
| HDMI Output | 1-ch, 4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| VGA Output | 1-ch, 1920 x 1080p/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz; simultaneous HDMI/VGA output supported |
| Decoding Format | H.265+, H.265, H.264+, H.264, MPEG4 |
| Decoding Capability | 1-ch at 8MP or 4-ch at 1080p |
| Recording Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| PoE Ports | 4 x RJ-45 10/100 Mbps, IEEE 802.3 af/at, max 50W total |
| Network Interface | 1 x RJ-45 10/100 Mbps self-adaptive Ethernet |
| Remote Connections | Up to 16 |
| HDD Interface | 1 x SATA, up to 6TB per disk |
| USB Interface | 2 x USB 2.0 |
| Power Supply | 48 VDC, max 65W; under 10W without PoE and without HDD |
| Working Temperature | -10 to +55 degrees C |
| Working Humidity | 10 to 90% |
| Dimensions (W x D x H) | 265 x 225 x 48 mm |
| Weight (without HDD) | Under 1 kg |
