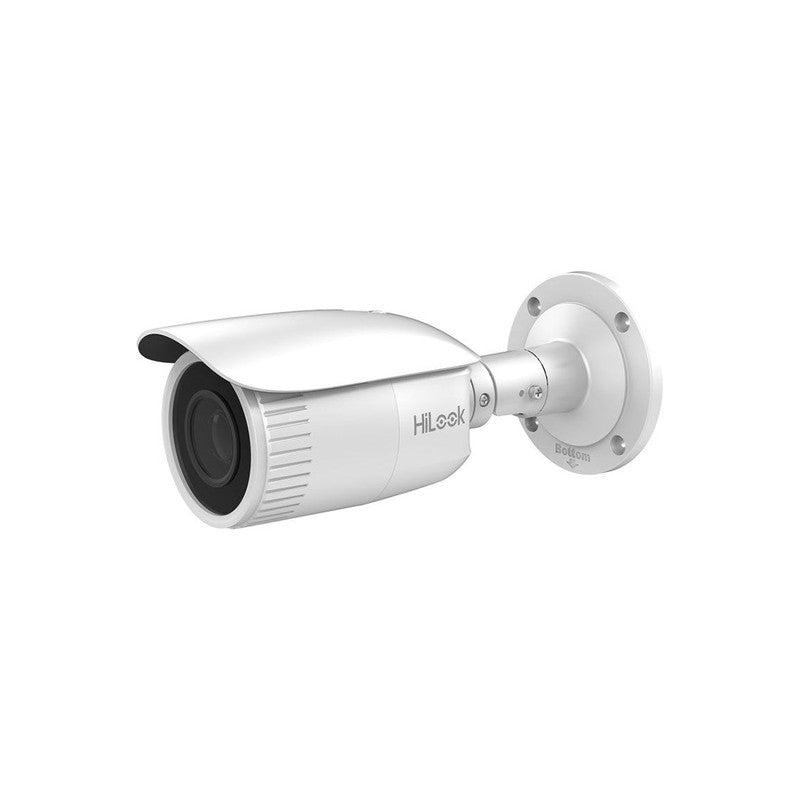

Hikvision HiLook 4MP IPC-B640H-Z Motorized Lens Network IR Bullet 2.8~12mm Motorised Network Camera
SKU: IPCB640HZ
$327.74
The Hikvision HiLook 4MP IPC-B640H-Z Motorized Lens Network IR Bullet 2.8~12mm Motorised Network Camera, supplied by Uniview, is a 4MP outdoor network camera designed for perimeter and directional coverage. It features a 2.8-12mm motorised varifocal lens with autofocus, enabling remote focal length and focus adjustment to simplify commissioning on driveways, entry gates, and commercial building approaches.
Key Features
- 2.8-12mm motorised varifocal lens with autofocus for remote adjustment of focal length and focus
- 4MP resolution at 2560 x 1440 pixels, supporting 20fps on 50Hz systems
- 30m infrared night vision with 850nm IR illuminators and automatic IR cut filter
- 120dB true wide dynamic range (WDR) to manage strong backlighting and challenging exposure conditions
- H.265+ compression to reduce bandwidth and storage overhead
- IP67 weather resistance, TVS 2000V lightning protection, and operating range of -30°C to 60°C
Technical Specifications
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 2560 x 1440 |
| Frame Rate | 20fps at 2560 x 1440; 25fps (50Hz) / 30fps (60Hz) at lower resolutions |
| Focal Length | 2.8 to 12mm motorised varifocal (-Z: autofocus; -V: manual focus) |
| Aperture | F1.6 |
| Field of View | Horizontal: 98 to 28 degrees; Vertical: 51 to 16 degrees; Diagonal: 115 to 32 degrees |
| Minimum Illumination | Colour: 0.01 Lux at F1.2 (AGC ON); 0.018 Lux at F1.6 (AGC ON) |
| IR Range | Up to 30m at 850nm wavelength |
| Wide Dynamic Range | 120dB true WDR |
| Day/Night | IR cut filter with auto and scheduled switching |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG (sub-stream) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Local Storage | Micro SD/SDHC/SDXC up to 128GB; NAS (NFS, SMB/CIFS); ANR supported |
| Power Supply | 12VDC (plus or minus 20%) or PoE (802.3af, Class 3); max 12.9W (-Z) |
| Weather Protection | IP67; TVS 2000V lightning, surge, and voltage transient protection |
| Operating Temperature | -30 degrees C to 60 degrees C; humidity 95% or less (non-condensing) |
| Housing Material | Metal |
| Dimensions | 105mm x 105mm x 145mm; camera weight approx. 1035g |
| Network Interface | 1 x RJ45 10M/100M self-adaptive Ethernet port; ONVIF Profile S and G; ISAPI |
