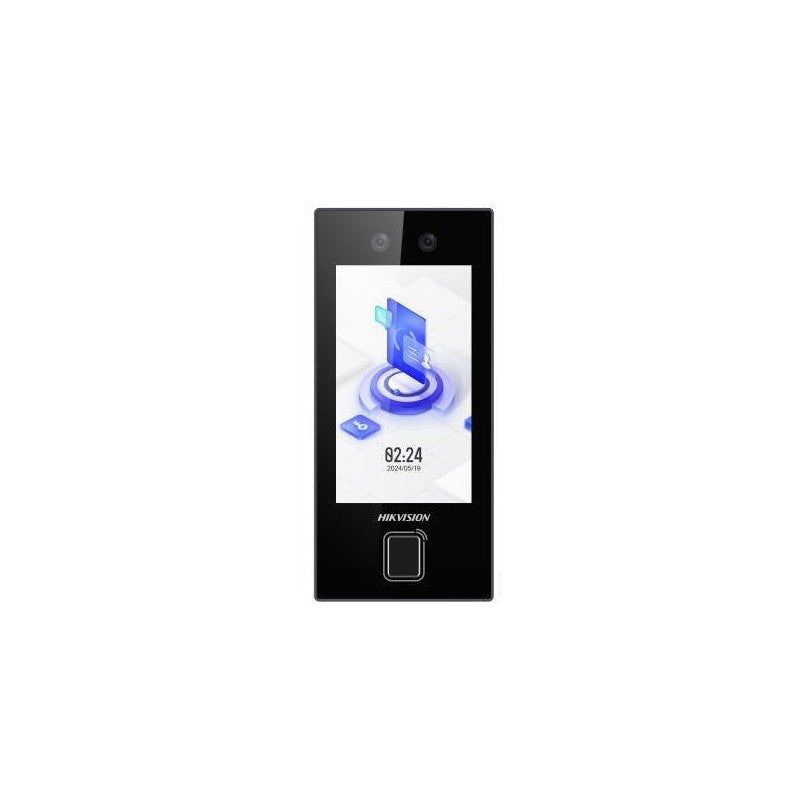

Hikvision Value Series Ds-k1t344mfx-e1 Face Recognition Terminal With Fingerprint, M1 Card Reader, 4.3-inch Touchscreen & POE
SKU: DSK1T344MFXE1
$486.51
The Hikvision DS-K1T344MFX-E1 Value Series Face Recognition Terminal provides integrated multi-modal access control through a compact wall-mounted unit. It supports face, fingerprint, M1 card, PIN, and QR code authentication, featuring a 4.3-inch touchscreen and dual power options via IEEE 802.3at PoE or 12VDC for versatile deployment in commercial and institutional environments.
Key Features
- Five-method authentication supporting face, fingerprint, M1 card, PIN, and QR code access from a single terminal
- 2MP wide-angle camera enabling face recognition at distances of 0.3m to 1.5m with under 0.2 seconds recognition time
- 4.3-inch LCD touchscreen with 480 x 854 resolution for interactive PIN entry and system prompts
- Flexible power supply options including IEEE 802.3at PoE and 12VDC
- Comprehensive connectivity interfaces including RS-485, Wiegand, lock control, exit button, door contact, tamper, and USB
- Local storage capacity for up to 3,000 users, faces, fingerprints, and cards
- Event logging capability for up to 150,000 records
Technical Specifications
| Model | DS-K1T344MFX-E1 |
| Product Type | Value Series face recognition access control terminal |
| Authentication Methods | Face, fingerprint, M1 card, PIN and QR code recognition |
| Camera | 2MP wide-angle camera for face and QR code recognition |
| Screen | 4.3-inch LCD touchscreen, 480 x 854 resolution |
| Face Recognition Distance | 0.3m to 1.5m |
| Recognition Speed | Less than 0.2 seconds per user |
| Recognition Accuracy | Listed accuracy of at least 99% |
| User Capacity | Up to 3,000 users |
| Face Capacity | Up to 3,000 faces |
| Fingerprint Capacity | Up to 3,000 fingerprints |
| Card Capacity | Up to 3,000 M1 cards (13.56MHz) |
| Event Record Capacity | Up to 150,000 events |
| Audio | Two-way audio supported with compatible client software, indoor station or main station |
| Interfaces | Network, RS-485, Wiegand, lock control, exit button, door contact, tamper, USB |
| Power Supply | 12VDC or IEEE 802.3at PoE |
| Configuration | Mobile web and PC web configuration supported |
| Weather Rating | IP65 protective design |
| Installation | Wall mounting |
| Dimensions | 165.2 x 75.7 x 25mm |
| Net Weight | Approx. 0.36kg |
