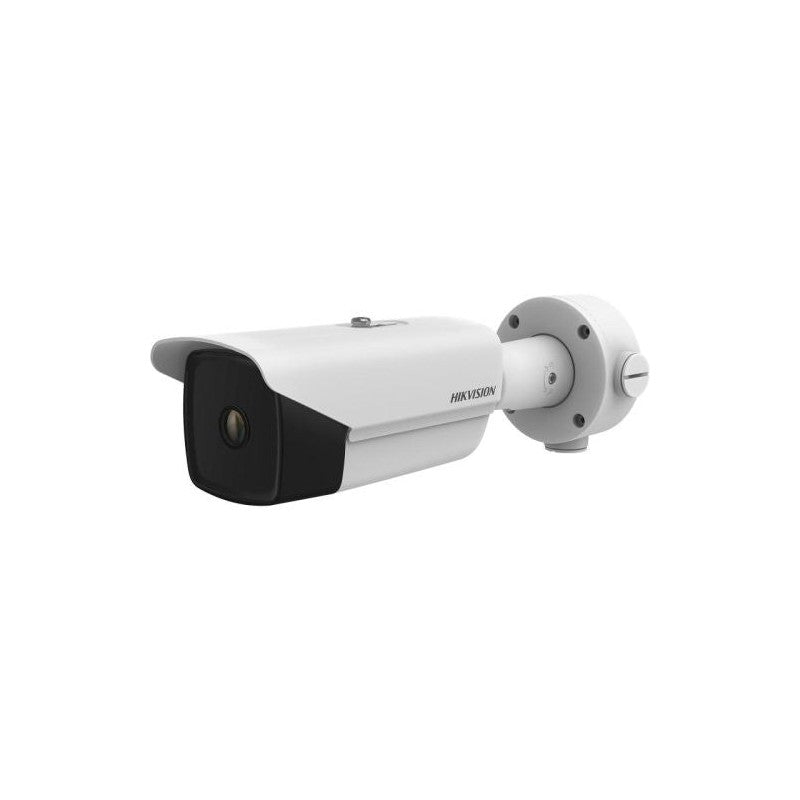

Hikvision Thermographic Ds-2td2137t-4-qy Bullet Camera, 384x288,4.4mm Fire Detection
SKU: DS2TD2137T4QY
$6,309.60
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-1260zj Junction Box White Or Black
$44.25
Hikvision Ds-1275zj-sus Stainless Steel Horizontal Pole Mount
$54.78
Hikvision Ds-1280zj-s Junction Box With Gland, Suits Hik-2cd26, 2cd2t, 2cd4a, 2cd22, 2cd42, E16d5
$50.10
Upgrades Subtotal:
$0.00
The Hikvision DS-2TD2137T-4/QY is a thermographic network bullet camera engineered for early fire detection in industrial perimeters, outdoor storage yards, and fuel handling areas. It utilizes a high-sensitivity Vanadium Oxide sensor to resolve minor thermal variations and identify smoke signatures before they escalate into significant fire events.
Key Features
- 384×288 Vanadium Oxide Uncooled Focal Plane Array sensor with 17 µm pixel pitch and NETD ≤ 35 mK
- 4.4 mm lens with F1.0 aperture providing a 90° × 65.3° field of view
- Temperature measurement range of -20°C to 550°C with accuracy of ±2°C or ±2%
- 21 configurable measurement rules supporting points, areas, and line zones
- Onboard smoking detection algorithm for early warning independent of temperature thresholds
- Video content analysis for human detection at 28 m and vehicle detection at 84 m
- IP67 and IK10-rated enclosure designed for continuous outdoor operation from -40°C to 65°C
Technical Specifications
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Array (VOx UFPA) |
| Thermal Resolution | 384 x 288 |
| Pixel Pitch | 17 um |
| Spectral Range | 8 um to 14 um |
| NETD | 35 mK or less at 25 degrees C, F1.0 |
| Focal Length | 4.4 mm |
| Aperture | F1.0 |
| Field of View | 90 degrees x 65.3 degrees (H x V) |
| IFOV | 3.86 mrad |
| Digital Zoom | x2, x4, x8 |
| Temperature Measurement Range | -20 degrees C to 550 degrees C (-4 degrees F to 1022 degrees F) |
| Temperature Accuracy | Plus or minus 2 degrees C or plus or minus 2%, whichever is greater |
| Temperature Measurement Rules | 21 rules total (10 points, 10 areas, 1 line) |
| VCA Rules | Up to 8 rules across 4 types: line crossing, intrusion, region entrance, region exiting |
| VCA Detection Range | Humans: 28 m; Vehicles: 84 m |
| Video Compression | H.265 / H.264 (main stream); H.265 / H.264 / MJPEG (sub and third stream) |
| Local Storage | MicroSD/SDHC/SDXC up to 256 GB; NAS (NFS, SMB/CIFS); ANR supported |
| Power Supply | 24 VAC plus or minus 25%, 12 VDC plus or minus 25%, PoE (IEEE 802.3af, Class 3) |
| Power Consumption | Max 5.5 W |
| Protection Rating | IP67, IK10, TVS 4000V lightning protection |
| Operating Temperature | -40 degrees C to 65 degrees C (-40 degrees F to 149 degrees F); humidity 95% or less |
| Dimensions | 351.3 mm x 113.5 mm x 115.2 mm |
| Weight | Approx. 1.77 kg |
| Detector Guarantee | 10 years |
