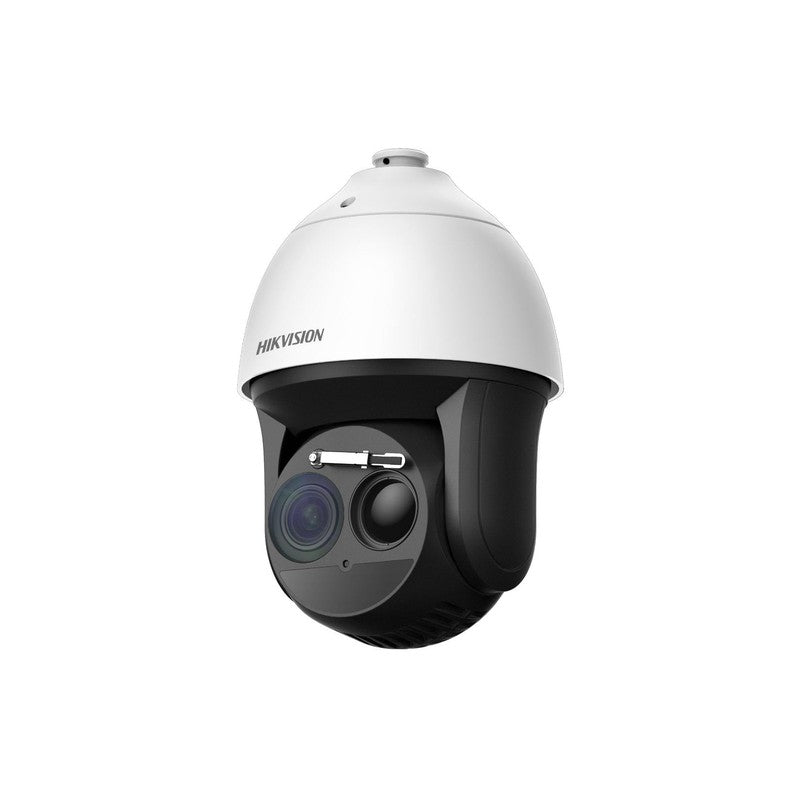

Hikvision Thermal & Optical Ds-2td4167t-25/w Bi-spectrum Network Speed Dome Camera With Thermography, 25mm Lens, Perimeter Protection
SKU: DS2TD4167T25W
$19,372.65
The Hikvision DS-2TD4167T-25/W is a bi-spectrum network speed dome camera designed for critical infrastructure and high-risk perimeter monitoring. It integrates a 640 x 512 thermal channel with a 4MP optical channel featuring 40x optical zoom to provide simultaneous heat detection and visual verification for industrial environments.
Key Features
- Thermal channel equipped with a 640 x 512 vanadium oxide uncooled focal plane array and 25mm lens
- Temperature measurement range of -20°C to 550°C with accuracy of ±2°C or ±2%
- Dynamic fire detection capability across up to 10 simultaneous fire points with a range of up to 1470m
- 4MP 1/1.8″ CMOS optical sensor with 6-240mm motorised lens providing 40x optical zoom
- 120dB WDR and optical defog technology for clear imaging in high-contrast and adverse weather conditions
- Deep learning perimeter protection including line crossing, intrusion, region entrance, and region exit detection
- IP66 ingress protection and TVS 6000V lightning protection for demanding outdoor deployment
- Flexible power options supporting 24V AC, 36V DC, 48V DC, or Hi-PoE
Technical Specifications
| Model | DS-2TD4167T-25/W |
| Product Type | Thermographic Bi-Spectrum Network Speed Dome |
| Thermal Sensor | Vanadium oxide uncooled focal plane array |
| Thermal Resolution | 640 x 512; output image resolution up to 1920 x 1080 |
| Pixel Interval | 17μm |
| NETD | 35mK at 25°C, F#1.1 |
| Thermal Lens | 25mm, F1.0 aperture |
| Thermal Field of View | 24.5° x 19.7° (horizontal x vertical) |
| Response Waveband | 8μm to 14μm |
| Optical Sensor | 1/1.8″ progressive scan CMOS, 4MP (2688 x 1520) |
| Optical Lens | 6-240mm motorised, 40x optical zoom |
| Optical WDR | 120dB |
| IR Distance | Up to 200m |
| Temperature Measurement Range | -20°C to 550°C; accuracy ±2°C or ±2% |
| Fire Detection | Dynamic detection; up to 10 fire points; range up to 1470m (2x2m object) |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exit; up to 10 scenes, 8 VCA rules per scene |
| PTZ Pan / Tilt | 360° continuous pan; -20° to +90° tilt with auto flip |
| Presets / Patrols | 300 presets (273 configurable); 8 patrols with up to 32 presets per patrol |
| Smart Tracking | Panorama tracking, event tracking and multi-scene patrol tracking |
| Local Storage | microSD/SDHC/SDXC up to 256GB; NAS and ANR support |
| Alarm I/O | 7-channel alarm inputs; 2-channel relay outputs |
| Power Supply | 24V AC, 36V DC, 48V DC or Hi-PoE; max 65W |
| Protection | IP66; TVS 6000V lightning, surge and voltage transient protection |
| Operating Temperature | -40°C to 65°C |
| Dimensions / Weight | 266.6 x 410 x 198.6mm; approx. 9kg |
