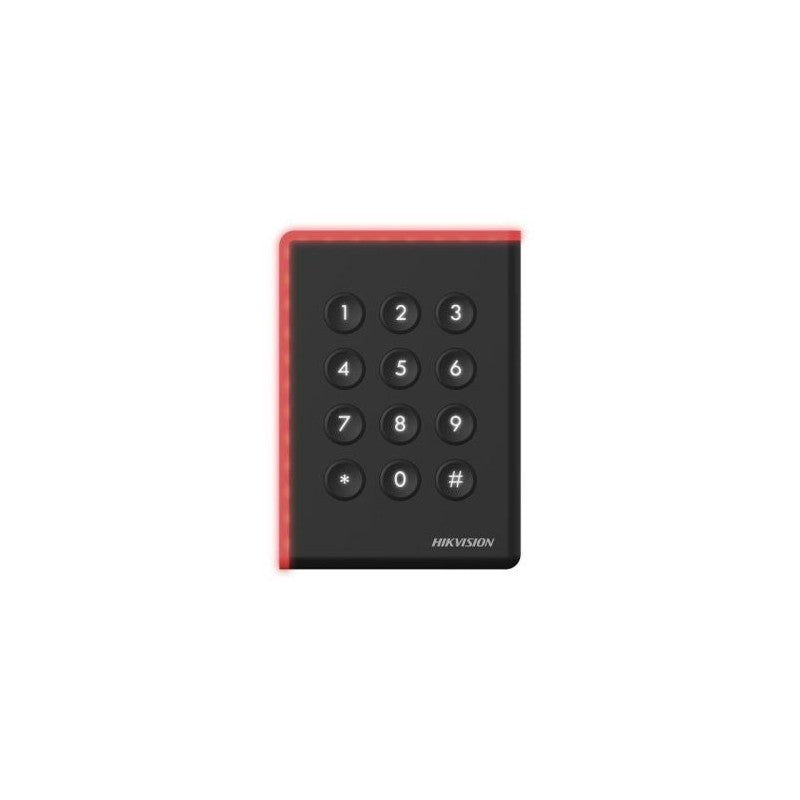

Hikvision Pro 1108a Ds-k1108amk M1 Card Reader With Keypad, Rs-485, Wiegand, Osdp, Tamper-proof Function & Ip65 Weatherproof Design

The Hikvision DS-K1108AMK is a Pro Series M1 card reader with an integrated keypad, designed for access control installations requiring both card and PIN-based credential verification in a single wall-mounted unit. Built to IP65 standards, this device supports M1/Mifare card reading at 13.56MHz and offers flexible communication options to match various controller and wiring requirements.

Key Features

• Reads M1/Mifare credentials at 13.56MHz to ISO 14443-A standard with a read distance of up to 50mm
• Integrated keypad supports PIN entry and card-plus-PIN access workflows for enhanced security
• Compatible with RS-485, Wiegand W26/W34, and OSDP communication protocols
• OSDP over RS-485 supports baud rates of 9600, 19200, or 38400
• Includes a built-in buzzer for audible credential feedback
• Features a tamper-proof function to detect unauthorised physical interference
• IP65 weatherproof design suitable for external entry points and areas with dust exposure
• Supports online upgrades through compatible Hikvision access control infrastructure
