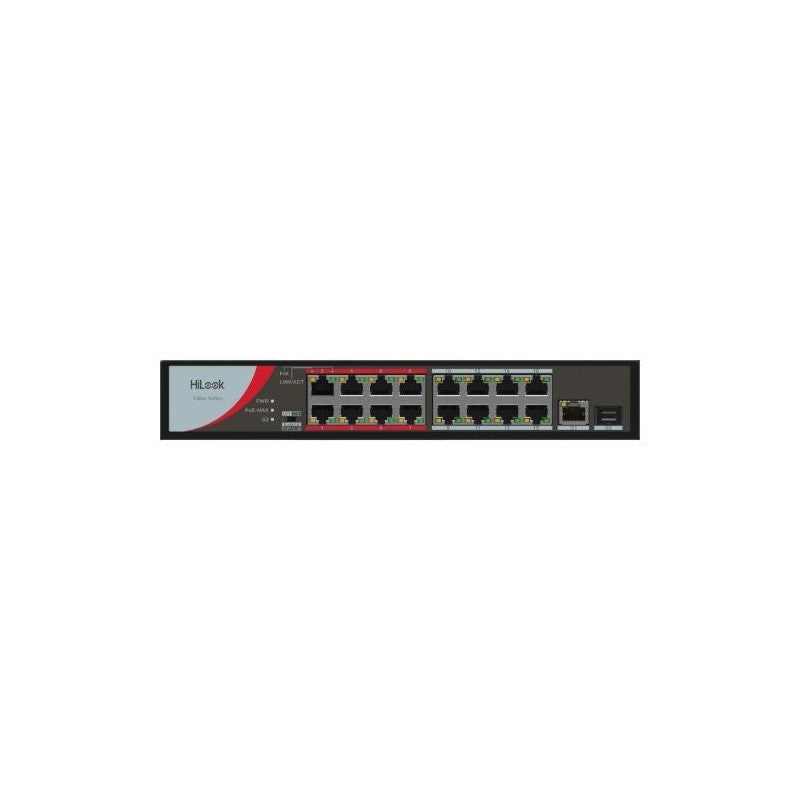

Hikvision Ns-0318p-130(b) 16port 100 Mbps Long-range POE Unmanaged Switch With Gigabit Uplink & 250m Extend Mode
SKU: NS0318P130B
$266.55
The Hikvision NS-0318P-130(B) 16-port 100 Mbps long-range PoE unmanaged switch is engineered to overcome standard Ethernet distance limitations in IP surveillance infrastructure. It supports extended cable runs of up to 250 meters on designated ports while maintaining a 130W PoE budget for high-power devices.
Key Features
- 16-port 100 Mbps unmanaged PoE switch with a 130W total power budget
- Hardware-defined extend mode on ports 9-16 supports data and PoE transmission up to 250m over Cat5e or Cat6 cable
- Ports 1-8 operate in high-priority mode to ensure preferential throughput for bandwidth-intensive devices such as NVRs
- Supports IEEE 802.3af/at devices with a maximum power draw of 30W per port
- Features a 1000 Mbps RJ45 uplink port and a 1000 Mbps SFP fibre port for dual gigabit connectivity to the core network
- Includes 6 kV surge protection on every port to enhance network reliability
Technical Specifications
| PoE Ports | 16 x 100 Mbps (IEEE 802.3af/at), up to 30W per port |
| Uplink Ports | 1 x 1000 Mbps RJ45 + 1 x 1000 Mbps SFP fibre |
| Total PoE Budget | 130W |
| Maximum Power Consumption | 150W |
| Idle Power Draw | Approximately 20W |
| Extend Mode (Long Range) | Up to 250m on ports 9-16 |
| High Priority Ports | Ports 1-8 |
| Surge Protection | 6 kV on all PoE ports |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.356 Mpps |
| MAC Address Table | 4,000 entries |
| Internal Cache | 2.75 Mbit |
| Network Standards | IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at |
| Switching Method | Store-and-forward, adaptive full-duplex |
| Power Input | 100-240 VAC, max 2.5A |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 5%-95% non-condensing |
| Dimensions (W x H x D) | 266 x 44.5 x 220.8 mm |
| Net Weight | 1.8 kg |
| Housing | Metal chassis |
