Hikvision Intercom Ds-kis602 2MP Kit, Kd8003-ime1, Kh6320, Surface Mount
SKU: DSKIS602
$566.07

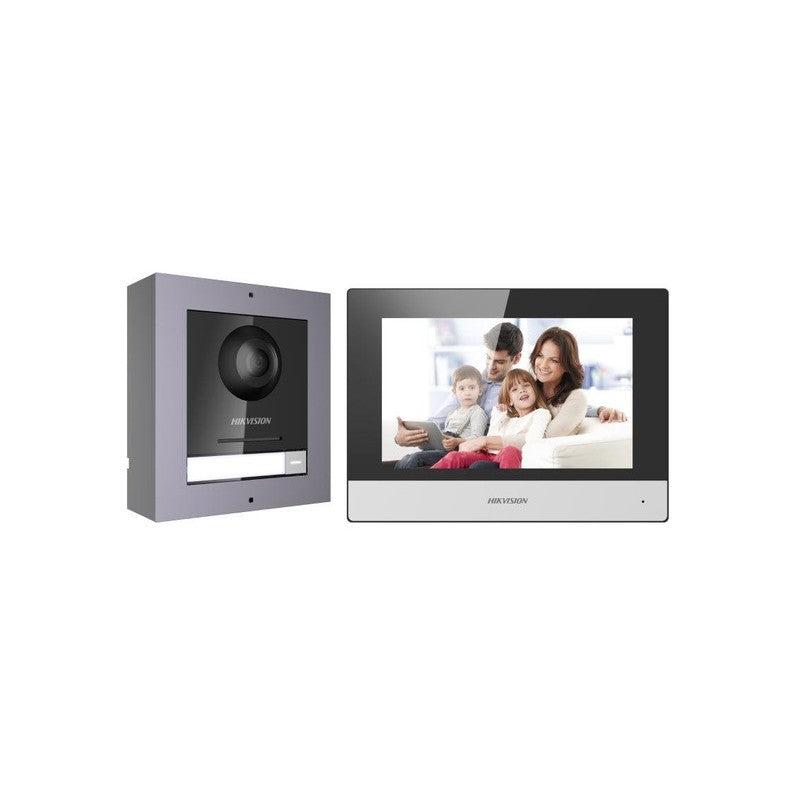

The Hikvision DS-KIS602 2MP Kit is a surface-mounted IP video intercom system designed for residential villas and houses. This kit integrates the DS-KD8003-IME1 door station with a 2MP HD camera and the DS-KH6320 indoor station, providing secure access control and clear two-way communication over a standard PoE network.
Key Features
- Includes DS-KD8003-IME1 surface-mounted door station with 2 MP HD camera, IR illumination, and access control functionality.
- Features DS-KH6320 indoor station with a 7-inch colorful TFT touch screen and 1024 × 600 resolution.
- Supports standard PoE (IEEE 802.3af) power supply and 10/100 Mbps self-adaptive Ethernet connectivity.
- Audio system includes built-in omnidirectional microphone, loudspeaker, G.711 U compression, and noise suppression with echo cancellation.
- Indoor station supports local storage of messages and images via a 16GB TF card.
- Door station is rated IP65 for protection against dust and water, suitable for outdoor installation.
- Operates on an embedded Linux system with a working temperature range of -40°C to +60°C.
Technical Specifications
| System Parameters | |
|---|---|
| Processor | Embedded MCU Processor |
| Operation System | Embedded Linux Operation System |
| Display Resolution | 1024 × 600 |
| Display Screen | 7-inch colorful TFT screen |
| Audio Compression Rate | 64 Kbps |
| Audio Compression Standard | G.711 U |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression and echo cancellation |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Network Protocol | TCP/IP, RTSP |
| I/O Input | 4 |
| I/O Output | 2 |
| Power Supply | 12 VDC/PoE (IEEE 802.3af) |
| Power Consumption | ≤10 W |
| Working Temperature | -40° C to +60° C (-40° F to 140° F) |
| Working Humidity | 10% to 95% |
| Dimension (L x W x D) | 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″) |
| Weight | 683 g (with packaging), 355 g (without packaging) |
| IP Protection Level | IP65 |
| Memory | 128 MB |
| Dimensions (L × W × H) | 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″) |
