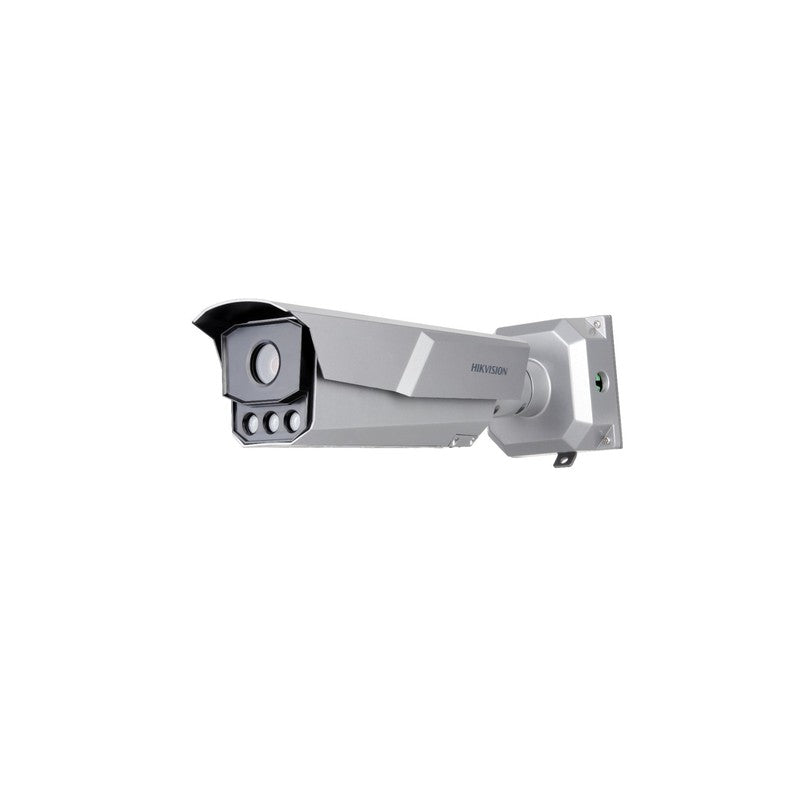

Hikvision Ids-tcm403-a / Ids-tcm403-b 4MP Anpr Smart Surveillance Capture Unit
SKU: IDSTCM403AB
$6,184.41
The Hikvision iDS-TCM403-A and iDS-TCM403-B are 4MP ANPR smart surveillance capture units engineered for vehicle identification and number plate recognition in entry and exit lanes. Featuring an on-board AI engine and motorised varifocal lenses, these devices provide high-accuracy local processing for car park access points, gated driveways, and road surveillance installations.
Key Features
- On-board ANPR engine with a confirmed capture rate above 99% and LPR accuracy above 98% under recommended conditions
- 1/1.8″ CMOS sensor delivering 2688 x 1520 resolution with 140dB Wide Dynamic Range for high-contrast lighting
- Motorised varifocal lens options: 4-11mm for the A variant and 8-32mm for the B variant, supporting remote autofocus adjustment
- Advanced vehicle classification including body colour identification across 9 colours and recognition of 65 vehicle manufacturers
- Detection capabilities for driving direction, no-plate vehicles, and motorcycle LPR
- IP67 and IK10 ratings ensuring durability for permanent outdoor installations
- Integration support via RS-485 and Wiegand interfaces, with PoE 802.3at power supply
Technical Specifications
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Max. Resolution | 2688 x 1520 (4MP) |
| Frame Rate | 50 Hz: 25 fps / 60 Hz: 30 fps at max resolution |
| Lens (A Variant) | 4-11mm motorised varifocal, F1.38, auto-iris DC drive |
| Lens (B Variant) | 8-32mm motorised varifocal, F1.63-1.8, auto-iris DC drive |
| WDR | 140 dB |
| Min. Illumination | Colour: 0.001 Lux @ F1.2, AGC ON |
| ANPR Engine | Built-in AI; LPR accuracy >98%, capture rate >99%, driving direction recognition >98.5% |
| Capture Speed Range | 5 to 120 km/h |
| Smart Functions | Vehicle type classification, colour identification (9 colours), no-plate vehicle capture, driving direction detection, motorcycle LPR, 65 manufacturer recognition |
| Image Enhancement | BLC, HLC, 3D DNR |
| Video Compression | H.265 / H.264 / MJPEG (main and sub streams) |
| On-Board Storage | Built-in microSD/TF card, up to 128 GB |
| Interfaces | 1 x RJ45 Gigabit, 1 x RS-485, 1 x Wiegand, 1 x alarm input, 1 x alarm output, 2 relays |
| Power Supply | 12 VDC to 24 VDC ±20%, PoE 802.3at Class 4 |
| Max. Power Consumption | 12 W |
| Protection Rating | IP67, IK10 |
| Operating Temperature | -30 °C to +70 °C |
| Client Software | iVMS-8600, Hik-Central |
| API | ONVIF 2.1 (Profile S, Profile G), ISAPI, SDK |
