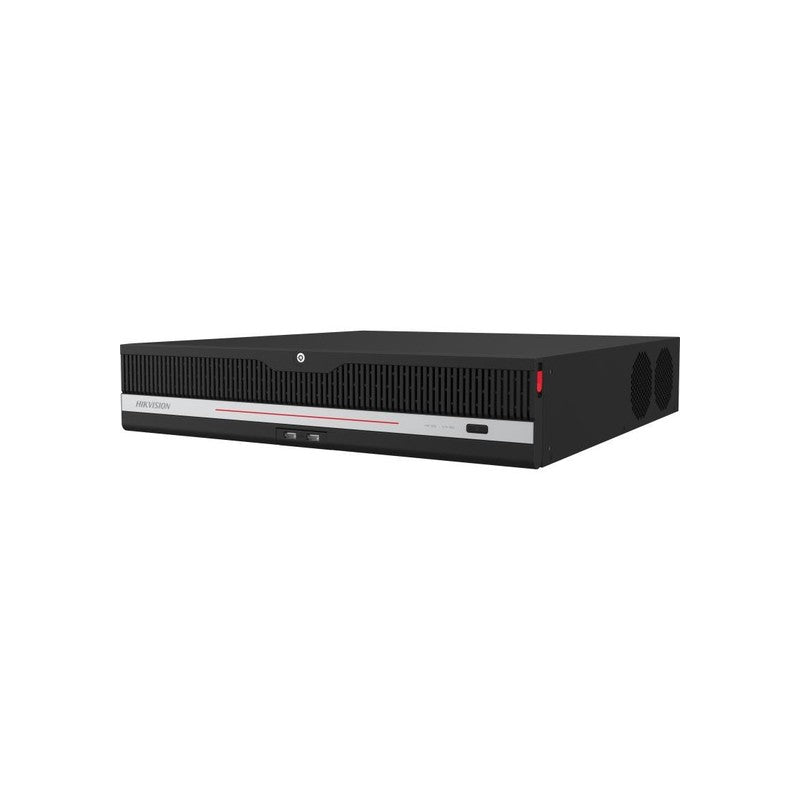

Hikvision Ids-9664nxi-p16 Deepinmind Pro NVR – 64 Channel AI NVR With 16 HDD Bays, Acuseek & Acusearch
SKU: IDS9664NXIP16
$7,216.35
The Hikvision iDS-9664NXI-P16 is a 64-channel DeepinMind Pro NVR engineered for large-scale surveillance deployments in commercial, government, and industrial environments. It leverages Hikvision’s Guanlan Large-Scale AI Models to deliver on-recorder analytics, including AcuSeek, AcuSearch, and facial recognition, across dozens of simultaneous channels.
Key Features
- Supports up to 64 IP cameras at resolutions up to 32MP with 400Mbps incoming bandwidth
- Features 16 SATA HDD bays supporting up to 20TB per drive with full RAID 0/1/5/6/10 capability
- Delivers live or recorded video output at up to 8K resolution via HDMI 1
- Enables AcuSearch and AcuSeek across all 64 channels with a modelling capacity of up to 600,000 targets per day
- Supports face picture comparison across 64 channels and facial recognition for video streams on up to 24 channels
- Stores up to 32 face picture libraries holding a total of 100,000 face pictures for access monitoring
- Performs perimeter protection and video structuralisation directly at the recorder level
Technical Specifications
| Model | iDS-9664NXI-P16 |
| Product Type | DeepinMind Pro NVR |
| IP Video Input | 64 channels |
| Maximum Camera Resolution | Up to 32MP |
| Incoming / Outgoing Bandwidth | 400Mbps / 400Mbps |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Decoding Capability | 2-ch @ 32MP / 2-ch @ 24MP / 4-ch @ 16MP / 8-ch @ 8MP / 16-ch @ 4MP / 32-ch @ 2MP |
| Synchronous Playback | 16 channels |
| AcuSeek / AcuSearch | Up to 64 channels |
| Perimeter Protection (by NVR) | Up to 36 channels at 2MP (without Large Model); up to 24 channels at 2MP (with Large Model) |
| Facial Recognition | Up to 24 channels (video stream); up to 64 channels (face picture) |
| Face Picture Library | Up to 32 libraries, up to 100,000 face pictures |
| Video Structuralisation | Up to 24 channels |
| HDMI Output | HDMI 1: up to 8K @ 30Hz; HDMI 2: up to 4K |
| VGA Output | 2 x VGA, up to 1920 x 1080/60Hz |
| Network Interface | 2 x RJ-45 10/100/1000Mbps self-adaptive Ethernet |
| Remote Connections | 128 |
| HDD Bays | 16 x SATA interfaces, 3.5-inch HDD |
| HDD Capacity | Up to 20TB per HDD (up to 320TB raw) |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Alarm Input / Output | 16 inputs / 9 outputs |
| USB Interfaces | 2 x USB 2.0 (front), 2 x USB 3.0 (rear) |
| Serial Interfaces | 1 x RS-232, 1 x RS-485 |
| Power Supply | 100 to 240VAC, 50 to 60Hz |
| Power Consumption | 50W or less (without HDD) |
| Working Temperature | -10°C to 55°C |
| Dimensions | 442 x 498 x 146mm |
| Weight | 12.5kg or less (without HDD) |
