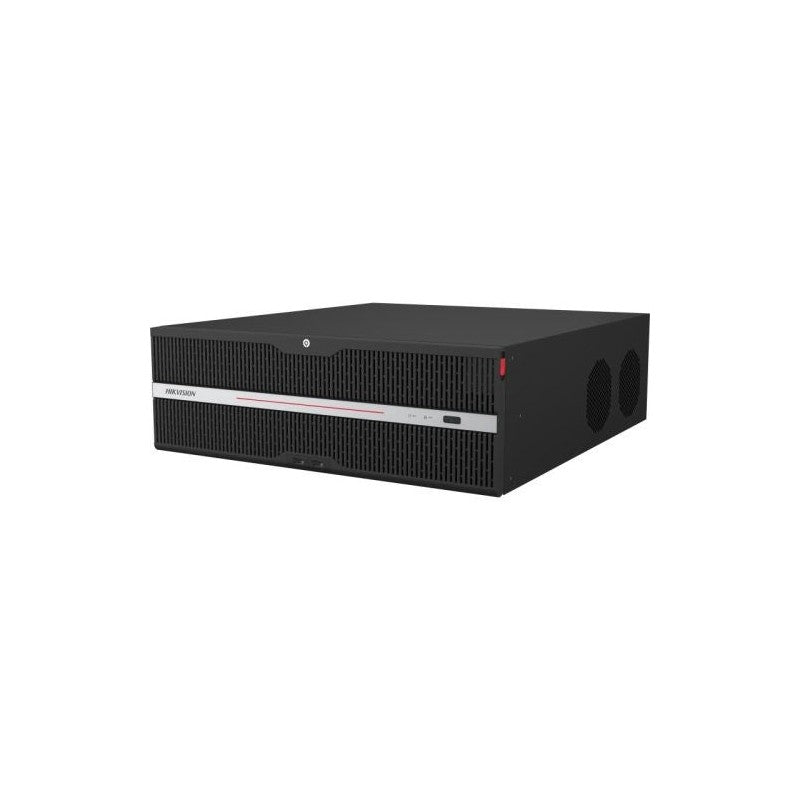

Hikvision Ids-9664nxi-m16/x 64-ch 3u 8k Deepinmind NVR
SKU: IDS96064NXII16
$9,357.45
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-3e0310hp-e 8 Port Fast Ethernet Unmanaged POE Switch
$202.20
Hikvision Ds-3e1528p-ei 24-port Gigabit Smart Managed POE Switch – 370w POE Budget
$787.20
Upgrades Subtotal:
$0.00
The Hikvision iDS-9664NXI-M16/X is a 64-channel, 3U rack-mount Network Video Recorder (NVR) engineered for enterprise-grade surveillance deployments. Powered by the DeepinMind deep learning platform, this unit supports up to 32 MP IP camera inputs and features dual independent AI engines for advanced analytics in large-scale commercial and infrastructure environments.
Key Features
- 64-channel IP input with support for resolutions up to 32 MP
- Dual independent AI engines capable of running separate intelligent algorithms simultaneously
- 8K HDMI output (7680 x 4320 @ 30Hz) for high-resolution display monitoring
- 16 SATA bays with RAID 0, 1, 5, 6, and 10 support for storage redundancy
- Facial recognition support for up to 48 channels with libraries holding up to 100,000 faces
- Perimeter protection for up to 24 channels and video structuralization for 12 channels
- Connectivity for up to 8 IP speakers for on-site audio response
Technical Specifications
| Model | iDS-9664NXI-M16/X |
| IP Video Input | 64-ch, up to 32 MP |
| Incoming / Outgoing Bandwidth | 400 Mbps / 400 Mbps |
| Decoding Capability | 2-ch@32 MP / 2-ch@24 MP / 4-ch@16 MP / 8-ch@8 MP / 16-ch@4 MP / 32-ch@2 MP (all at 30 fps) |
| Synchronous Playback | 16-ch |
| HDMI 1 Output | 8K (7680 x 4320)/30Hz, 4K/60Hz, 4K/30Hz, 2K/60Hz, 1080p/60Hz |
| HDMI 2 Output | 4K/60Hz, 4K/30Hz, 2K/60Hz, 1080p/60Hz (max 1080p when HDMI 1 is set to 8K) |
| VGA Output | 2 x VGA at 1920 x 1080/60Hz |
| AI Engines | 2, each configurable independently; engine mode adjustable |
| Facial Recognition (Face Picture) | Up to 48-ch, 48 pictures per second comparison speed |
| Face Picture Library | Up to 32 libraries; 100,000 listed faces; 10,000 stranger faces; 10,000,000 captured face records |
| Perimeter Protection (by NVR) | Up to 24-ch@2 MP or 16-ch@4 MP or 8-ch@8 MP (without Large Model) |
| Video Structuralization | Up to 12-ch@2 MP (6-ch per engine), up to 8 MP |
| ANPR | All channels (by camera); plate number, colour, type; vehicle brand, colour, type |
| IP Speaker Support | Up to 8-ch |
| SATA Interfaces | 16 x SATA (3.5-inch HDD), up to 16 TB per drive; 1 x eSATA |
| RAID Support | RAID 0, 1, 5, 6, 10 |
| Network Interface | 2 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet; up to 128 remote connections |
| Alarm In / Out | 16 inputs / 9 outputs |
| USB | Front: 2 x USB 2.0; Rear: 2 x USB 3.0 |
| Power Supply | 100-240 VAC, 50-60 Hz; consumption up to 50 W (without HDD) |
| Dimensions (W x D x H) | 442 x 494 x 150 mm |
| Weight | Up to 13 kg (without HDD) |
| Operating Temperature | -10 to 55 degrees C |
| Certifications | CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA |
