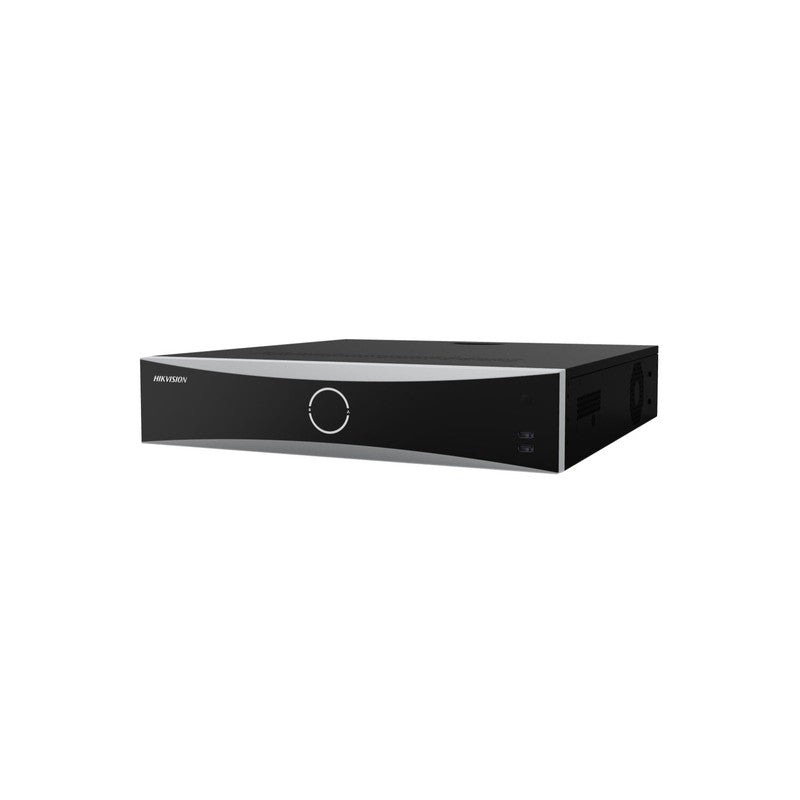

Hikvision Ids-7732nxi-m4/16p/x 32ch POE Deepinmind Face Recognition Nvr, 16 Port, 8ch Fr, No HDD
SKU: IDS7732NXIM416PX
$2,869.80
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ids-2cd7a46g0/s-izhsy 4MP Deepinview Moto Varifocal Bullet Camera
$1,546.53
Upgrades Subtotal:
$0.00
The Hikvision iDS-7732NXI-M4/16P/X is a 32-channel DeepInMind NVR engineered for medium-to-large commercial installations requiring AI-driven analytics at the recorder level. This device supports face recognition, perimeter protection, and video structuralization without relying entirely on camera-side processing.
Key Features
- 32-channel capacity with 16 built-in PoE ports
- DeepInMind AI analytics for face recognition and video structuralization
- Supports 8 channels of face recognition processing
- Designed for medium-to-large commercial security installations
- Handles perimeter protection and advanced analytics at the NVR level
- Ships without a hard drive (HDD not included)
Technical Specifications
| IP Video Input | 32 channels, up to 32MP resolution |
| PoE Ports | 16 x PoE network interfaces |
| Incoming / Outgoing Bandwidth | 320 Mbps incoming / 400 Mbps outgoing |
| HDMI 1 Output | 8K (7680×4320)/30Hz, 4K/60Hz, 4K/30Hz, 2K/60Hz, 1080p/60Hz |
| HDMI 2 Output | 4K/60Hz, 4K/30Hz, 2K/60Hz, 1080p/60Hz (max 1080p when HDMI 1 is set to 8K) |
| VGA Output | 1920×1080/60Hz |
| Decoding Capability | 2-ch@32MP / 2-ch@24MP / 4-ch@16MP / 8-ch@8MP / 16-ch@4MP / 32-ch@2MP (all at 30fps) |
| Synchronous Playback | 16 channels |
| Face Recognition (Video Stream) | Up to 16 channels (8-ch per engine) |
| Face Recognition (Face Picture) | Up to 32 channels (16-ch per engine), 48 pictures/second comparison speed |
| Face Picture Library | Up to 16 libraries; up to 100,000 pictures per list library; up to 5,000,000 captured face pictures |
| Perimeter Protection (by NVR) | Up to 24-ch@2MP (without LargeModel); 12-ch@2MP or 8-ch@4MP (with LargeModel) |
| Video Structuralization | Up to 12-ch@2MP (6-ch per engine), up to 8MP |
| AI Engines | 2 engines, each capable of running an independent intelligent algorithm; engine mode is adjustable |
| Storage (SATA) | 4 x SATA interfaces (3.5-inch HDD), up to 16TB per disk; 1 x eSATA |
| Network Interfaces | 2 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet; up to 128 remote connections |
| Alarm Inputs / Outputs | 16 inputs / 4 outputs |
| USB Interfaces | Front: 2 x USB 2.0; Rear: 1 x USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz; max 50W (without HDD) |
| Dimensions (W x D x H) | 445 x 400 x 71 mm |
| Weight | 5 kg (without HDD) |
| Operating Temperature | -10 to 55 degrees C |
| Certification | CE, FCC, IC, CB, KC, UL, RoHS, RCM, UKCA |
