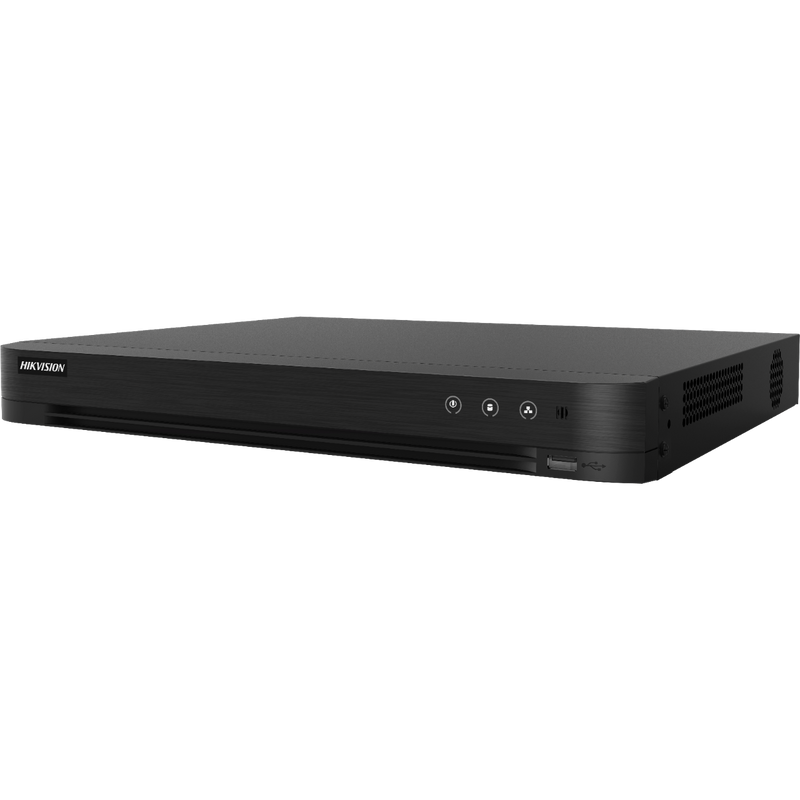

Hikvision Ids-7316huhi-m4/s 16-channel 5MP 1.5u H.265 Acusense DVR
SKU: IDS7316HUHIM4S
$1,617.90
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-2ce57u7t-vpitf Tvi4.0 8MP Outdoor Dome Camera, Wdr, 30m Ir, 4 In 1, Ip67, 12vdc, 2.8mm
$220.92
Hikvision Ds-2ce78u7t-it3f Hik-2ce78u7it3f2 Tvi4.0 8MP Outdoor Turret Camera 60m Ir, 4 In 1, Ip67, 12vdc, 2.8mm
$176.46
Hikvision Ds-3e0310hp-e 8 Port Fast Ethernet Unmanaged POE Switch
$202.20
Hikvision Ds-3e1528p-ei 24-port Gigabit Smart Managed POE Switch – 370w POE Budget
$787.20
Upgrades Subtotal:
$0.00
The Hikvision iDS-7316HUHI-M4/S is a 16-channel 5MP 1.5U H.265 AcuSense DVR designed for commercial and industrial sites utilizing existing coaxial infrastructure. This hybrid recording platform accepts HDTVI, AHD, HDCVI, CVBS, and IP camera inputs simultaneously, facilitating staged upgrades where analogue and IP systems must coexist.
Key Features
- Hybrid multi-format input supporting 16 BNC channels and up to 18 IP channels by default, expandable to 34 total channels
- AcuSense deep learning detection that classifies motion events by human and vehicle targets to reduce irrelevant trigger noise
- H.265 Pro+ compression for efficient storage management across the system
- 48TB local storage capacity via four SATA interfaces, each supporting HDDs up to 12TB
- High-resolution analogue support recording up to 5MP full resolution or 8MP in lite mode, with IP channels supporting up to 12MP
- Dual HDMI outputs, including a 4K-capable port, for flexible display options in control rooms or reception areas
- 1.5U form factor suitable for rack-mounted installations in multi-camera environments
Technical Specifications
| Model | Hikvision iDS-7316HUHI-M4/S |
| Analogue Video Inputs | 16 × BNC |
| Supported Analogue Formats | HDTVI, AHD, HDCVI, CVBS |
| Max Analogue Resolution | 5MP (full), 8MP (lite) |
| IP Camera Channels | 18 by default, expandable to 34 total (combined analogue + IP) |
| Max IP Camera Resolution | Up to 12MP |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Analytics | AcuSense – deep learning human and vehicle classification |
| Video Output | HDMI 1: up to 1920×1080 @ 60Hz; HDMI 2: up to 3840×2160 @ 30Hz; VGA: up to 1920×1080 @ 60Hz |
| Audio Input | 4-channel |
| Audio Output | 2-channel |
| Network Interfaces | 2 × RJ45 10/100/1000 Mbps Ethernet |
| USB Interfaces | 2 × USB 2.0 (front), 1 × USB 3.0 (rear) |
| Storage | 4 × SATA, up to 12TB per HDD (48TB total) |
| Form Factor | 1.5U rackmount |
| Power Supply | 100-240 VAC, 50/60 Hz; max 35W (without HDD) |
| Operating Temperature | -10°C to +55°C |
| Humidity | 10% to 90% |
| Dimensions | 440 × 399 × 72 mm |
| Weight | 5 kg (without HDD) |
