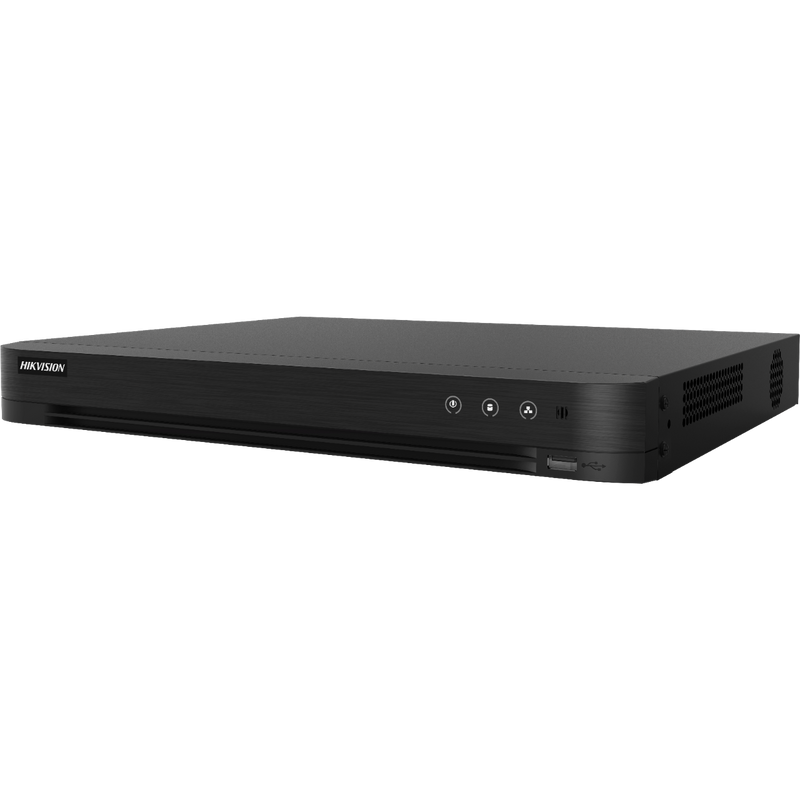

Hikvision Ids-7216huhi-m2/s Tvi4.0 16-ch 5 Mp 1u H.265 Acusense DVR 2 HDD Bays No HDD

Hikvision Ids-7216huhi-m2/s Tvi4.0 16-ch 5 Mp 1u H.265 Acusense DVR 2 HDD Bays No HDD
SKU: IDS7216HUHIM2S
$1,068.00

Optional Upgrades & Add-Ons

⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.

Hikvision Ds-2ce57u7t-vpitf Tvi4.0 8MP Outdoor Dome Camera, Wdr, 30m Ir, 4 In 1, Ip67, 12vdc, 2.8mm
Hikvision Ds-2ce57u7t-vpitf Tvi4.0 8MP Outdoor Dome Camera, Wdr, 30m Ir, 4 In 1, Ip67, 12vdc, 2.8mm
$220.92
Hikvision Ds-2ce78u7t-it3f Hik-2ce78u7it3f2 Tvi4.0 8MP Outdoor Turret Camera 60m Ir, 4 In 1, Ip67, 12vdc, 2.8mm
Hikvision Ds-2ce78u7t-it3f Hik-2ce78u7it3f2 Tvi4.0 8MP Outdoor Turret Camera 60m Ir, 4 In 1, Ip67, 12vdc, 2.8mm
$176.46
Upgrades Subtotal: $0.00

The Hikvision iDS-7216HUHI-M2/S is a 1U rack-mount hybrid DVR engineered for legacy coaxial infrastructure upgrades, supporting 16 channels of HDTVI, AHD, CVI, CVBS, and IP signals. This unit integrates deep learning-based AcuSense motion analysis with H.265 Pro+ compression to optimize storage efficiency and reduce false alerts on mixed-technology sites.

Key Features

  • 16-channel hybrid input supporting HDTVI, AHD, CVI, CVBS, and IP cameras on a single device.
  • AcuSense Motion Detection 2.0 enabled by default on all analog channels for human and vehicle classification.
  • H.265 Pro+ compression encoding up to 8 MP at 8 fps or 5 MP at 12 fps.
  • Perimeter protection functionality available on up to 4 channels.
  • Two SATA bays supporting up to 10TB per drive, supplied without hard drives.
  • 4K-capable HDMI output for high-resolution local monitoring.
  • 1U form factor designed for standard rack-mount installation.

Technical Specifications

Analog Video Inputs 16-ch, BNC interface (1.0 Vp-p, 75 ohm), coaxitron connection supported
Supported Analog Formats HDTVI, AHD, HDCVI, CVBS (5-in-1 adaptive)
HDTVI Input Resolution 8 MP @ 15 fps, 5 MP @ 20 fps, 4 MP @ 30 fps, 3 MP @ 18 fps, 1080p @ 30 fps, 720p @ 60 fps
IP Camera Input 8-ch standard (up to 24-ch); Enhanced IP mode: 16-ch (up to 32-ch), each up to 4 Mbps, up to 8 MP resolution
Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution (Main Stream) 8 MP @ 8 fps, 5 MP @ 12 fps, 3K @ 12 fps, 4 MP @ 15 fps, 3 MP @ 18 fps, 1080p/720p @ 25/30 fps
Video Bitrate 32 Kbps to 10 Mbps
Total Bandwidth 128 Mbps
Synchronous Playback 16-ch
HDMI Output 1-ch, up to 4K (3840×2160) @ 30Hz; simultaneous HDMI/VGA output supported
VGA Output 1-ch, up to 1920×1080 @ 60Hz; simultaneous HDMI/VGA output supported
HDD Bays 2 x SATA interfaces, up to 10TB per drive (no HDD included)
AI Analytics Motion Detection 2.0 (human/vehicle classification) on all 16 analog channels; Perimeter protection up to 4-ch; Face detection/search
Audio 1-ch audio input RCA (up to 16-ch via coaxial); 1-ch audio output RCA; G.711u compression at 64 Kbps
Network Interface 1 x RJ45, 10/100/1000 Mbps self-adaptive; up to 128 remote connections
USB Interfaces Front: 1 x USB 2.0; Rear: 1 x USB 3.0
Serial Interface RS-485 (half-duplex)
Power Supply 12 VDC, 5A; consumption ≤19W
Dimensions (W x D x H) 380 x 320 x 48mm; weight ≤2.1 kg
Operating Temperature -10°C to +55°C
No downloads available for this product.
