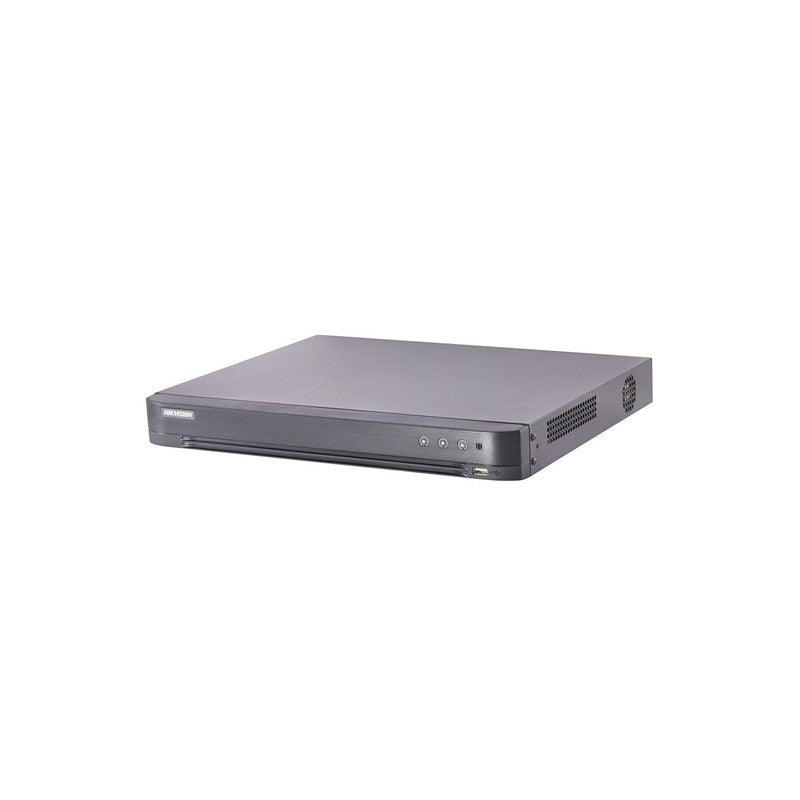

Hikvision Ids-7208hthi-m2/s 8MP 8ch DVR Hdtvi/ Ahd/cvi/cvbs/ip, 2 Bays, 8mp@15fps, No HDD
SKU: IDS7208HTHIM2S
$1,001.31
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-2ce57u7t-vpitf Tvi4.0 8MP Outdoor Dome Camera, Wdr, 30m Ir, 4 In 1, Ip67, 12vdc, 2.8mm
$220.92
Hikvision Ds-2ce78u7t-it3f Hik-2ce78u7it3f2 Tvi4.0 8MP Outdoor Turret Camera 60m Ir, 4 In 1, Ip67, 12vdc, 2.8mm
$176.46
Hikvision Ds-2ce79u7t-ait3zf Tvi4.0 8MP Outdoor Turret Camera 60m Ir, 4in1 2.7-13m
$307.50
Upgrades Subtotal:
$0.00
The Hikvision iDS-7208HTHI-M2/S is an 8-channel 1U digital video recorder designed for hybrid surveillance environments requiring high-resolution 8MP recording. It supports simultaneous HDTVI, AHD, CVI, CVBS, and IP inputs, enabling seamless integration of legacy coaxial infrastructure with modern IP camera systems.
Key Features
- 8-channel hybrid input supporting HDTVI, AHD, CVI, CVBS, and IP video signals
- AcuSense deep learning technology for human and vehicle classification to reduce false alarms
- Records up to 8MP at 15fps using H.265 Pro+ compression for efficient storage utilization
- Two SATA bays supporting hard drives up to 10TB each for a maximum raw capacity of 20TB
- HDMI output supporting 4K resolution for detailed on-screen video review
- Expandable architecture allowing up to 16 IP channels for scalable system growth
- 1U form factor suitable for commercial and multi-site installation environments
Technical Specifications
| Model | iDS-7208HTHI-M2/S |
| Analog Video Inputs | 8-ch BNC (1.0 Vp-p, 75 ohm), supporting coaxitron connection |
| Signal Compatibility | HDTVI, AHD, HDCVI, CVBS, IP (5-in-1) |
| IP Video Input | 8-ch standard, expandable to 16-ch; up to 8MP resolution; H.265+/H.265/H.264+/H.264 |
| Max Encoding Resolution | 8MP (3840 x 2160) @ 15fps |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| HDTVI Input Resolutions | 8MP@15fps, 5MP@20fps, 4MP@30fps, 3MP@18fps, 1080p@30fps, 720p@30fps |
| HDMI Output | 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz |
| VGA Output | 1-ch, up to 1920 x 1080/60Hz (independent from HDMI output) |
| Total Bandwidth | 128 Mbps |
| AI Features | AcuSense Motion Detection 2.0 (human/vehicle classification), perimeter protection (line crossing and intrusion detection, 8-ch), facial detection and capture |
| HDD Bays | 2 x SATA, up to 10TB per drive (no HDD included) |
| Network Interface | 1 x RJ45, 10M/100M/1000M self-adaptive Ethernet |
| Remote Connections | Up to 64 simultaneous remote connections; Hik-Connect, ONVIF supported |
| Wi-Fi | Connectable via Wi-Fi dongle through USB interface |
| Audio | 1-ch RCA audio input (2.0 Vp-p, 1K ohm); 8-ch audio via coaxial cable; 1-ch RCA audio output |
| USB | Front: 1 x USB 2.0; Rear: 1 x USB 2.0 |
| Power Supply | 12VDC, 3.33A; consumption up to 15W (without HDD) |
| Dimensions (W x D x H) | 380 x 320 x 48mm |
| Weight | Up to 3.1kg (without HDD) |
| Operating Temperature | -10°C to +55°C |
