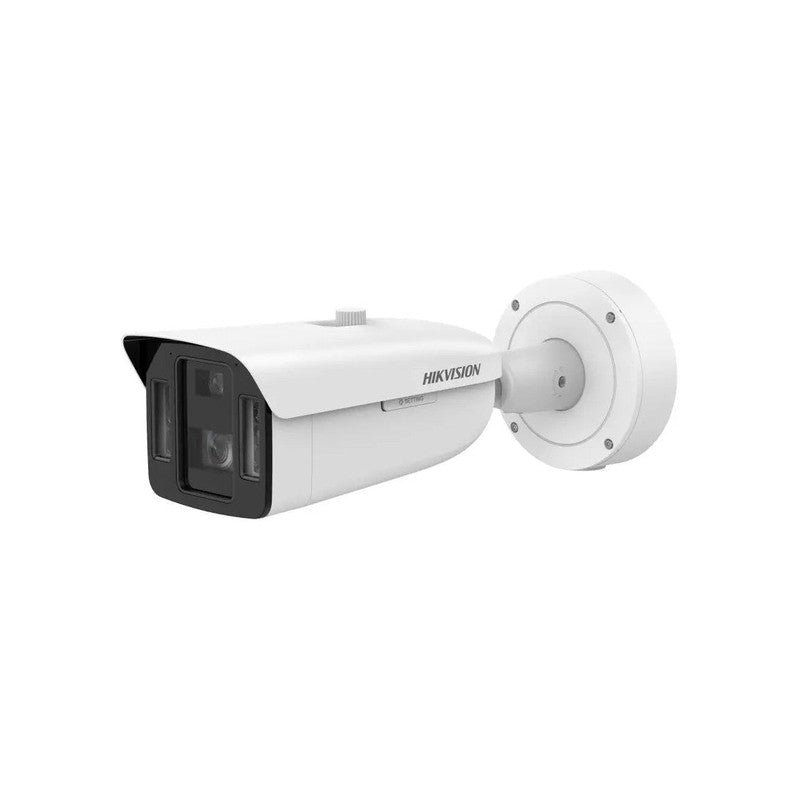

Hikvision Ids-2cd8a46g0-xz(h)s(y) 4MP Outdoor Tandemvu Bullet Camera, Colorvu, Anpr, Ip67, 8-32mm
SKU: IDS2CD8A46G0XZHSY
$2,187.69
The Hikvision iDS-2CD8A46G0-XZ(H)S(Y) is a 4MP outdoor TandemVu bullet camera engineered for simultaneous ANPR capture and wide-area situational awareness. This dual-channel device integrates DarkFighter and ColorVu technology to deliver high-fidelity colour imagery in near-zero light conditions, making it suitable for vehicle access control, gated facilities, and commercial sites.
Key Features
- Dual-channel TandemVu design with an 8-32mm motorised varifocal lens for close-up detail and a fixed 4mm wide-angle lens for an 89-degree panoramic view.
- Deep learning ANPR with a recognition rate of 98% or greater, supporting blocklist and allowlist management for up to 10,000 records.
- ColorVu and DarkFighter technology enables full-colour imaging in low-light environments, supported by a hybrid IR and white light illuminator reaching up to 100m.
- 140dB WDR capability maintains image detail across high-contrast scenes, such as simultaneous headlights and shadows.
- Advanced analytics include face capture, comparison against libraries of up to 150,000 faces, and perimeter detection on both channels.
- IP67-rated outdoor housing designed for durability in harsh environmental conditions.
Technical Specifications
| Model | iDS-2CD8A46G0-XZ(H)S(Y) |
| Resolution | Channel 1: 4MP (2688 x 1520), Channel 2: 4MP (2560 x 1440) |
| Image Sensor | Channel 1: 1/1.8″ Progressive Scan CMOS, Channel 2: 1/1.8″ Progressive Scan CMOS |
| Lens – Channel 1 | 8-32mm motorised varifocal, P-iris, constant F1.6, auto/semi-auto/manual focus |
| Lens – Channel 2 | 4mm fixed, F1.0, horizontal FOV 89 degrees |
| Min. Illumination | Ch1: Colour 0.0005 Lux (F1.2), 0 Lux with light. Ch2: Colour 0.0003 Lux (F1.0), 0 Lux with light |
| Supplement Light | Hybrid IR (850nm) and White Light. Channel 1: up to 100m, Channel 2: up to 30m |
| Wide Dynamic Range | 140 dB |
| Video Compression | H.265+/H.265/H.264+/H.264 (main stream), up to 5 streams per channel |
| Frame Rate | Ch1: up to 50fps at 2688×1520 (50Hz). Ch2: up to 25fps at 2560×1440 (50Hz) |
| ANPR | Licence plate recognition rate 98% or greater, blocklist/allowlist up to 10,000 records, motorcycle plate support, vehicle type/colour/brand detection |
| Deep Learning – Face | Face capture up to 120 simultaneously, face comparison across up to 150,000 stored faces (10 libraries) |
| Multi-Target Detection | Up to 60 targets simultaneously, human body, face, and vehicle detection with attribute extraction |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting – both channels, human and vehicle triggered |
| Storage | MicroSD/SDHC/SDXC up to 256GB, NAS (NFS, SMB/CIFS), ANR |
| Power | PoE 802.3at (max 24.7W), 12VDC 1.90A (max 22.7W), 24VAC 1.39A (max 22.3W) |
| Interfaces | 1x RJ45 Gigabit Ethernet, 2x alarm input, 2x alarm output, audio line in/out (3.5mm), RS-485, CVBS debug output |
| Protection Rating | IP67, IK10, NEMA 4X (-Y model) |
| Operating Temperature | -H variant: -40 degrees C to 60 degrees C. Standard: -30 degrees C to 60 degrees C. Built-in heater and demist included. |
| Dimensions / Weight | 140mm x 410.1mm, approx. 2.2kg |
