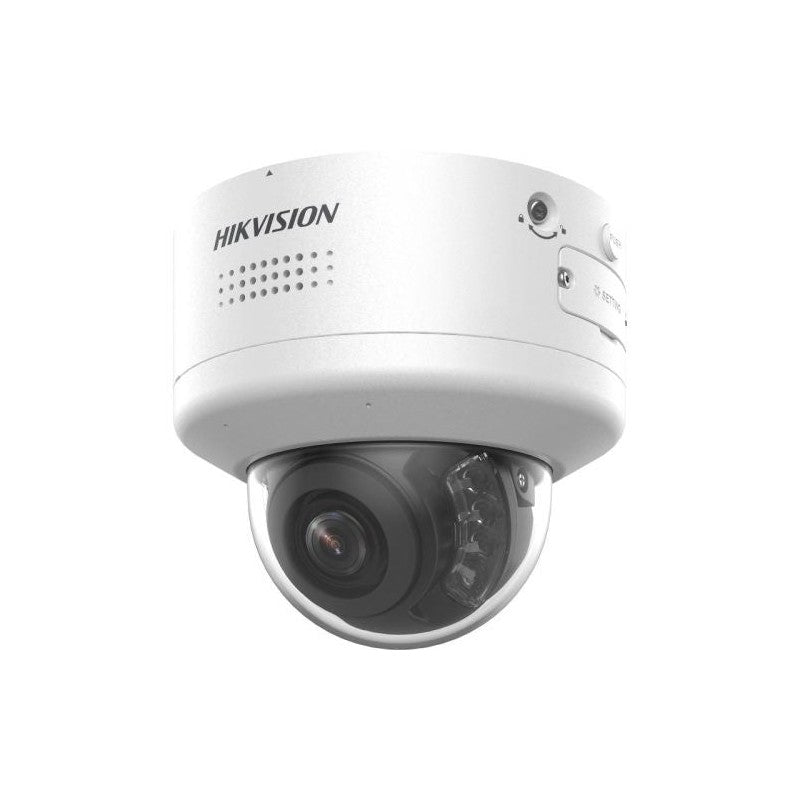

Hikvision Ids-2cd7546g2-xzhs(y) 4MP Deepinview Ptrz Dome High-speed Motorised Varifocal With Ultra-low Light & AI Analytics
SKU: IDS2CD7546G2XZHSY
$1,333.59
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Hikvision Ds-2cd5a26g0-izs 2MP Outdoor Darkfighter Bullet Camera, Ir, 140db Wdr, Vca, 60fps, 8-32mm
$951.00
Hikvision Wall Mount Bracket Ds-1473zj-155 To Suit Hik-2cd27x5 Series Cameras
$79.35
Upgrades Subtotal:
$0.00
The Hikvision iDS-2CD7546G2-XZHS(Y) is a 4MP DeepinView PTRZ dome camera engineered for wide-area monitoring in ports, highways, and critical infrastructure. It combines DarkFighter2 ultra-low-light imaging with post-installation aiming capabilities to ensure precise coverage in harsh outdoor environments.
Key Features
- DarkFighter2 technology on a 1/1.8-inch CMOS sensor delivers colour imagery at 0.0005 lux and black-and-white at 0.0001 lux.
- PTRZ mechanism allows post-installation aiming with pan and rotate ranges of 0-355 degrees and tilt of 0-85 degrees.
- Motorised varifocal lens options include 2.8-12mm for 152m detection range or 8-32mm for 400m detection range.
- Integrated AI analytics support multi-target detection, face capture, people counting, queue management, and heat mapping.
- 150dB Adaptive WDR and a blue glass module reduce ghosting and maintain image clarity in difficult lighting conditions.
- Full night-vision capability provided by built-in IR and white-light illuminators.
- Robust construction rated IP67 and IK10, with optional NEMA 4X corrosion resistance for outdoor durability.
Technical Specifications
| Model | Hikvision iDS-2CD7546G2-XZHS(Y) |
| Resolution | 4MP – 2688 x 1520 |
| Image Sensor | 1/1.8-inch progressive scan CMOS |
| Min. Illumination (Colour) | 0.0005 lux at F1.2, AGC on |
| Min. Illumination (B&W) | 0.0001 lux at F1.2, AGC on |
| Lens Options | 2.8-12mm motorised varifocal (P-iris) or 8-32mm motorised varifocal (P-iris) |
| PTRZ Range | Pan: 0-355°, Tilt: 0-85°, Rotate: 0-355° |
| Wide Dynamic Range | 150dB Adaptive WDR |
| IR / White Light Range | ~40m (2.8-12mm lens), ~60m (8-32mm lens); IR wavelength ~850nm |
| DORI – 2.8-12mm Lens | Detect 152m, Observe 60m, Recognize 30m, Identify 15m |
| DORI – 8-32mm Lens | Detect 400m, Observe 158.7m, Recognize 80m, Identify 40m |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Video Streams | Up to 5 simultaneous streams |
| AI Analytics | Multi-target detection (human/vehicle), face capture, face library comparison (up to 10 libraries), people counting, queue management, heat mapping, region detection |
| Face Detection Capacity | Up to ~120 faces per frame detected simultaneously |
| Audio | 2 built-in microphones and built-in speaker |
| Local Storage | microSD / microSDHC / microSDXC up to 1TB |
| Weather / Impact Rating | IP67, IK10, optional NEMA 4X (Y variant) |
| Operating Temperature | -40°C to +65°C |
| Power Supply | 12VDC or PoE (802.3at Type 2, Class 4); max ~22.4W |
No downloads available for this product.
