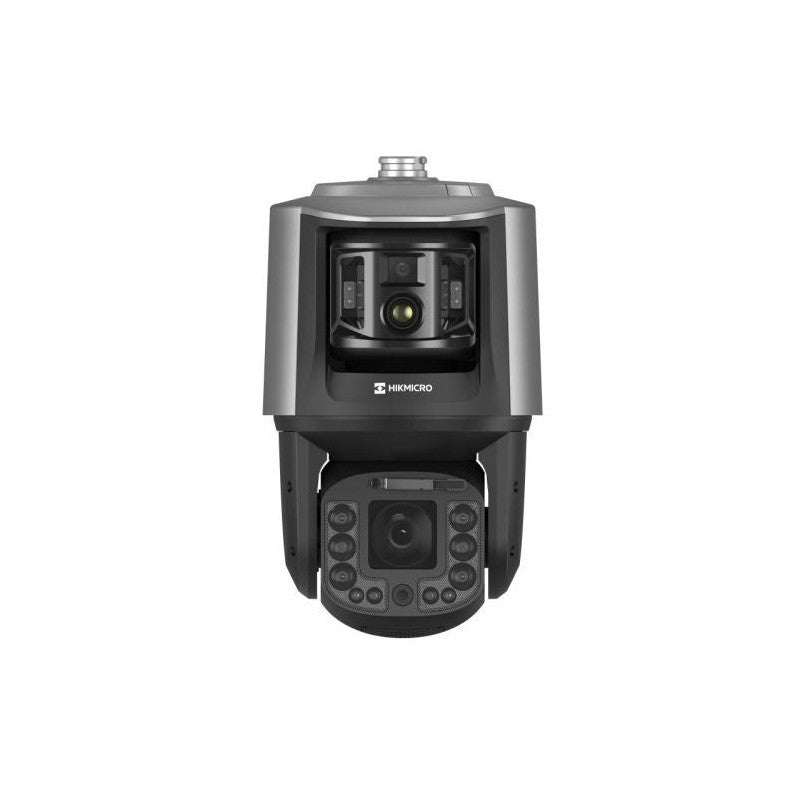

Hikvision Hm-tx3840-15/g0/t1 Thermal Tandemvu Smart Linkage Tracking System With 4MP 40× Ptz, 384×288 Thermal Imaging & 250m White Light
SKU: HMTX384015G0T1
$8,765.43
The Hikvision HM-TX3840-15/G0/T1 is a Thermal TandemVu Smart Linkage Tracking System engineered for large outdoor sites requiring both early thermal detection and detailed visual confirmation. By integrating a 384×288 thermal imaging channel with a 4MP 40× optical PTZ, this unit provides coordinated bi-spectrum monitoring for industrial facilities, critical infrastructure, and large perimeter zones.
Key Features
- 384×288 thermal imaging with a 15mm lens for long-range heat signature detection in darkness, glare, or smoke
- 4MP optical PTZ channel featuring 40× optical zoom for detailed inspection and verification of distant targets
- Smart linkage tracking that automatically directs the optical PTZ to follow events triggered by the thermal sensor
- 250m white light illumination range to support visible-light monitoring in low-light or unlit outdoor environments
- Bi-spectrum TandemVu design allowing thermal and optical channels to operate as a single coordinated monitoring solution
- Optimized for professional installations in ports, logistics yards, substations, and industrial perimeters
Technical Specifications
| Model | HM-TX3840-15/G0/T1 |
| Product Type | Thermal TandemVu Smart Linkage Tracking System |
| Design | Bi-spectrum TandemVu – thermal detection unit with linked optical PTZ channel |
| Thermal Imaging Resolution | 384×288 |
| Thermal Lens | 15mm |
| Optical Camera Type | 4MP optical PTZ |
| Optical Zoom | 40× optical zoom |
| Tracking Function | Smart linkage tracking – thermal detection linked to optical PTZ response |
| Supplemental Illumination | 250m white light |
| Primary Applications | Perimeter intrusion detection, industrial site monitoring, critical infrastructure, logistics yards, ports, utilities and long-range event verification |
| Typical Installation Locations | Fence lines, gates, restricted boundaries, warehouses, substations, remote facilities, storage yards, loading docks and large outdoor security zones |
| Installation Type | Fixed thermal unit with linked optical PTZ channel – planned professional installation |
| Lead Time | 70 days – not a stocked item, must be factored into project planning |
| Pre-Installation Requirements | Confirm thermal detection distance, 15mm lens field of view, PTZ coverage zone, mounting height, white light suitability, recorder compatibility, network bandwidth and alarm zone configuration |
