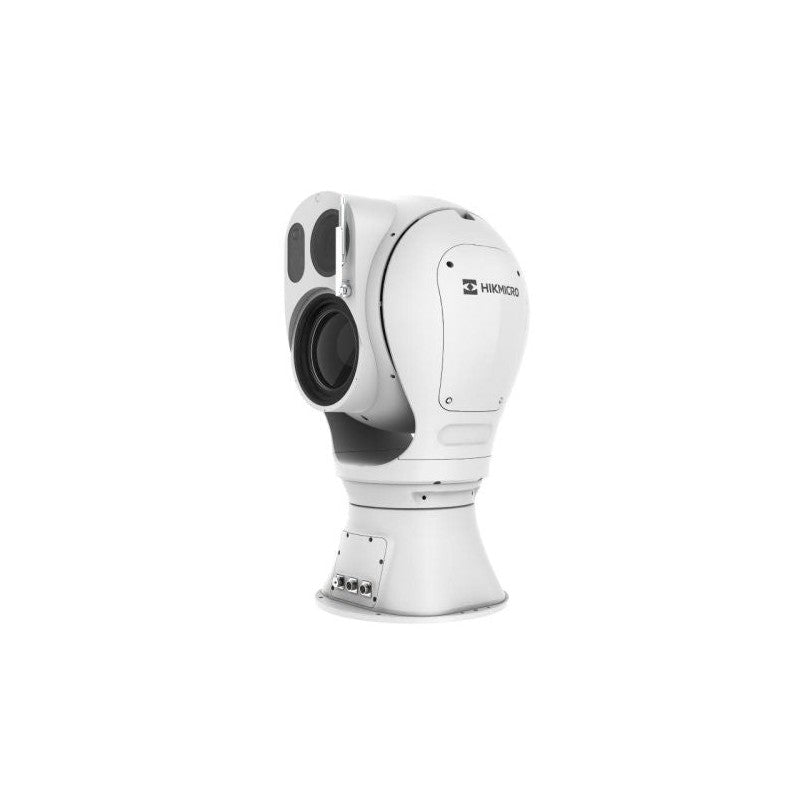

Hikvision Hm‑td95c8‑150ze4fl/w – Thermal & Optical Bi‑spectrum Sphere PTZ Camera With Smart Analytics
SKU: HMTD95C8150ZE4FLW
$197,663.10
The Hikvision HM-TD95C8-150ZE4FL/W is a bi-spectrum sphere PTZ camera designed for large-scale perimeter surveillance and critical infrastructure protection. It integrates a high-resolution 1280×1024 thermal sensor with a 4MP optical module and 80x optical zoom to deliver simultaneous thermal and visual awareness in environments where conventional cameras are ineffective.
Key Features
- 1280×1024 VOx uncooled FPA thermal sensor with 25 mK NETD for high-contrast detection in darkness, fog, or camouflage conditions
- 4MP optical module with 10-800mm focal range and 80x optical zoom, supported by optical and gyroscope-enhanced electronic image stabilisation
- 30-150mm thermal focal length enabling long-range thermal imaging across extensive perimeters
- Deep-learning analytics for human and vehicle classification, including fire and smoke detection at distances up to 12 km
- 360-degree continuous pan capability with support for up to 300 presets for autonomous, unattended operation
- NEMA-4X anti-corrosion housing with IP66 rating and a smart lens wiper for durability in coastal, industrial, and harsh outdoor environments
- Built-in speaker and microphone enabling two-way audio for live communication and automated alerting
Technical Specifications
| Thermal Sensor | VOx uncooled FPA, 1280×1024 resolution, 12 micrometre pixel pitch |
| Thermal NETD | 25 mK at 25 degrees Celsius (F# = 1.0) |
| Thermal Focal Length | 30-150 mm, semi-auto and manual focus |
| Thermal Field of View | 28.7×23.2 degrees to 5.9×4.7 degrees |
| Thermal Digital Zoom | 2x, 4x, 8x |
| Thermal Image Processing | AGC, DDE, 3D DNR; 10-year detector guarantee |
| Optical Sensor | 1/1.8-inch progressive scan CMOS, 4MP (2688×1520) |
| Optical Low Light Sensitivity | Colour: 0.005 Lux; B/W: 0.0005 Lux (F3.5, AGC ON) |
| Optical Focal Length | 10-800 mm (80x optical zoom) |
| Optical Field of View | 31.2×17.8 degrees to 0.5×0.3 degrees |
| Optical Digital Zoom | Up to 16x |
| Optical Image Enhancements | 120 dB WDR, optical defog, OIS, gyroscope-enhanced EIS, picture-in-picture thermal overlay |
| Pan Range and Speed | 360-degree endless rotation at up to 120 degrees per second |
| Tilt Range and Speed | -45 to +45 degrees with auto-flip, up to 80 degrees per second |
| Presets and Patrols | 300 presets (273 configurable), 8 patrols with 256 presets each, 4 pattern scans up to 10 minutes |
| Smart Analytics | Line crossing, intrusion, region entrance/exit with human and vehicle classification; fire and smoke detection up to 12 km |
| Alarm Interface | 7 alarm inputs, 2 alarm outputs |
| Audio | Built-in speaker and microphone; 1 audio input, 1 audio output |
| Protection Rating | IP66, NEMA-4X anti-corrosion housing, smart wiper for optical lens |
